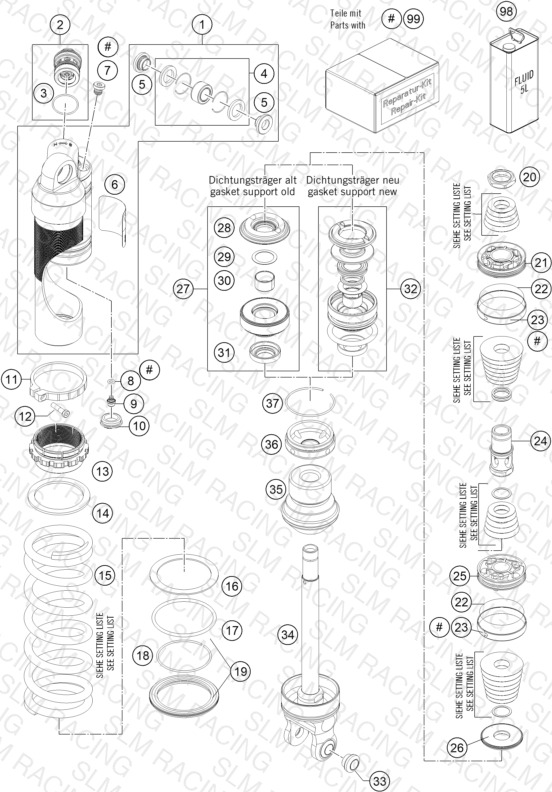

SHOCK ABSORBER DISASSEMBLED
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50180833SA2 MONOSHOCK UPPER PART CPL. | MONOSHOCK UPPER PART CPL. | 1 | — | Obsolete | View Details |
| 2 | 50180213S10 DCC-COMPR.DAMP.CONTROL CPL. 07 | DCC-COMPR.DAMP.CONTROL CPL. 07 | 1 | — | Obsolete | View Details |
| 3 | 50180218 O-ring 25x1,5 Viton70 | O-ring 25x1,5 Viton70 | 1 | $2.41 | Available | 1 |
| 4 | R12012 Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 1 | $42.01 | Available | 1 |
| 5 | 46180007 Distance bush 12x15/18/24,5x10 | Distance bush 12x15/18/24,5x10 | 2 | $20.89 | Available | 2 |
| 6 | 52000085 Sticker WP PDS 62x100 | Sticker WP PDS 62x100 | 1 | $19.68 | Backorder — Restocking | 1 |
| 7 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | $2.85 | Available | 1 |
| 8 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | $0.76 | Available | 1 |
| 9 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | $2.19 | Available | 1 |
| 10 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | $3.62 | Available | 1 |
| 11 | 50180937 Clamp d64 | Clamp d64 | 1 | — | Obsolete | View Details |
| 12 | 14460042 HS cylinder-head screw M5x20 D | HS cylinder-head screw M5x20 D | 1 | $1.20 | Available | 1 |
| 13 | 50180938 Spring retainer M56x2x63,8x33 | Spring retainer M56x2x63,8x33 | 1 | $41.24 | Available | 1 |
| 14 | 50180965 Intermediate washer spring 64, | Intermediate washer spring 64, | 1 | $12.75 | Available | 1 |
| 15 | 91210053S SPRING 250 63N/MM ORANGE | SPRING 250 63N/MM ORANGE | — | — | Obsolete | View Details |
| 15 | 91210054S SPRING 250 66N/MM ORANGE | SPRING 250 66N/MM ORANGE | — | — | Obsolete | View Details |
| 15 | 91210068S SPRING 250 69N/MM ORANGE | SPRING 250 69N/MM ORANGE | — | $177.53 | Available | 1 |
| 16 | 50180114 Intermediate washer spring 61, | Intermediate washer spring 61, | 1 | $3.62 | Available | 1 |
| 17 | 50180352 O-ring 66,27x1,78 Viton70 | O-ring 66,27x1,78 Viton70 | 1 | $3.62 | Available | 1 |
| 18 | 50180273 Round-wire snap ring 58,5x2 | Round-wire snap ring 58,5x2 | 1 | $2.41 | Available | 1 |
| 19 | 50180463S SPRING RET. D=80 W. O-RING 05 | SPRING RET. D=80 W. O-RING 05 | 1 | — | Obsolete | View Details |
| 20 | 50180627 PISTON ROD NUT M20X1 | PISTON ROD NUT M20X1 | 1 | $89.53 | Available | 1 |
| 21 | 50180675 PISTON D=20 | PISTON D=20 | 1 | — | Obsolete | View Details |
| 22 | 50180099 O-ring 44x,17x1,78 Viton70 | O-ring 44x,17x1,78 Viton70 | 2 | $2.41 | Available | 2 |
| 23 | 50180135 Piston ring 47,95x49,95x8 | Piston ring 47,95x49,95x8 | 2 | $20.89 | Available | 2 |
| 24 | 50180973 SUPPORT D20 M20X1 L51,3 PDS | SUPPORT D20 M20X1 L51,3 PDS | 1 | — | Obsolete | View Details |
| 25 | 50180197 Piston 16,05x49,6x13,5 4,5/7 | Piston 16,05x49,6x13,5 4,5/7 | 1 | $53.67 | Available | 1 |
| 26 | 50180970 Rebound disc 16x43x4 h0 | Rebound disc 16x43x4 h0 | 1 | $16.82 | Available | 1 |
| 27 | 50180953S1 ADAPTOR CPL. D=50 H=25 14 | ADAPTOR CPL. D=50 H=25 14 | 1 | $88.10 | Available | 1 |
| 28 | 50180993 Mono seal 18x51x11,1 SKF | Mono seal 18x51x11,1 SKF | 1 | $88.10 | Available | 1 |
| 29 | 50180995 SHIM D25,30 X D19 X T0,4 14 | SHIM D25,30 X D19 X T0,4 14 | 1 | — | Obsolete | View Details |
| 30 | 46180119 Guide bushing 18x20x12 | Guide bushing 18x20x12 | 1 | $8.99 | Available | 1 |
| 31 | 50180994 Dirt scarper SKF 18mm red | Dirt scarper SKF 18mm red | 1 | — | Obsolete | View Details |
| 32 | 50180603S Sealholder 50x28 cpl. | Sealholder 50x28 cpl. | 1 | $88.10 | Available | 1 |
| 33 | 50180105 Threaded bush M12 d20 | Threaded bush M12 d20 | 1 | $18.25 | Available | 1 |
| 34 | 50180512SA4 SHOCK ABS. LOWER PART CPL. 12 | SHOCK ABS. LOWER PART CPL. 12 | 1 | — | Obsolete | View Details |
| 35 | 50180600 Rubber pad 17x58x59 | Rubber pad 17x58x59 | 1 | $49.05 | Available | 1 |
| 36 | 50180626 Cover 50x6 h16 | Cover 50x6 h16 | 1 | $53.89 | Available | 1 |
| 37 | 50180126 Round-wire snap ring 53x1,75 | Round-wire snap ring 53x1,75 | 1 | $1.20 | Available | 1 |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | $175.99 | Available | 1 |
| 99 | R12024 REPAIR KIT | REPAIR KIT | 1 | — | Obsolete | View Details |
