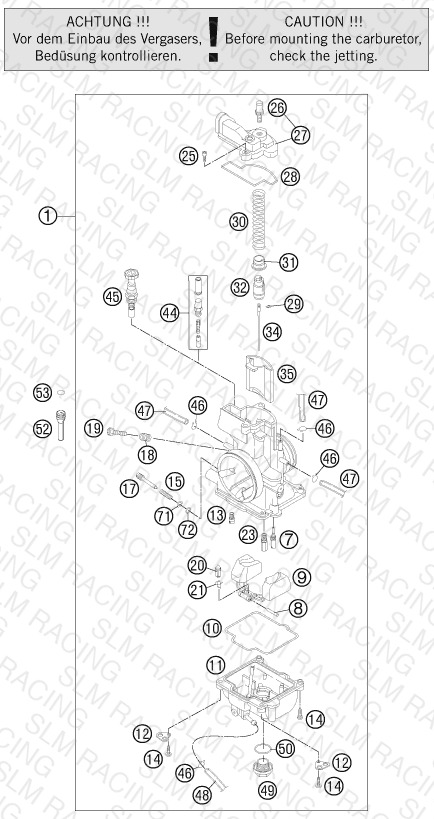

CARBURETOR
Parts (66)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 52331001844 CARB. KEIH. PWK 36S AG FK20 08 | CARB. KEIH. PWK 36S AG FK20 08 ONLY FOR AU | — | $589.48 | Available | 1 |
| 1 | 52331101144 CARB. KEIH. PWK 36S AG 12 | CARB. KEIH. PWK 36S AG 12 ONLY FOR EU | — | $589.48 | Available | 1 |
| 1 | 52331101244 CARB. KEIH. PWK 36S AG BM9 13 | CARB. KEIH. PWK 36S AG BM9 13 ONLY FOR US | — | $589.48 | Available | 1 |
| 7 | 54531607035 IDLE JET 35 KEIHIN | IDLE JET 35 KEIHIN | — | $14.95 | Available | 1 |
| 7 | 54531607038 IDLE JET 38 KEIHIN | IDLE JET 38 KEIHIN | — | $14.95 | Available | 1 |
| 7 | 54531607040 IDLE JET 40 KEIHIN | IDLE JET 40 KEIHIN | — | $14.84 | Available | 1 |
| 7 | 54531607042 IDLE JET 42 KEIHIN | IDLE JET 42 KEIHIN | — | $14.95 | Available | 1 |
| 7 | 54531607045 IDLE JET 45 KEIHIN | IDLE JET 45 KEIHIN | — | $14.73 | Available | 1 |
| 7 | 54531607048 IDLE JET 48 KEIHIN | IDLE JET 48 KEIHIN | — | $14.84 | Available | 1 |
| 7 | 54531607050 IDLE JET 50 KEIHIN | IDLE JET 50 KEIHIN | — | $14.73 | Available | 1 |
| 7 | 54831007135 IDLE JET SIZE 35X35 KEIHIN | IDLE JET SIZE 35X35 KEIHIN | — | $18.25 | Available | 1 |
| 8 | 57331008000 ARM PIN FLOAT | ARM PIN FLOAT | 1 | $2.99 | Available | 1 |
| 9 | 57331009000 FLOAT CPL. | FLOAT CPL. | 1 | $70.17 | Available | 1 |
| 10 | 54831010000 GASKET FLOAT CHAMBER | GASKET FLOAT CHAMBER | 1 | $12.53 | Available | 1 |
| 11 | 54831011000 FLOAT CHAMBER PWK38-S AG | FLOAT CHAMBER PWK38-S AG | 1 | $161.91 | Available | 1 |
| 12 | 54531612100 RETAINING PLATE FOR BLEEDER | RETAINING PLATE FOR BLEEDER | 2 | $3.99 | Available | 2 |
| 13 | 54831051050 STARTER JET 50 KEIHIN | STARTER JET 50 KEIHIN | — | $14.73 | Available | 1 |
| 13 | 54831051085 STARTER JET 85 KEIHIN | STARTER JET 85 KEIHIN | 1 | $14.84 | Available | 1 |
| 14 | 0016040163 HH COLLAR SCREW M 4X16 WS=6 | HH COLLAR SCREW M 4X16 WS=6 | 4 | $2.99 | Available | 4 |
| 15 | 54531615000 SPRING FOR ADJUSTMENT SCREW | SPRING FOR ADJUSTMENT SCREW | 1 | $3.99 | Available | 1 |
| 17 | 54831017000 STOP SCREW CPL. | STOP SCREW CPL. | 1 | $9.89 | Available | 1 |
| 18 | 54631118000 SPRING | SPRING | 1 | $11.54 | Available | 1 |
| 19 | 54631219100 ADJUSTMENT SCREW M 5 | ADJUSTMENT SCREW M 5 | 1 | $14.99 | Available | 1 |
| 20 | 54631220000 FLOAT NEEDLE | FLOAT NEEDLE | 1 | $36.95 | Available | 1 |
| 21 | 54531621000 CLAMP | CLAMP | 1 | $4.99 | Available | 1 |
| 23 | 54531623100 MAIN JET GR 100 | MAIN JET GR 100 | — | $13.08 | Available | 1 |
| 23 | 54531623150 MAIN JET 150 KEIHIN | MAIN JET 150 KEIHIN | 1 | $14.84 | Available | 1 |
| 23 | 54531623152 MAIN JET 152 KEIHIN | MAIN JET 152 KEIHIN | — | $14.84 | Available | 1 |
| 23 | 54531623155 MAIN JET 155 KEIHIN | MAIN JET 155 KEIHIN | — | $14.84 | Available | 1 |
| 23 | 54531623158 MAIN JET 158 KEIHIN | MAIN JET 158 KEIHIN | — | $14.95 | Available | 1 |
| 23 | 54531623160 MAIN JET 160 KEIHIN | MAIN JET 160 KEIHIN | — | $15.39 | Available | 1 |
| 23 | 54531623162 MAIN JET 162 KEIHIN | MAIN JET 162 KEIHIN | — | $14.95 | Available | 1 |
| 23 | 54531623165 MAIN JET 165 KEIHIN | MAIN JET 165 KEIHIN | 1 | $15.17 | Available | 1 |
| 23 | 54531623168 MAIN JET 168 KEIHIN | MAIN JET 168 KEIHIN | — | $15.39 | Available | 1 |
| 23 | 54531623170 MAIN JET 170 KEIHIN | MAIN JET 170 KEIHIN | — | $15.06 | Available | 1 |
| 23 | 54531623172 MAIN JET 172 KEIHIN | MAIN JET 172 KEIHIN | — | $15.06 | Available | 1 |
| 23 | 54531623175 MAIN JET 175 KEIHIN | MAIN JET 175 KEIHIN | — | $15.06 | Available | 1 |
| 25 | 54831025000 SPECIAL-AH-SCREW M 4X12 | SPECIAL-AH-SCREW M 4X12 | 2 | $4.99 | Available | 2 |
| 26 | 54831029000 THROTTLE CALBE HOLDER M6X0,75 | THROTTLE CALBE HOLDER M6X0,75 | 1 | $16.49 | Available | 1 |
| 27 | 54831127000 CARBURETOR COVER PWK36-S AG | CARBURETOR COVER PWK36-S AG | 1 | $63.46 | Available | 1 |
| 28 | 54831028000 GASKET FOR CARBURETOR COVER | GASKET FOR CARBURETOR COVER | 1 | $9.89 | Available | 1 |
| 29 | 54531629000 CLIP FOR JET NEEDLE | CLIP FOR JET NEEDLE | 1 | $3.99 | Available | 1 |
| 30 | 54831030000 SLIDING SPRING | SLIDING SPRING | 1 | $13.52 | Available | 1 |
| 31 | 54631231000 SPRING CAP | SPRING CAP | 1 | $12.53 | Available | 1 |
| 32 | 54631232000 NIPPLE | NIPPLE | 1 | $45.64 | Available | 1 |
| 34 | 54531636030 JET NEEDLE NPRH KEIHIN | JET NEEDLE NPRH KEIHIN | — | $19.46 | Out of Stock | Notify Me |
| 34 | 54831135000 JET NEEDLE KEIHIN N1EE 06 | JET NEEDLE KEIHIN N1EE 06 | — | $16.27 | Available | 1 |
| 34 | 54831135100 JET NEEDLE KEIHIN N1EF 06 | JET NEEDLE KEIHIN N1EF 06 | — | $17.26 | Available | 1 |
| 34 | 54831135200 JET NEEDLE KEIHIN N1EG 06 | JET NEEDLE KEIHIN N1EG 06 | — | $16.60 | Available | 1 |
| 34 | 54831135300 JET NEEDLE KEIHIN N1EH 06 | JET NEEDLE KEIHIN N1EH 06 | — | $17.26 | Available | 1 |
| 34 | 54831135500 JET NEEDLE KEIHIN N1EI 07 | JET NEEDLE KEIHIN N1EI 07 | — | $17.26 | Available | 1 |
| 34 | 54831135600 JET NEEDLE KEIHIN N1EJ 07 | JET NEEDLE KEIHIN N1EJ 07 | — | $17.15 | Available | 1 |
| 34 | 54831135700 JET NEEDLE KEIHIN N1EK 07 | JET NEEDLE KEIHIN N1EK 07 | — | $17.15 | Available | 1 |
| 35 | 54631035000 THROTTLE VALVE 7 FOR 38 PJ '00 | THROTTLE VALVE 7 FOR 38 PJ '00 | 1 | $271.58 | Available | 1 |
| 44 | 58502096044 CONNECT. COLD START CABLE CPL. | CONNECT. COLD START CABLE CPL. ONLY FOR EU | 1 | $35.19 | Out of Stock | Notify Me |
| 45 | 54631245000 STARTER PISTON CPL. | STARTER PISTON CPL. | 1 | $105.81 | Available | 1 |
| 46 | 54531696000 Clamp 6mm | Clamp 6mm | 5 | $3.99 | Available | 5 |
| 47 | 31007007101 PVC-HOSE 4X6MM | PVC-HOSE 4X6MM | — | $4.99 | Available | 1 |
| 48 | 52031137001 PVC-HOSE 3X5MM | PVC-HOSE 3X5MM | — | $6.15 | Available | 1 |
| 49 | 54531699000 PLUG M 18X1 | PLUG M 18X1 | 1 | $23.64 | Available | 1 |
| 50 | 0770180230 O-RING 18,00X2,30 NBR 70 | O-RING 18,00X2,30 NBR 70 | 1 | $3.99 | Available | 1 |
| 52 | 52331029000 SLIDE STOP L=36 08 | SLIDE STOP L=36 08 | — | — | Obsolete | View Details |
| 52 | 52331029100 SLIDE STOP L=33 11 | SLIDE STOP L=33 11 FOR EU | — | $9.01 | Out of Stock | Notify Me |
| 53 | 0770060018 O-RING 6,07X1,78 FPM75 | O-RING 6,07X1,78 FPM75 | — | $2.99 | Available | 1 |
| 71 | 54831071000 WASHER ADJUSTING SCREW | WASHER ADJUSTING SCREW | 1 | $2.99 | Available | 1 |
| 72 | 54831072000 O-RING ADJUSTING SCREW | O-RING ADJUSTING SCREW | 1 | $2.99 | Available | 1 |
