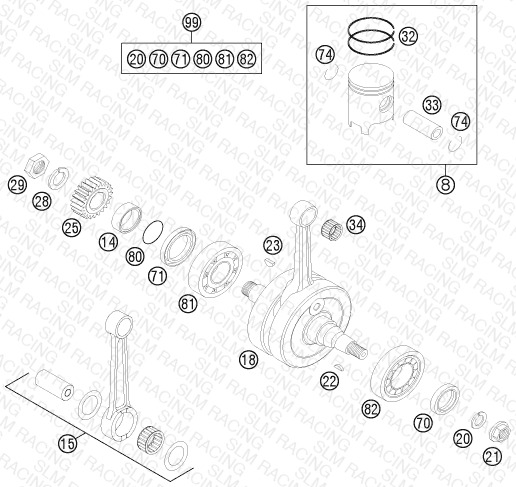

CRANKSHAFT, PISTON
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 8 | 51530007300 I PISTON I CPL. 144 09 | PISTON I CPL. 144 09 | 1 | $296.77 | Available | |
| 8 | 51530007300 II PISTON II CPL. 144 09 | PISTON II CPL. 144 09 | 1 | $295.67 | Available | |
| 14 | 54633014100 SPACER BUSHING 12MM | SPACER BUSHING 12MM | 1 | $24.63 | Available | 1 |
| 15 | 50330015100 CON.ROD REPAIR KIT 125'07 | CON.ROD REPAIR KIT 125'07 | 1 | $432.95 | Available | 1 |
| 18 | 51530018000 CRANKSHAFT CPL. 144 SX 2007 | CRANKSHAFT CPL. 144 SX 2007 | 1 | $923.44 | Available | 1 |
| 20 | 50230029012 LOCKING RING VSK 12 | LOCKING RING VSK 12 | 1 | $2.99 | Available | 1 |
| 21 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | $2.99 | Available | 1 |
| 22 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 23 | 6946005 WOODRUFF KEY 5X6,5 HARDED | WOODRUFF KEY 5X6,5 HARDED | 1 | $2.99 | Available | 1 |
| 25 | 50332023123 PRIMARY PINION 23-T 125/200 06 | PRIMARY PINION 23-T 125/200 06 | 1 | $91.07 | Available | 1 |
| 28 | 50230029016 LOCKING RING VSK 16 | LOCKING RING VSK 16 | 1 | $2.99 | Available | 1 |
| 29 | 50330029000 HEXAGON NUT M 16 X 1,5 - L/S | HEXAGON NUT M 16 X 1,5 - L/S | 1 | $11.76 | Available | 1 |
| 32 | 51530032000 TRAPEZOID RING 144 08 | TRAPEZOID RING 144 08 | — | $49.71 | Available | 1 |
| 33 | 51530033100 PISTON PIN 150 SX 08 | PISTON PIN 150 SX 08 | 1 | — | Obsolete | View Details |
| 34 | 51030034000 NEEDLE BEARING KBK 15X19X20 | NEEDLE BEARING KBK 15X19X20 | 1 | $29.47 | Available | 1 |
| 70 | 0760253570 SHAFT SEAL RING 25X35X7 BTSL | SHAFT SEAL RING 25X35X7 BTSL | 1 | $20.23 | Available | 1 |
| 71 | 0760324564 SHAFT SEAL RING 32X45X6,5 BT | SHAFT SEAL RING 32X45X6,5 BT | 1 | $14.51 | Available | 1 |
| 74 | 50330074500 WIRE LOCK RING 15X1 | WIRE LOCK RING 15X1 | 2 | $2.99 | Available | 2 |
| 80 | 0770250020 O-RING 25,00X2,00 NBR 70 | O-RING 25,00X2,00 NBR 70 | 1 | $3.99 | Available | 1 |
| 81 | 0625063055 BALL BEARING 6305 JR2 CS36 | BALL BEARING 6305 JR2 CS36 | 1 | $50.81 | Available | 1 |
| 82 | 50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46 | CYL.ROLLER BEAR.NJ206 ET2XCS46 | 1 | $97.89 | Available | 1 |
| 99 | 00050002300 CRANKSHAFT REP. KIT 125-200 | CRANKSHAFT REP. KIT 125-200 | — | $126.27 | Available | 1 |
