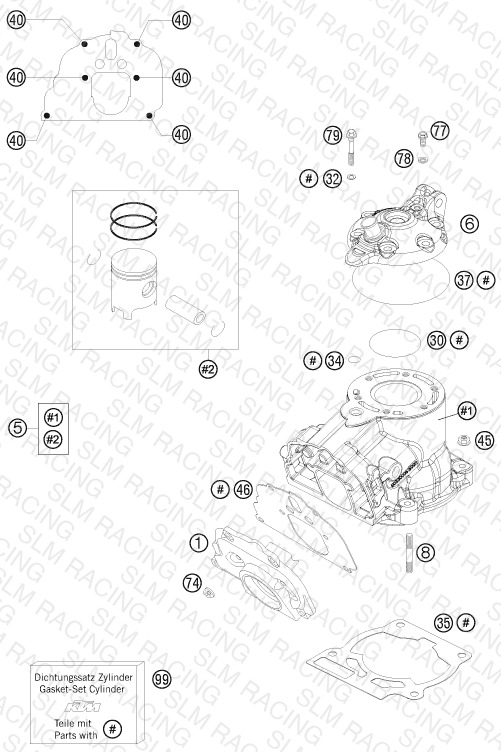

CYLINDER, CYLINDER HEAD
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50337001200 INTERMEDIATE FLANGE 125 06 | INTERMEDIATE FLANGE 125 06 | 1 | — | Check availability | |
| 5 | 51530038200 CYLINDER AND PISTON 150 | CYLINDER AND PISTON 150 | 1 | — | Check availability | View Details |
| 6 | 51530006100 CYLINDER HEAD 144 09 | CYLINDER HEAD 144 09 | 1 | — | Check availability | View Details |
| 8 | 0835080276 STUD DIN0835-M 8X27 | STUD DIN0835-M 8X27 | 4 | — | Check availability | |
| 30 | 0770062020 O-RING 62,00X2,00 VITON | O-RING 62,00X2,00 VITON | 1 | — | Check availability | |
| 32 | 50230032010 CU-SEAL RING 7,3 X 12 X 0,5 | CU-SEAL RING 7,3 X 12 X 0,5 | 6 | — | Check availability | View Details |
| 34 | 0770012021 O-RING 12X2 VITON GREEN | O-RING 12X2 VITON GREEN | 1 | — | Check availability | |
| 35 | 50330035020 CYLINDER BASE GASKET 0,20MM | CYLINDER BASE GASKET 0,20MM | 0 | — | Check availability | |
| 35 | 50330035025 CYLINDER BASE GASKET 0,25MM | CYLINDER BASE GASKET 0,25MM | 0 | — | Check availability | |
| 35 | 50330035040 CYLINDER BASE GASKET 0,40MM | CYLINDER BASE GASKET 0,40MM | 0 | — | Check availability | |
| 35 | 50330035050 CYLINDER BASE GASKET 0,50MM | CYLINDER BASE GASKET 0,50MM | 0 | — | Check availability | |
| 35 | 50330035075 CYLINDER BASE GASKET 0,75MM | CYLINDER BASE GASKET 0,75MM | 0 | — | Check availability | |
| 37 | 0770086020 O-RING 86X2 VITON75SHORE GREEN | O-RING 86X2 VITON75SHORE GREEN | 1 | — | Check availability | |
| 40 | 0014050203 HH COLLAR SCREW M 5X20 WS=6 | HH COLLAR SCREW M 5X20 WS=6 | 6 | — | Check availability | |
| 45 | 50330045000 HH COLLAR NUT M 8 WS=12 | HH COLLAR NUT M 8 WS=12 | 4 | — | Check availability | |
| 46 | 50337046200 INTERMED. GASKET 125 06 | INTERMED. GASKET 125 06 | 1 | — | Check availability | View Details |
| 74 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 77 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 1 | — | Check availability | |
| 78 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 79 | 50330079000 CYL. HEAD BOLT M 7X30 WS=10 | CYL. HEAD BOLT M 7X30 WS=10 | 6 | — | Check availability | View Details |
| 99 | 50330097100 CYLINDER GASKET SET 125/200 07 | CYLINDER GASKET SET 125/200 07 | 0 | — | Check availability |
