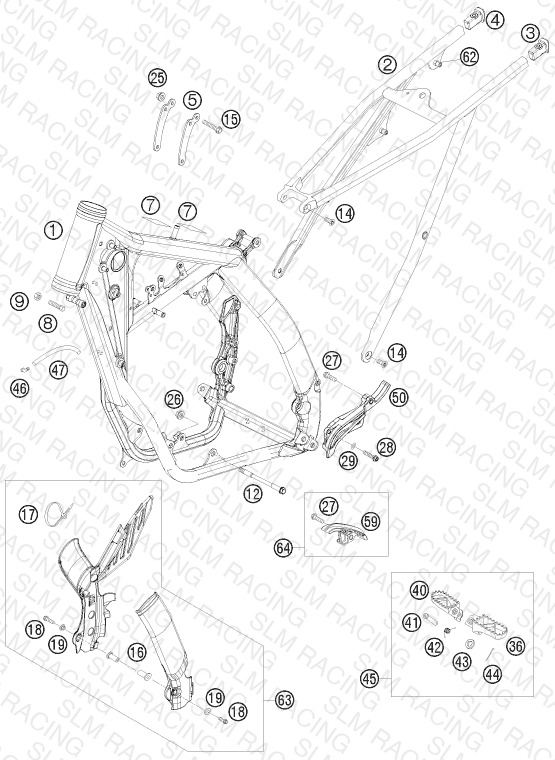

FRAME
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 5030340130033 FRAME BLACK M. ''BA10'' | FRAME BLACK M. ''BA10'' | 1 | — | Obsolete | View Details |
| 2 | 77303002000 SUB FRAME SX ''Q7'' 07 | SUB FRAME SX ''Q7'' 07 | 1 | $446.81 | Available | 1 |
| 3 | 78003002010 SUB FRAME APPLICAT. LEFT 08 | SUB FRAME APPLICAT. LEFT 08 | 1 | $38.36 | Available | 1 |
| 4 | 78003002020 SUB FRAME APPLICATION R/S 08 | SUB FRAME APPLICATION R/S 08 | 1 | $35.94 | Available | 1 |
| 5 | 50303413000 REINFORCING B. 125 SX 07 | REINFORCING B. 125 SX 07 | 2 | $14.95 | Available | 2 |
| 7 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 | ADH. FOIL TRANSP. 80X80 MM 04 | 2 | $2.99 | Available | 2 |
| 8 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | $3.99 | Available | 2 |
| 9 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 12 | 54603013000 engine brac.scr. M10x105 WS13 | engine brac.scr. M10x105 WS13 | 2 | $14.29 | Available | 2 |
| 14 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 2 | $2.99 | Available | 2 |
| 15 | 56530079000 HH COLLAR SCREW M 8X44 WS13 | HH COLLAR SCREW M 8X44 WS13 | 3 | $3.99 | Available | 3 |
| 16 | 54803092050 BLIND PLUG-IN NUT M5 WN 22A 03 | BLIND PLUG-IN NUT M5 WN 22A 03 | 2 | $6.15 | Available | 2 |
| 17 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 3 | $2.99 | Available | 3 |
| 18 | 0738050250 COU.SUNK SCR. AH ISO7380 M5X25 | COU.SUNK SCR. AH ISO7380 M5X25 | 2 | $0.99 | Available | 2 |
| 19 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 25 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 3 | $3.99 | Available | 3 |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 27 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | $3.62 | Available | 2 |
| 28 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 29 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 36 | 59003040250 FOOT PEG L/S SILVER 02 | FOOT PEG L/S SILVER 02 | 1 | $51.36 | Available | 1 |
| 40 | 59003041250 FOOT PEG R/S SILVER 02 | FOOT PEG R/S SILVER 02 | 1 | $51.36 | Available | 1 |
| 41 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 45 | 5030314013390 FOOTPEG L.+R. CPL. 03 | FOOTPEG L.+R. CPL. 03 | 1 | $197.00 | Available | 1 |
| 46 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | $6.15 | Available | 1 |
| 47 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | — | $7.14 | Available | 1 |
| 50 | 54803096000 SPROCKET COVER 250 SX 07 | SPROCKET COVER 250 SX 07 | 1 | $13.74 | Available | 1 |
| 59 | 77303053000 Chain sliding piece, bottom | Chain sliding piece, bottom | 1 | $11.10 | Available | 1 |
| 62 | 77303139000 BLIND RIVET NUT EM6-60LF/HX | BLIND RIVET NUT EM6-60LF/HX | 2 | $4.99 | Available | 2 |
| 63 | 77303094100 PLASTIC FRAME PROTECTION SET | PLASTIC FRAME PROTECTION SET | 1 | $33.99 | Available | 1 |
| 64 | 77303053010 CHAIN SLIDING KIT BELOW CPL07 | CHAIN SLIDING KIT BELOW CPL07 | 1 | $13.52 | Available | 1 |
