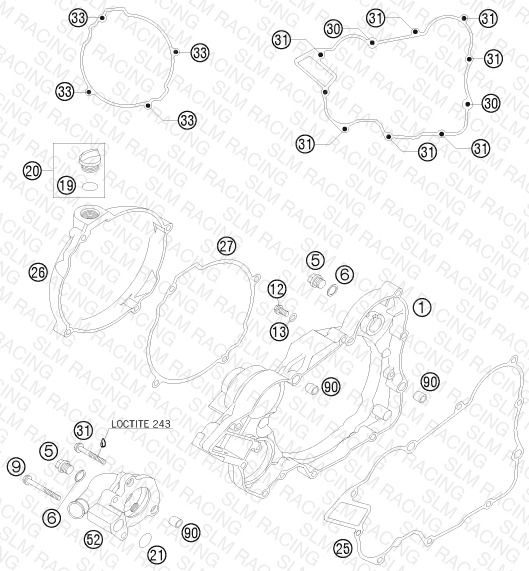

CLUTCH COVER

← CLUTCH COOLING SYSTEM →

Parts (17)

#	Part Number	Description	Qty	Price	Status
6	0603100141 sealing ring DIN 7603 10x14x1	sealing ring DIN 7603 10x14x1	2	—	Check availability
9	0025060506 HH collar screw M6x50 TX30	HH collar screw M6x50 TX30	2	—	Check availability
12	0025060126 HH collar screw M6x12 TX30	HH collar screw M6x12 TX30	1	—	Check availability
1	5033000114415 CLUTCH COVER CPL. 125/200 09	CLUTCH COVER CPL. 125/200 09	1	—	Check availability
5	0910100003 PLUG DIN0910-M 10X1	PLUG DIN0910-M 10X1	2	—	Check availability
13	0603061001 CU-SEAL RING DIN7603-6X10X1	CU-SEAL RING DIN7603-6X10X1	1	—	Check availability
20	58030120000 OIL FILLER CAP M24x3 W. O-R	OIL FILLER CAP M24x3 W. O-R	1	—	Check availability	View Details
21	0770160030 O-RING 16,00X3,00 NBR 70	O-RING 16,00X3,00 NBR 70	1	—	Check availability
25	50330025000 CLUTCH COVER GASKET 0,5MM	CLUTCH COVER GASKET 0,5MM	1	—	Check availability
26	5033002610015 CLUTCH OUTSIDE COVER	CLUTCH OUTSIDE COVER	1	—	Check availability
27	50330027000 CLUTCH OUTS.COVER GASKET 1MM	CLUTCH OUTS.COVER GASKET 1MM	1	—	Check availability
30	0025060406 HH collar screw M6x40 TX30	HH collar screw M6x40 TX30	2	—	Check availability
31	0025060356 HH collar screw M6x35 TX30	HH collar screw M6x35 TX30	9	—	Check availability
33	0025060306 HH collar screw M6x30 TX30	HH collar screw M6x30 TX30	4	—	Check availability
52	50335052000 WATER PUMP COVER 125/200 98	WATER PUMP COVER 125/200 98	1	—	Check availability	View Details
90	49030090000 DOWEL 9,8 X 7 X 10	DOWEL 9,8 X 7 X 10	4	—	Check availability	View Details
19	0770191015 O-RING 19,00X3,00 NBR	O-RING 19,00X3,00 NBR	1	—	Check availability
