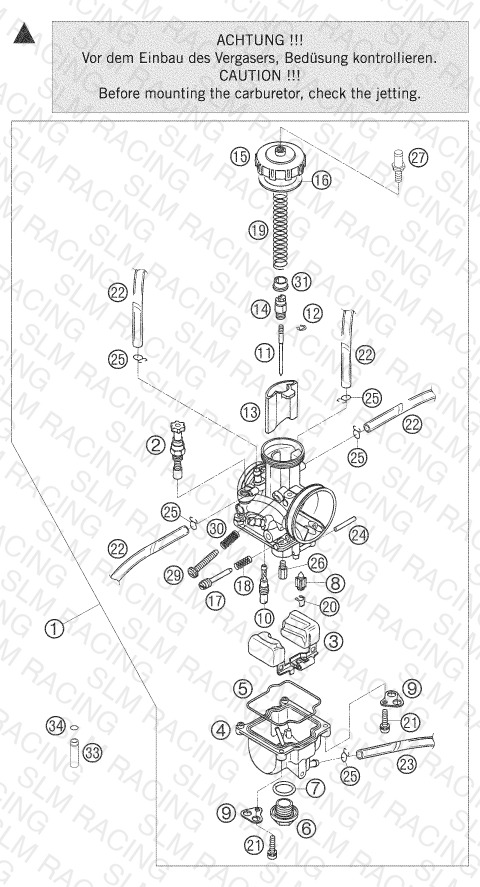

CARBURETOR
Parts (55)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 51531001044 CARBURETTOR KEIH. PWK 39 2007 | CARBURETTOR KEIH. PWK 39 2007 | 1 | — | Obsolete | View Details |
| 2 | 54631245000 STARTER PISTON CPL. | STARTER PISTON CPL. | 1 | $105.81 | Available | 1 |
| 3 | 54631209000 FLOAT R-39 16GRAM | FLOAT R-39 16GRAM | 1 | — | Obsolete | View Details |
| 4 | 54631211000 FLOAT CHAMBER | FLOAT CHAMBER | 1 | — | Obsolete | View Details |
| 5 | 54531610000 GASKET FLOAT CHAMBER | GASKET FLOAT CHAMBER | 1 | $11.76 | Available | 1 |
| 6 | 54531699000 PLUG M 18X1 | PLUG M 18X1 | 1 | $23.64 | Available | 1 |
| 7 | 0770180230 O-RING 18,00X2,30 NBR 70 | O-RING 18,00X2,30 NBR 70 | 1 | $3.99 | Available | 1 |
| 8 | 54631220000 FLOAT NEEDLE | FLOAT NEEDLE | 1 | $36.95 | Available | 1 |
| 9 | 54531612100 RETAINING PLATE FOR BLEEDER | RETAINING PLATE FOR BLEEDER | 2 | $3.99 | Available | 2 |
| 10 | 54531607040 IDLE JET 40 KEIHIN | IDLE JET 40 KEIHIN | — | $14.84 | Available | 1 |
| 10 | 54531607042 IDLE JET 42 KEIHIN | IDLE JET 42 KEIHIN | — | $14.95 | Available | 1 |
| 10 | 54531607045 IDLE JET 45 KEIHIN | IDLE JET 45 KEIHIN | — | $14.73 | Available | 1 |
| 10 | 54531607048 IDLE JET 48 KEIHIN | IDLE JET 48 KEIHIN | — | $14.84 | Available | 1 |
| 10 | 54531607050 IDLE JET 50 KEIHIN | IDLE JET 50 KEIHIN | — | $14.73 | Available | 1 |
| 10 | 54531607052 IDLE JET 52 KEIHIN | IDLE JET 52 KEIHIN | — | $13.63 | Available | 1 |
| 10 | 54531607055 IDLE JET 55 KEIHIN | IDLE JET 55 KEIHIN | — | $14.73 | Available | 1 |
| 11 | 51531034000 JET NEEDLE KEIHIN N3CE 07 | JET NEEDLE KEIHIN N3CE 07 | — | — | Obsolete | View Details |
| 11 | 54731034000 JET NEEDLE KEIHIN N3CH 03 | JET NEEDLE KEIHIN N3CH 03 | — | $18.36 | Available | 1 |
| 11 | 54731034100 JET NEEDLE KEIHIN N3CW 03 | JET NEEDLE KEIHIN N3CW 03 | — | — | Obsolete | View Details |
| 11 | 54731034400 JET NEEDLE KEIHIN N3CG 03 | JET NEEDLE KEIHIN N3CG 03 | — | — | Obsolete | View Details |
| 11 | 54731034500 JET NEEDLE KEIHIN N3CF 04 | JET NEEDLE KEIHIN N3CF 04 | — | — | Obsolete | View Details |
| 11 | 54731034600 JET NEEDLE KEIHIN N3CJ 04 | JET NEEDLE KEIHIN N3CJ 04 | — | $19.24 | Available | 1 |
| 12 | 54531629000 CLIP FOR JET NEEDLE | CLIP FOR JET NEEDLE | 1 | $3.99 | Available | 1 |
| 13 | 54631235006 THROTTLE VALVE 60 KEIHIN | THROTTLE VALVE 60 KEIHIN | — | — | Obsolete | View Details |
| 13 | 54631235055 THROTTLE VALVE 55 KEIHIN | THROTTLE VALVE 55 KEIHIN | — | — | Obsolete | View Details |
| 13 | 54631235106 THROTTLE VALVE 65 KEIHIN | THROTTLE VALVE 65 KEIHIN | — | — | Obsolete | View Details |
| 14 | 54631232000 NIPPLE | NIPPLE | 1 | $45.64 | Available | 1 |
| 15 | 54631227000 CARBURETOR COVER | CARBURETOR COVER | 1 | $52.79 | Out of Stock | Notify Me |
| 16 | 54531628000 RUBBER SEAL RING 40X46X1 | RUBBER SEAL RING 40X46X1 | 1 | — | Obsolete | View Details |
| 17 | 54531617000 ADJUSTMENT SCREW | ADJUSTMENT SCREW | 1 | $10.00 | Available | 1 |
| 18 | 54531615000 SPRING FOR ADJUSTMENT SCREW | SPRING FOR ADJUSTMENT SCREW | 1 | $3.99 | Available | 1 |
| 19 | 54831030000 SLIDING SPRING | SLIDING SPRING | 1 | $13.52 | Available | 1 |
| 20 | 54531621000 CLAMP | CLAMP | 1 | $4.99 | Available | 1 |
| 21 | 0016040163 HH COLLAR SCREW M 4X16 WS=6 | HH COLLAR SCREW M 4X16 WS=6 | 4 | $2.99 | Available | 4 |
| 22 | 31007007101 PVC-HOSE 4X6MM | PVC-HOSE 4X6MM | — | $4.99 | Available | 1 |
| 23 | 52031137001 PVC-HOSE 3X5MM | PVC-HOSE 3X5MM | — | $6.15 | Available | 1 |
| 24 | 54531608000 STUD 2,5X25 | STUD 2,5X25 | 1 | $2.99 | Available | 1 |
| 25 | 54531696000 Clamp 6mm | Clamp 6mm | 5 | $3.99 | Available | 5 |
| 26 | 54531623178 MAIN JET 178 KEIHIN | MAIN JET 178 KEIHIN | — | $16.05 | Available | 1 |
| 26 | 54531623180 MAIN JET 180 KEIHIN | MAIN JET 180 KEIHIN | — | $14.95 | Available | 1 |
| 26 | 54531623182 MAIN JET 182 KEIHIN | MAIN JET 182 KEIHIN | — | $15.17 | Available | 1 |
| 26 | 54531623185 MAIN JET 185 KEIHIN | MAIN JET 185 KEIHIN | — | $15.06 | Available | 1 |
| 26 | 54531623188 MAIN JET 188 KEIHIN | MAIN JET 188 KEIHIN | — | $14.84 | Available | 1 |
| 26 | 54531623190 MAIN JET 190 KEIHIN | MAIN JET 190 KEIHIN | — | $14.84 | Available | 1 |
| 26 | 54531623192 MAIN JET 192 KEIHIN | MAIN JET 192 KEIHIN | — | $14.84 | Available | 1 |
| 26 | 54531623195 MAIN JET 195 KEIHIN | MAIN JET 195 KEIHIN | — | $14.84 | Available | 1 |
| 26 | 54531623198 MAIN JET 198 KEIHIN | MAIN JET 198 KEIHIN | — | $13.52 | Available | 1 |
| 26 | 54531623200 MAIN JET 200 KEIHIN | MAIN JET 200 KEIHIN | — | $13.41 | Available | 1 |
| 26 | 54531623205 MAIN JET 205 KEIHIN | MAIN JET 205 KEIHIN | — | $14.84 | Available | 1 |
| 27 | 54831029000 THROTTLE CALBE HOLDER M6X0,75 | THROTTLE CALBE HOLDER M6X0,75 | 1 | $16.49 | Available | 1 |
| 29 | 54631219100 ADJUSTMENT SCREW M 5 | ADJUSTMENT SCREW M 5 | 1 | $14.99 | Available | 1 |
| 30 | 54631118000 SPRING | SPRING | 1 | $11.54 | Available | 1 |
| 31 | 54631231000 SPRING CAP | SPRING CAP | 1 | $12.53 | Available | 1 |
| 33 | 50331029036 SLIDE STOP L=36MM | SLIDE STOP L=36MM | — | — | Obsolete | View Details |
| 34 | 0770060018 O-RING 6,07X1,78 FPM75 | O-RING 6,07X1,78 FPM75 | — | $2.99 | Available | 1 |
