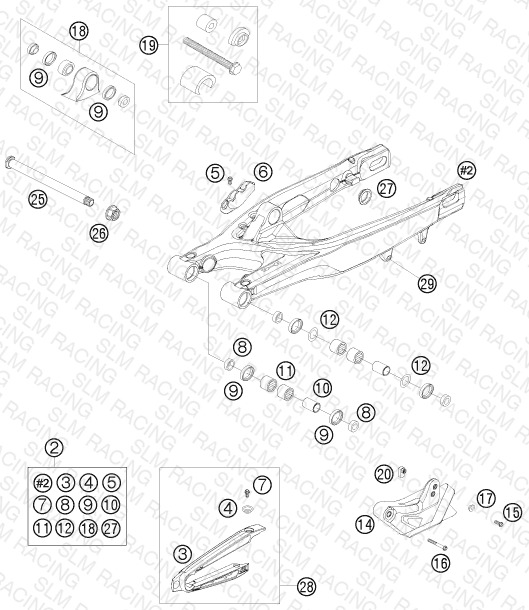

SWING ARM
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 77304030044 SWINGARM CPL. 07 | SWINGARM CPL. 07 | 1 | — | Obsolete | View Details |
| 3 | 77304066000 CHAIN SLIDING PROTECTION | CHAIN SLIDING PROTECTION | 1 | $25.73 | Available | 1 |
| 4 | 77304066050 chain slider bushing | chain slider bushing | 2 | $1.99 | Available | 2 |
| 5 | 0009050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 2 | $2.99 | Available | 2 |
| 6 | 77313047000 BRAKE HOSE GUIDE LOWER 07 | BRAKE HOSE GUIDE LOWER 07 | 1 | $6.15 | Available | 1 |
| 7 | 0017060203 EJOT PT SCREW K60X20 WS=6 | EJOT PT SCREW K60X20 WS=6 | 2 | $2.99 | Available | 2 |
| 8 | 54804034000 Bucket f. shaft seal ring 03 | Bucket f. shaft seal ring 03 | 4 | $15.83 | Available | 4 |
| 9 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 10 | 54804032000 BUSHING SLEEVE F. SWING ARM 03 | BUSHING SLEEVE F. SWING ARM 03 | 2 | $12.86 | Available | 2 |
| 11 | 58033097000 NEEDLE BEARING HK 2216 | NEEDLE BEARING HK 2216 | 4 | $16.49 | Available | 4 |
| 12 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 14 | 77304070100 CHAIN GUIDE REAR CPL. 07 | CHAIN GUIDE REAR CPL. 07 | 1 | $61.73 | Out of Stock | Notify Me |
| 15 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 16 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 1 | $2.99 | Available | 1 |
| 17 | 77304070130 BUSH. F. CHAIN FAIL. PROT. 07 | BUSH. F. CHAIN FAIL. PROT. 07 | 1 | $3.99 | Available | 1 |
| 18 | 50304090044 PIVOT BEARING+BUSH. PDS '99 | PIVOT BEARING+BUSH. PDS '99 | 1 | $76.11 | Available | 1 |
| 19 | 50329000044 TOOL BEARING MOUNTING PDS | TOOL BEARING MOUNTING PDS | 1 | $632.71 | Out of Stock | Notify Me |
| 20 | 77304070030 INSERTION NUT F. CHAIN GUIDE | INSERTION NUT F. CHAIN GUIDE | 1 | $10.44 | Available | 1 |
| 25 | 77304037000 SWINGARM BOLT M16X1,5 07 | SWINGARM BOLT M16X1,5 07 | 1 | $66.65 | Available | 1 |
| 26 | 54804038000 Nut with flange M16X1,5 WS=19 | Nut with flange M16X1,5 WS=19 | 1 | $2.99 | Available | 1 |
| 27 | 58404041100 CLOSING COVER ROUND 03 | CLOSING COVER ROUND 03 | 4 | $1.99 | Available | 4 |
| 28 | 77304066010 CHAIN GUARD CPL. 07-11 | CHAIN GUARD CPL. 07-11 | 1 | $29.58 | Available | 1 |
| 29 | 54603055051 PRESS IN NUT M6 STEEL ZINC | PRESS IN NUT M6 STEEL ZINC | 1 | $2.99 | Available | 1 |
