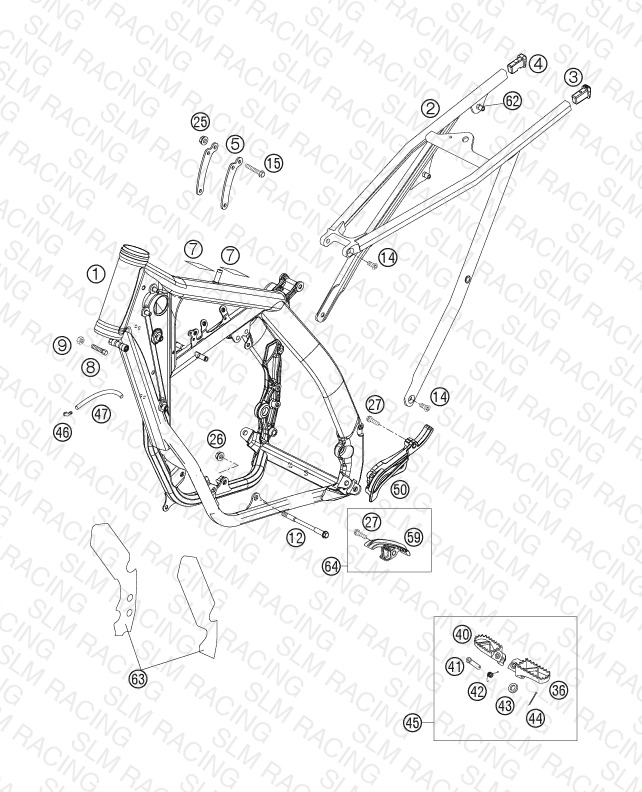

FRAME
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 25 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 3 | — | Check availability | |
| 1 | 5030340100030 FRAME 125 SX ''BA07'' 07 | FRAME 125 SX ''BA07'' 07 | 1 | — | Check availability | View Details |
| 3 | 77303002010 SUB FRAME APPLICATION L/S 07 | SUB FRAME APPLICATION L/S 07 | 1 | — | Check availability | View Details |
| 4 | 77303002020 SUB FRAME APPLICATION R/S 07 | SUB FRAME APPLICATION R/S 07 | 1 | — | Check availability | View Details |
| 5 | 50303413000 REINFORCING B. 125 SX 07 | REINFORCING B. 125 SX 07 | 2 | — | Check availability | |
| 7 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 | ADH. FOIL TRANSP. 80X80 MM 04 | 2 | — | Check availability | |
| 8 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | — | Check availability | |
| 9 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | — | Check availability | |
| 12 | 54603013000 engine brac.scr. M10x105 WS13 | engine brac.scr. M10x105 WS13 | 2 | — | Check availability | |
| 14 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 4 | — | Check availability | |
| 15 | 56530079000 HH COLLAR SCREW M 8X44 WS13 | HH COLLAR SCREW M 8X44 WS13 | 3 | — | Check availability | View Details |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | — | Check availability | |
| 27 | 0015080303 HH COLLAR SCREW M 8X30 WS=10 | HH COLLAR SCREW M 8X30 WS=10 | 2 | — | Check availability | View Details |
| 36 | 59003040250 FOOT PEG L/S SILVER 02 | FOOT PEG L/S SILVER 02 | 1 | — | Check availability | View Details |
| 40 | 59003041250 FOOT PEG R/S SILVER 02 | FOOT PEG R/S SILVER 02 | 1 | — | Check availability | View Details |
| 41 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | — | Check availability | |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | — | Check availability | |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 45 | 5030314013390 FOOTPEG L.+R. CPL. 03 | FOOTPEG L.+R. CPL. 03 | 1 | — | Check availability | |
| 46 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 2 | — | Check availability | |
| 47 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | 0 | — | Check availability | |
| 2 | 77303002000 SUB FRAME SX ''Q7'' 07 | SUB FRAME SX ''Q7'' 07 | 1 | — | Check availability | |
| 50 | 54803096000 SPROCKET COVER 250 SX 07 | SPROCKET COVER 250 SX 07 | 1 | — | Check availability | |
| 59 | 77303053000 Chain sliding piece, bottom | Chain sliding piece, bottom | 1 | — | Check availability | |
| 62 | 77303139000 BLIND RIVET NUT EM6-60LF/HX | BLIND RIVET NUT EM6-60LF/HX | 0 | — | Check availability | |
| 63 | 77303094000 FRAME PROTECTION STICK. SET 07 | FRAME PROTECTION STICK. SET 07 | 1 | — | Check availability | |
| 64 | 77303053010 CHAIN SLIDING KIT BELOW CPL07 | CHAIN SLIDING KIT BELOW CPL07 | 1 | — | Check availability |
