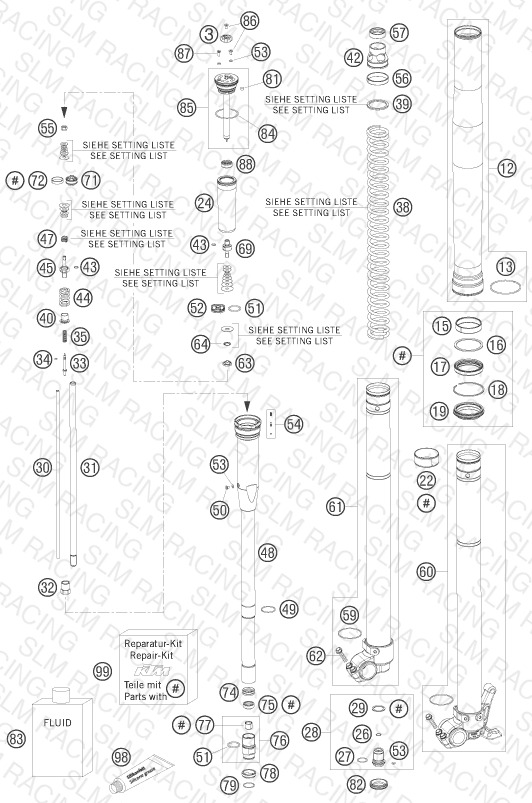

FRONT FORK DISASSEMBLED

← FRONT BRAKE CONTROL FRONT FORK, TRIPLE CLAMP →

Parts (62)

#	Part Number	Description	Qty	Price	Status
3	48600569 SETTING KNOB	SETTING KNOB	2	—	Check availability	View Details
12	48600492F OUTER TUBE L=577 D=54/60MM	OUTER TUBE L=577 D=54/60MM	2	—	Check availability	View Details
13	48600016 Round-wire snap ring 48x2	Round-wire snap ring 48x2	2	—	Check availability
15	48600429 DU-BUSH D48XD52X12DDL02	DU-BUSH D48XD52X12DDL02	2	—	Check availability	View Details
16	48600013 Supportwasher 50x57,6x1,5	Supportwasher 50x57,6x1,5	2	—	Check availability
17	48600347 OIL SEAL RING 48X57,8X9,5 03	OIL SEAL RING 48X57,8X9,5 03	2	—	Check availability	View Details
18	48600070 Snap ring SB58x1,5 acc drawing	Snap ring SB58x1,5 acc drawing	2	—	Check availability
19	48600400 DUST CAP D=48 58,4X11,8	DUST CAP D=48 58,4X11,8	2	—	Check availability	View Details
22	48600428 DU-BUSH D47XD49X20DDL02	DU-BUSH D47XD49X20DDL02	2	—	Check availability	View Details
24	48600281 Membrane 11,2x37x112	Membrane 11,2x37x112	2	—	Check availability
28	48600280S SCREW BUSH M20X1 L=33 CPL.	SCREW BUSH M20X1 L=33 CPL.	2	—	Check availability
29	48600275 Copper disc 20,5x26x1	Copper disc 20,5x26x1	2	—	Check availability
30	48600269 Adjustment tube 6x371	Adjustment tube 6x371	2	—	Check availability
31	48600464 Piston rod 12x405	Piston rod 12x405	2	—	Check availability
32	48600459 Lock nut M12x1 h23 WAF17	Lock nut M12x1 h23 WAF17	2	—	Check availability
33	48600277 Needle 4,5x43,6	Needle 4,5x43,6	2	—	Check availability
34	48600298 O-ring 2x1,5 NBR70	O-ring 2x1,5 NBR70	2	—	Check availability
35	48600444 Spring (5,4) 4-23 rebound	Spring (5,4) 4-23 rebound	2	—	Check availability
38	91410051S POLISHED SPRING 4,2 N/MM2 CC	POLISHED SPRING 4,2 N/MM2 CC	0	—	Check availability	View Details
38	91410052S POLISHED SPRING 4,4 N/MM2 CC	POLISHED SPRING 4,4 N/MM2 CC	0	—	Check availability	View Details
39	48600456 Washer 35x43x2,5 plastic	Washer 35x43x2,5 plastic	2	—	Check availability
40	48600525 Spring retainer 12,3x19x1,25 r	Spring retainer 12,3x19x1,25 r	2	—	Check availability
41	48600457 Preload bush 35x43x3,5	Preload bush 35x43x3,5	1	—	Check availability
42	48600520 Spring support ring 27,08x42x4	Spring support ring 27,08x42x4	2	—	Check availability
43	48600299 O-ring 6x1,2 NBR70	O-ring 6x1,2 NBR70	2	—	Check availability
44	48600578 Spring (13,9) 37-32 rebound	Spring (13,9) 37-32 rebound	2	—	Check availability
45	48600576 Tap 6x46 rebound	Tap 6x46 rebound	2	—	Check availability
47	35480377 Spring (11,7) 1,5-8 valve	Spring (11,7) 1,5-8 valve	2	—	Check availability
48	48600519S1 MEMBRANE HOLDER INKL. PIN SET	MEMBRANE HOLDER INKL. PIN SET	2	—	Check availability
49	48600512 Round-wire snap ring 28,5x1,5	Round-wire snap ring 28,5x1,5	2	—	Check availability
50	48600542 HS countersunk head screw M4x6	HS countersunk head screw M4x6	2	—	Check availability
51	46811499 O-ring 21x2 NBR70	O-ring 21x2 NBR70	2	—	Check availability
52	48600047 Piston 6x27,8x9 compression	Piston 6x27,8x9 compression	2	—	Check availability
53	50180222 O-ring 4x1,5 NBR70	O-ring 4x1,5 NBR70	6	—	Check availability
54	48600977S PIN KIT	PIN KIT	2	—	Check availability
55	40540486 Nut M6x0,5 h6,5 WAF10 rebound	Nut M6x0,5 h6,5 WAF10 rebound	2	—	Check availability
56	48600294 GUIDE RING 44,2 X39,3	GUIDE RING 44,2 X39,3	2	—	Check availability
57	48600577 Spring guide ring 27,08x32x9,5	Spring guide ring 27,08x32x9,5	2	—	Check availability
59	48600048 O-ring 46x2 NBR70 siliconized	O-ring 46x2 NBR70 siliconized	2	—	Check availability
60	48600529S1 AXLE CLAMP L/S + TUBE CPL. 07	AXLE CLAMP L/S + TUBE CPL. 07	1	—	Check availability	View Details
61	48600530S1 AXLE CLAMP R/S + TUBE CPL. 07	AXLE CLAMP R/S + TUBE CPL. 07	1	—	Check availability	View Details
62	0015080253 HH COLLAR SCREW M 8X25 WS=10	HH COLLAR SCREW M 8X25 WS=10	4	—	Check availability	View Details
63	48600163 Nut valve M6x0,5 h6,5 WAF17	Nut valve M6x0,5 h6,5 WAF17	2	—	Check availability
64	48600202 Spring (8,5) l6,5 valve	Spring (8,5) l6,5 valve	2	—	Check availability
69	48600509 Tap 6x38 compression	Tap 6x38 compression	2	—	Check availability
71	48600575 Piston 6,07x22,7x13	Piston 6,07x22,7x13	2	—	Check availability
72	48600455 Piston ring 21x23x5	Piston ring 21x23x5	2	—	Check availability	View Details
73	48600299 O-ring 6x1,2 NBR70	O-ring 6x1,2 NBR70	2	—	Check availability
74	48600296 RING D=23,45X2,65	RING D=23,45X2,65	2	—	Check availability
75	48600471 PISTON ROD SEALING	PISTON ROD SEALING	2	—	Check availability	View Details
76	48600546S SCREW SLEEVE M24,5X1 CPL.	SCREW SLEEVE M24,5X1 CPL.	2	—	Check availability	View Details
77	48600430 Guide bushing 12x14x10	Guide bushing 12x14x10	2	—	Check availability
78	48600297 CHECK VALVE STOP	CHECK VALVE STOP	2	—	Check availability
79	48600446 Round-wire snap ring 24x2	Round-wire snap ring 24x2	2	—	Check availability
82	48600141 Rubber cap 35x10 NBR80	Rubber cap 35x10 NBR80	2	—	Check availability
83	48600401S1 FORK OIL SAE5 5L 2005	FORK OIL SAE5 5L 2005	1	—	Check availability	View Details
85	48600516S1 screw cap M41x1 cmpl.	screw cap M41x1 cmpl.	2	—	Check availability	View Details
86	48600527 HS countersunk head screw M4x1	HS countersunk head screw M4x1	4	—	Check availability
87	48600526 Cross flat head screw M4x10	Cross flat head screw M4x10	2	—	Check availability
88	48600514 Clamping ring bladder 11,31x22	Clamping ring bladder 11,31x22	2	—	Check availability
98	T511 SILICONE GREASE F. DUST STRI	SILICONE GREASE F. DUST STRI	1	—	Check availability	View Details
99	R14014 REPAIR-KIT GASKET 48MM 0	REPAIR-KIT GASKET 48MM 0	1	—	Check availability	View Details
