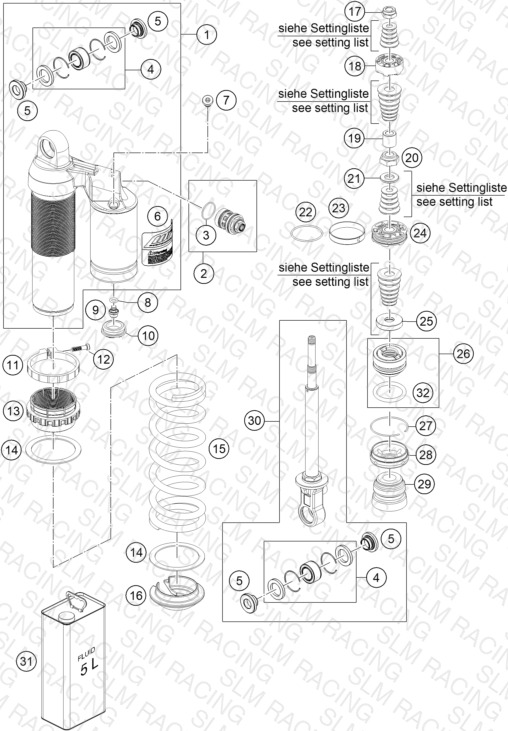

SHOCK ABSORBER DISASSEMBLED
Parts (47)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46181019S2 MONOSHOCK CASE CPL. | MONOSHOCK CASE CPL. | 1 | $637.11 | Available | |
| 2 | 50180213S10 DCC-COMPR.DAMP.CONTROL CPL. 07 | DCC-COMPR.DAMP.CONTROL CPL. 07 | 1 | — | Obsolete | View Details |
| 3 | 50180218 O-ring 25x1,5 Viton70 | O-ring 25x1,5 Viton70 | 1 | $2.41 | Available | 1 |
| 4 | R12012 Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 1 | $42.01 | Available | 1 |
| 5 | 46180007 Distance bush 12x15/18/24,5x10 | Distance bush 12x15/18/24,5x10 | 2 | $20.89 | Available | 2 |
| 6 | 52000087 sticker WP warning 47x63 | sticker WP warning 47x63 | 1 | $11.76 | Out of Stock | Notify Me |
| 7 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | $2.85 | Available | 1 |
| 8 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | $0.76 | Available | 1 |
| 9 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | $2.19 | Available | 1 |
| 10 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | $3.62 | Available | 1 |
| 11 | 46181014 Clamp d61 | Clamp d61 | 1 | $25.84 | Available | 1 |
| 12 | 14460042 HS cylinder-head screw M5x20 D | HS cylinder-head screw M5x20 D | 1 | $1.20 | Available | 1 |
| 13 | 46181013 Spring retainer M55x2x71x35 pl | Spring retainer M55x2x71x35 pl | 1 | $15.17 | Backorder — Restocking | 1 |
| 14 | 50180410 Washer 58,6x73,6x1,5 | Washer 58,6x73,6x1,5 | 2 | $4.83 | Available | 2 |
| 15 | 91010272 SPRING 215 30 N/MM D=9,00 ORAN | SPRING 215 30 N/MM D=9,00 ORAN | — | — | Obsolete | View Details |
| 15 | 91010273 Mainspring (59) 35-215 damper | Mainspring (59) 35-215 damper | 1 | $177.53 | Out of Stock | Notify Me |
| 15 | 91010274S SPRING 215 40 N/MM D=9,50 ORG | SPRING 215 40 N/MM D=9,50 ORG | — | — | Obsolete | View Details |
| 16 | 46180349 Spring retainer 28x56x15 | Spring retainer 28x56x15 | 1 | $36.29 | Out of Stock | Notify Me |
| 17 | 46180356 PISTON ROD NUT M10X1 | PISTON ROD NUT M10X1 | 1 | $9.12 | Available | 1 |
| 18 | 46180744 Piston 10.05x35.4x13.65 3.5/5. | Piston 10.05x35.4x13.65 3.5/5. | 1 | $73.91 | Available | |
| 19 | 46181025 Bush 10x17x17 | Bush 10x17x17 | 1 | $6.15 | Available | 1 |
| 20 | 46810474 Piston rod nut M12x1 | Piston rod nut M12x1 | 1 | $6.15 | Available | 1 |
| 21 | 46811258 Washer 12x24x2,5 | Washer 12x24x2,5 | 1 | $29.14 | Backorder — Restocking | 1 |
| 22 | 46810035 O-ring 37x,82x1,78 Viton70 gre | O-ring 37x,82x1,78 Viton70 gre | 1 | $2.41 | Available | 1 |
| 23 | 46811206 Piston ring 43,95x45,95x8 | Piston ring 43,95x45,95x8 | 1 | $20.89 | Available | 1 |
| 24 | 46810560 Piston 12,05x45,5x12,6 4,5/7 | Piston 12,05x45,5x12,6 4,5/7 | 1 | $162.02 | Out of Stock | Notify Me |
| 25 | 46180337 Rebound disc 12x34x7 h4 | Rebound disc 12x34x7 h4 | 1 | $38.49 | Out of Stock | Notify Me |
| 26 | 46180669S Sealholder 46x28 cpl. | Sealholder 46x28 cpl. | 1 | $83.81 | Backorder — Restocking | 1 |
| 27 | 46810010 Round-wire snap ring 49x1,5 | Round-wire snap ring 49x1,5 | 1 | $3.62 | Available | 1 |
| 28 | 46180338 Cover 46,12x6,2 h15,7 | Cover 46,12x6,2 h15,7 | 1 | $40.58 | Available | 1 |
| 29 | 50180276 Rubber pad 17,2x45,2x40 black | Rubber pad 17,2x45,2x40 black | 1 | $9.89 | Available | 1 |
| 30 | 46180520S5 MONOSHOCK LOWER PART | MONOSHOCK LOWER PART | 1 | $371.79 | Available | |
| 31 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | $175.99 | Available | 1 |
| 32 | 14460004 O-ring 36x5 NBR70 | O-ring 36x5 NBR70 | 1 | $1.79 | Available | 1 |
| 40 | 91010272 SPRING 215 30 N/MM D=9,00 ORAN | SPRING 215 30 N/MM D=9,00 ORAN | — | — | Obsolete | View Details |
| 40 | 91010273 Mainspring (59) 35-215 damper | Mainspring (59) 35-215 damper | 1 | $177.53 | Out of Stock | Notify Me |
| 40 | 91010274S SPRING 215 40 N/MM D=9,50 ORG | SPRING 215 40 N/MM D=9,50 ORG | — | — | Obsolete | View Details |
| 43 | 46180349 Spring retainer 28x56x15 | Spring retainer 28x56x15 | 1 | $36.29 | Out of Stock | Notify Me |
| 45 | 46180356 PISTON ROD NUT M10X1 | PISTON ROD NUT M10X1 | 1 | $9.12 | Available | 1 |
| 46 | 46810035 O-ring 37x,82x1,78 Viton70 gre | O-ring 37x,82x1,78 Viton70 gre | 1 | $2.41 | Available | 1 |
| 47 | 46811206 Piston ring 43,95x45,95x8 | Piston ring 43,95x45,95x8 | 1 | $20.89 | Available | 1 |
| 57 | 46180337 Rebound disc 12x34x7 h4 | Rebound disc 12x34x7 h4 | 1 | $38.49 | Out of Stock | Notify Me |
| 72 | 46180669S Sealholder 46x28 cpl. | Sealholder 46x28 cpl. | 1 | $83.81 | Backorder — Restocking | 1 |
| 83 | 50180410 Washer 58,6x73,6x1,5 | Washer 58,6x73,6x1,5 | 2 | $4.83 | Available | 2 |
| 85 | 46810010 Round-wire snap ring 49x1,5 | Round-wire snap ring 49x1,5 | 1 | $3.62 | Available | 1 |
| 86 | 46180338 Cover 46,12x6,2 h15,7 | Cover 46,12x6,2 h15,7 | 1 | $40.58 | Available | 1 |
| 87 | 50180276 Rubber pad 17,2x45,2x40 black | Rubber pad 17,2x45,2x40 black | 1 | $9.89 | Available | 1 |
