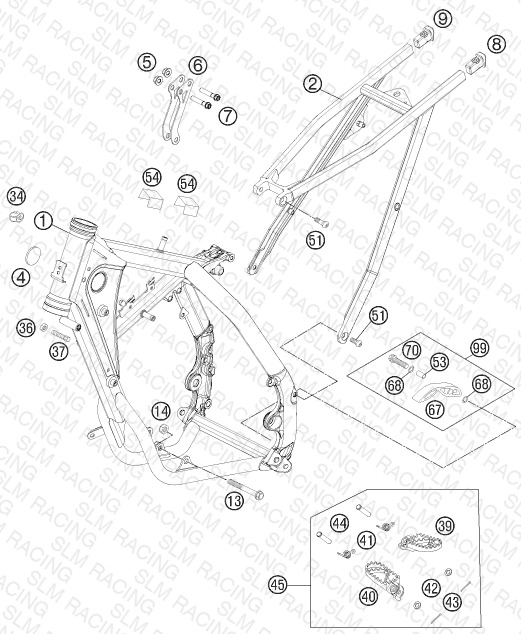

FRAME
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 47103002000 SUB FRAME | SUB FRAME | 1 | — | Check availability | |
| 4 | 54606004000 PLUG 37MM | PLUG 37MM | 2 | — | Check availability | |
| 13 | 47003013000 ENGINE BRACKET SCREW 85 SX | ENGINE BRACKET SCREW 85 SX | 2 | — | Check availability | |
| 14 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | — | Check availability | |
| 34 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 2 | — | Check availability | |
| 36 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | — | Check availability | |
| 37 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 1 | — | Check availability | |
| 39 | 59003040050 FOOT PED L/S EXC SILVER 00 | FOOT PED L/S EXC SILVER 00 | 1 | — | Check availability | View Details |
| 40 | 59003041050 FOOT PED R/S EXC SILVER 2000 | FOOT PED R/S EXC SILVER 2000 | 1 | — | Check availability | View Details |
| 41 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | — | Check availability | |
| 42 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 43 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 44 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | — | Check availability | |
| 51 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 4 | — | Check availability | |
| 45 | 4700304003390 FOOTPEG L.+R. CPL. 85 SX 03 | FOOTPEG L.+R. CPL. 85 SX 03 | 1 | — | Check availability | View Details |
| 53 | 51103053051 BUSHING 8,2X10X20 | BUSHING 8,2X10X20 | 1 | — | Check availability | |
| 54 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 | ADH. FOIL TRANSP. 80X80 MM 04 | 2 | — | Check availability | |
| 67 | 51103053000 CHAIN SLIDING PIECE BELOW '97 | CHAIN SLIDING PIECE BELOW '97 | 1 | — | Check availability | |
| 68 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | — | Check availability | |
| 70 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 1 | — | Check availability | |
| 99 | 51103053110 CHAIN SLIDING KIT BELOW MINI | CHAIN SLIDING KIT BELOW MINI | 1 | — | Check availability | |
| 7 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 3 | — | Check availability | |
| 5 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 3 | — | Check availability | |
| 6 | 47103013000 REINFORCING | REINFORCING | 2 | — | Check availability | View Details |
| 8 | 78003002010 SUB FRAME APPLICAT. LEFT 08 | SUB FRAME APPLICAT. LEFT 08 | 1 | — | Check availability | View Details |
| 9 | 78003002020 SUB FRAME APPLICATION R/S 08 | SUB FRAME APPLICATION R/S 08 | 1 | — | Check availability | View Details |
| 1 | 47103001000BE FRAME ''471M3'' ANTHR.-MET. | FRAME ''471M3'' ANTHR.-MET. | 1 | — | Check availability |
