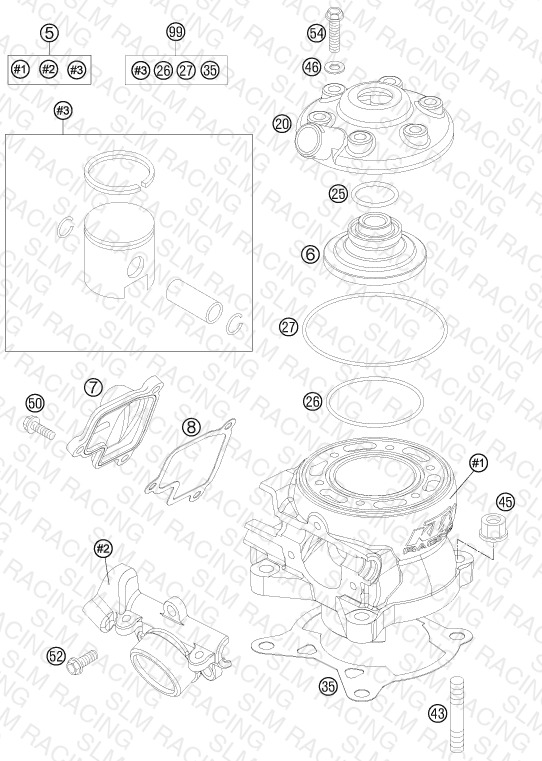

CYLINDER
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | 47030038000 ZYLINDER, PISTON, FLANGE | ZYLINDER, PISTON, FLANGE | 1 | — | Obsolete | View Details |
| 6 | 47030106100 CYLINDER HEAD INSERT 85 SX 07 | CYLINDER HEAD INSERT 85 SX 07 | 1 | $55.54 | Available | |
| 7 | 47037007000 CONTROL COVER 85 SX 2003 | CONTROL COVER 85 SX 2003 | 1 | — | Obsolete | View Details |
| 8 | 47037008000 GASKET FOR CONTROL COVER 2003 | GASKET FOR CONTROL COVER 2003 | 1 | — | Obsolete | View Details |
| 20 | 47030006100 CYLINDER HEAD 85 SX 2007 | CYLINDER HEAD 85 SX 2007 | 1 | — | Obsolete | View Details |
| 25 | 0770220025 O-RING 22,00X2,5 VITON 75SH | O-RING 22,00X2,5 VITON 75SH | 1 | $6.15 | Available | |
| 26 | 0770540020 O-RING 54X2 VITON | O-RING 54X2 VITON | 1 | $12.20 | Available | |
| 27 | 0770820020 O-RING 82X2 SILICONE | O-RING 82X2 SILICONE | 1 | $13.30 | Available | 1 |
| 35 | 47030035000 CYLINDER BASE GASKET 0,50MM | CYLINDER BASE GASKET 0,50MM | — | $9.56 | Available | 1 |
| 35 | 47030035020 CYLINDER BASE GASKET 0,20MM | CYLINDER BASE GASKET 0,20MM | — | $9.56 | Available | 1 |
| 35 | 47030035030 CYLINDER BASE GASKET 0,30MM | CYLINDER BASE GASKET 0,30MM | — | $9.56 | Available | 1 |
| 43 | 0835080240 STUD DIN 0835-M 8X24 | STUD DIN 0835-M 8X24 | 4 | $3.99 | Available | 4 |
| 45 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | $9.23 | Available | 1 |
| 46 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 50 | 0015050123 HH COLLAR SCREW M 5X12 WS=8 | HH COLLAR SCREW M 5X12 WS=8 | 1 | $3.99 | Available | 1 |
| 52 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 54 | 47030079000 CYL.HEAD BOLT 85 SX 05 | CYL.HEAD BOLT 85 SX 05 | 6 | $1.99 | Available | |
| 99 | 00050000204 PISTON KIT GR.I 85 SX/TC | PISTON KIT GR.I 85 SX/TC | — | $270.59 | Available | |
| 99 | 00050000205 PISTON KIT GR.II 85 SX/TC | PISTON KIT GR.II 85 SX/TC | — | $297.65 | Available |
