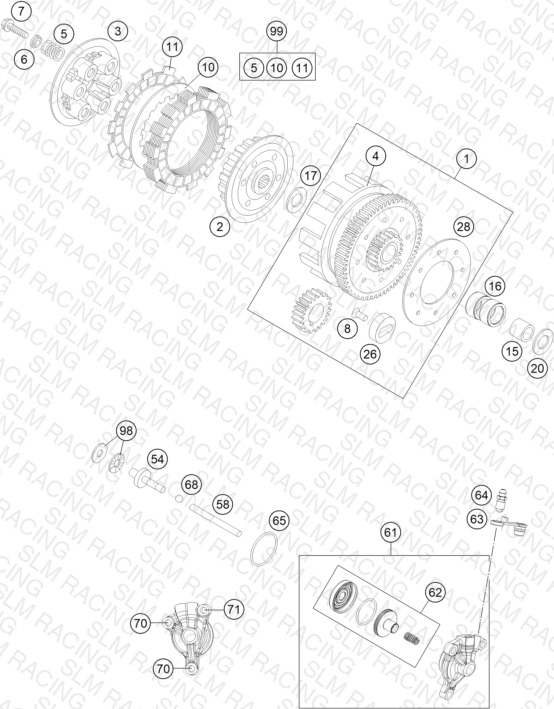

CLUTCH
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 47032001244 OUTER CLUTCH HUB CPL. 85 SX 13 | OUTER CLUTCH HUB CPL. 85 SX 13 | 1 | $429.10 | Available | |
| 2 | 47032002000 INNER CLUTCH HUB 85 SX 2003 | INNER CLUTCH HUB 85 SX 2003 | 1 | — | Obsolete | View Details |
| 3 | 47032003000 PRESSURE CAP 85 SX 2003 | PRESSURE CAP 85 SX 2003 | 1 | — | Obsolete | View Details |
| 4 | 47032001100 OUT. CLUTCH HUB LOOSE 85 SX 07 | OUT. CLUTCH HUB LOOSE 85 SX 07 | 1 | $80.18 | Available | 1 |
| 5 | 47032005000 CLUTCH SPRING 85 SX 2003 | CLUTCH SPRING 85 SX 2003 | 5 | $3.99 | Available | 5 |
| 6 | 47032006000 SPRING RETAIN. 5,1X10,2X15X2,5 | SPRING RETAIN. 5,1X10,2X15X2,5 | 5 | $12.97 | Available | 5 |
| 7 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 1 | $2.99 | Available | 1 |
| 8 | 47032008000 RIVET DIN0661 5X14 | RIVET DIN0661 5X14 | 6 | $2.99 | Available | 6 |
| 10 | 47032010000 STEEL DISC 85 SX 03 | STEEL DISC 85 SX 03 | 6 | $11.32 | Available | 6 |
| 11 | 47032011000 LINING DISC 85 SX 2003 | LINING DISC 85 SX 2003 | 7 | — | Obsolete | View Details |
| 15 | 47032015000 BUSHING 20X25X20,5 | BUSHING 20X25X20,5 | 1 | — | Obsolete | View Details |
| 16 | 0405252910 NEEDLE BEAR K 25X29X10 | NEEDLE BEAR K 25X29X10 | 2 | $10.44 | Available | 2 |
| 17 | 47032017000 SUPPORT WASHER 18,5X35X1,5 03 | SUPPORT WASHER 18,5X35X1,5 03 | 1 | $4.99 | Available | 1 |
| 20 | 47032020000 thrust washer 20x32x2 | thrust washer 20x32x2 | 1 | $4.99 | Available | 1 |
| 26 | 47032026000 DAMPING ELEMENT 85 SX 2003 | DAMPING ELEMENT 85 SX 2003 | 6 | $3.99 | Available | 6 |
| 28 | 47032028000 RETAINING PLATE 85 SX 2003 | RETAINING PLATE 85 SX 2003 | 1 | — | Obsolete | View Details |
| 54 | 47032054000 PRESSURE PLATE 85 SX 2003 | PRESSURE PLATE 85 SX 2003 | 1 | $39.15 | Available | 1 |
| 58 | 47032058000 PUSH ROD 85 SX 2003 | PUSH ROD 85 SX 2003 | 1 | $17.70 | Available | 1 |
| 61 | 47132061044 OUTPUT CYLINDER CPL. | OUTPUT CYLINDER CPL. | 1 | $259.70 | Available | 1 |
| 62 | 47132066000 Piston cmpl. | Piston cmpl. | 1 | $71.93 | Available | 1 |
| 63 | 47013021000 CAP FOR BLEEDER SCREW | CAP FOR BLEEDER SCREW | 1 | $7.91 | Available | 1 |
| 64 | 47013085000 BLEEDER SCREW M8X1 | BLEEDER SCREW M8X1 | 1 | $12.97 | Available | 1 |
| 65 | 0770031018 O-RING 31,47X1,78 | O-RING 31,47X1,78 | 1 | $2.99 | Available | 1 |
| 68 | 47032068000 BALL D=6MM 85 SX 2003 | BALL D=6MM 85 SX 2003 | 1 | $1.99 | Available | 1 |
| 70 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 71 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 98 | 47032098000 AXIAL NEEDLE BEARING 85 SX 03 | AXIAL NEEDLE BEARING 85 SX 03 | 1 | $11.87 | Available | 1 |
| 99 | 47032010010 CLUTCH KIT 105/85 SX 03-14 | CLUTCH KIT 105/85 SX 03-14 | 1 | $226.26 | Available | 1 |
