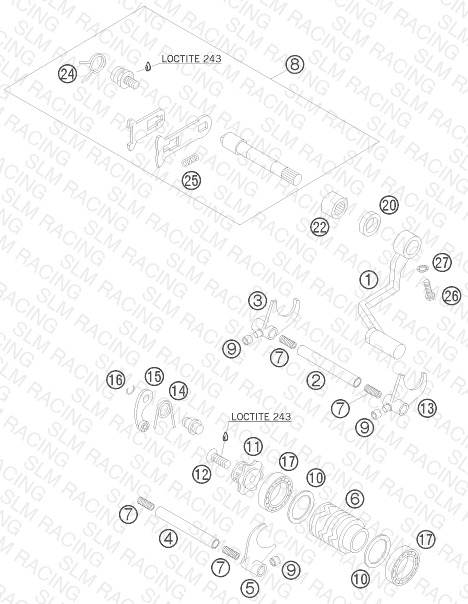

SHIFTING MECHANISM
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 46034020100 SHIFT RAIL 2001 | SHIFT RAIL 2001 | 1 | — | Check availability | |
| 3 | 46034002100 SHIFT FORK COUNTERSHAFT R/S | SHIFT FORK COUNTERSHAFT R/S | 1 | — | Check availability | View Details |
| 4 | 46034019100 SHIFT RAIL 10X72MM 2001 | SHIFT RAIL 10X72MM 2001 | 1 | — | Check availability | View Details |
| 5 | 46034001100 SHIFT FORK MAIN SHAFT 2001 | SHIFT FORK MAIN SHAFT 2001 | 1 | — | Check availability | View Details |
| 6 | 46034012300 SHIFT ROLLER 65 SX 2001 | SHIFT ROLLER 65 SX 2001 | 1 | — | Check availability | |
| 7 | 46034019052 SPRING SHIFT RAIL 2001 | SPRING SHIFT RAIL 2001 | 4 | — | Check availability | |
| 8 | 46034005044 SHIFT SHAFT CPL. | SHIFT SHAFT CPL. | 1 | — | Check availability | View Details |
| 9 | 50334018100 SHIFTING ROLLER 6X8X5,2 | SHIFTING ROLLER 6X8X5,2 | 3 | — | Check availability | |
| 10 | 46034091100 SPACER WASHER-SET 2001 | SPACER WASHER-SET 2001 0,2/0,5/0,6 MM | 1 | — | Check availability | View Details |
| 11 | 46034015100 SHIFT DRUM LOCATING 60/65 2000 | SHIFT DRUM LOCATING 60/65 2000 | 1 | — | Check availability | View Details |
| 12 | 0991060303 FLAT HEAD SCREW DIN7991-M 6X30 | FLAT HEAD SCREW DIN7991-M 6X30 | 1 | — | Check availability | |
| 13 | 46034002200 SHIFT FORK COUNT. 2.3.GEAR | SHIFT FORK COUNT. 2.3.GEAR | 1 | — | Check availability | |
| 14 | 46034023100 LOCKING LEVER SPRING 2001 | LOCKING LEVER SPRING 2001 | 1 | — | Check availability | |
| 15 | 46034024100 LOCKING LEVER CPL. 65 SX 2002 | LOCKING LEVER CPL. 65 SX 2002 | 1 | — | Check availability | |
| 16 | 0471100010 CIRCLIP DIN0471-10X1 | CIRCLIP DIN0471-10X1 | 1 | — | Check availability | |
| 17 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 2 | — | Check availability | |
| 20 | 0760122050 SHAFT SEAL RING 12X20X5 B | SHAFT SEAL RING 12X20X5 B | 1 | — | Check availability | |
| 22 | 46034027000 NEEDLE BEARING 12X18X12 2002 | NEEDLE BEARING 12X18X12 2002 | 1 | — | Check availability | |
| 24 | 46034014000 RETURN SPRING | RETURN SPRING | 1 | — | Check availability | |
| 25 | 46034009000 PRESSURE SPRING SLIDER PLATE | PRESSURE SPRING SLIDER PLATE | 1 | — | Check availability | |
| 26 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 1 | — | Check availability | View Details |
| 27 | 0797060003 TOOTH LOCK WASH. DIN6797-A 6,4 | TOOTH LOCK WASH. DIN6797-A 6,4 | 1 | — | Check availability | |
| 1 | 46034031100 SHIFT LEVER COL. 65 SX 2001 | SHIFT LEVER COL. 65 SX 2001 | 1 | — | Check availability | View Details |
