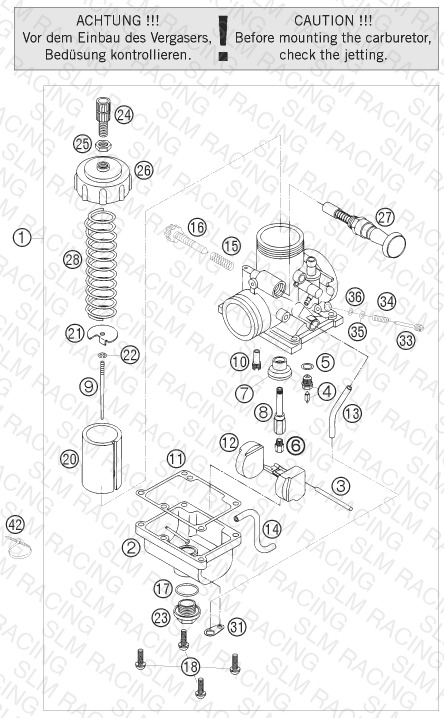

CARBURETOR
Parts (50)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 45031007025 IDLING JET 25 MIKUNI | IDLING JET 25 MIKUNI | — | $9.45 | Available | 1 |
| 1 | 45031023220 MAIN JET 220 | MAIN JET 220 | — | $8.68 | Available | 1 |
| 1 | 46131001000 CARBURETOR MIKUNI VM24-505 04 | CARBURETOR MIKUNI VM24-505 04 | 1 | — | Obsolete | View Details |
| 1 | 46131017000 ADJUSTING SCREW MIKUNI | ADJUSTING SCREW MIKUNI | 1 | $11.65 | Available | 1 |
| 2 | 46031011000 FLOAT BODY 5-1 VM24 | FLOAT BODY 5-1 VM24 | 1 | — | Obsolete | View Details |
| 3 | 45031008000 PIN 2,5X27 | PIN 2,5X27 | 1 | $3.99 | Available | 1 |
| 3 | 45031015000 SPRING | SPRING | 1 | $6.15 | Available | 1 |
| 3 | 57031525000 ADJUSTMENT SCREW M6X0,75 | ADJUSTMENT SCREW M6X0,75 | 1 | $6.15 | Available | 1 |
| 4 | 46131020000 NEEDLE VALVE CPL. VM24 | NEEDLE VALVE CPL. VM24 | 1 | — | Obsolete | View Details |
| 5 | 46031018000 GASKET NEEDLE VALVE 9,1X12X0,5 | GASKET NEEDLE VALVE 9,1X12X0,5 | 1 | $2.99 | Available | 1 |
| 6 | 45031023185 MAIN JET 185 | MAIN JET 185 | — | — | Obsolete | View Details |
| 6 | 45031023190 MAIN JET 190 | MAIN JET 190 | — | $8.57 | Available | 1 |
| 6 | 45031023195 MAIN JET 195 | MAIN JET 195 | — | $8.68 | Available | 1 |
| 6 | 45031023200 MAIN JET 200 | MAIN JET 200 | — | $8.68 | Available | 1 |
| 6 | 45031023205 MAIN JET 205 | MAIN JET 205 | — | $8.68 | Available | 1 |
| 6 | 45031023220 MAIN JET 220 | MAIN JET 220 | — | $8.68 | Available | 1 |
| 6 | 45031023230 MAIN JET | MAIN JET | — | $6.48 | Available | 1 |
| 7 | 46031074000 BUFFLE | BUFFLE | 1 | — | Obsolete | View Details |
| 8 | 45031023195 MAIN JET 195 | MAIN JET 195 | — | $8.68 | Available | 1 |
| 8 | 45031023200 MAIN JET 200 | MAIN JET 200 | — | $8.68 | Available | 1 |
| 8 | 45031023205 MAIN JET 205 | MAIN JET 205 | — | $8.68 | Available | 1 |
| 8 | 45031023230 MAIN JET | MAIN JET | — | $6.48 | Available | 1 |
| 8 | 46131021000 NEEDLE JET 864 0-0 | NEEDLE JET 864 0-0 | 1 | $30.68 | Available | 1 |
| 9 | 45031034200 JET NEEDLE MIKUNI 5I14 | JET NEEDLE MIKUNI 5I14 | 1 | — | Obsolete | View Details |
| 10 | 45031007025 IDLING JET 25 MIKUNI | IDLING JET 25 MIKUNI | — | $9.45 | Available | 1 |
| 10 | 45031007032 IDLING JET 32,5 MIKUNI | IDLING JET 32,5 MIKUNI | — | — | Obsolete | View Details |
| 11 | 45031010100 GASKET FLOAT BOWL | GASKET FLOAT BOWL | 1 | — | Obsolete | View Details |
| 12 | 45031008000 PIN 2,5X27 | PIN 2,5X27 | 1 | $3.99 | Available | 1 |
| 12 | 46031009000 FLOAT VM24 | FLOAT VM24 | 1 | — | Obsolete | View Details |
| 13 | 52031137001 PVC-HOSE 3X5MM | PVC-HOSE 3X5MM | — | $6.15 | Available | 1 |
| 15 | 45031015100 SPRING MIKUNI | SPRING MIKUNI | 1 | — | Obsolete | View Details |
| 16 | 46031019000 THROTTLE VALVE SCREW M6X30 | THROTTLE VALVE SCREW M6X30 | 1 | — | Obsolete | View Details |
| 17 | 46031043000 O-RING 17,5X1,4 | O-RING 17,5X1,4 | 1 | — | Obsolete | View Details |
| 18 | 45031014016 LINTIL HEAD SCREW M4X16 (SET) | LINTIL HEAD SCREW M4X16 (SET) | 1 | $2.99 | Available | 1 |
| 19 | 45031026000 HH-NUT M6X0,75 | HH-NUT M6X0,75 | 1 | — | Obsolete | View Details |
| 20 | 46131035000 THROTTLE VALVE 1.5 | THROTTLE VALVE 1.5 | 1 | — | Obsolete | View Details |
| 21 | 46031032000 HOLDING WASHER | HOLDING WASHER | 1 | — | Obsolete | View Details |
| 22 | 45031045000 SPRING | SPRING | 1 | $3.99 | Available | 1 |
| 23 | 46031014000 PLUG SCREW M16 WS=17 | PLUG SCREW M16 WS=17 | 1 | — | Obsolete | View Details |
| 24 | 57031525000 ADJUSTMENT SCREW M6X0,75 | ADJUSTMENT SCREW M6X0,75 | 1 | $6.15 | Available | 1 |
| 25 | 45031026000 HH-NUT M6X0,75 | HH-NUT M6X0,75 | 1 | — | Obsolete | View Details |
| 26 | 46031027000 CARBURETOR COVER VM24 | CARBURETOR COVER VM24 | 1 | — | Obsolete | View Details |
| 27 | 46031048044 COLD STARTER KNOB CPL. VM24 | COLD STARTER KNOB CPL. VM24 | 1 | $46.96 | Available | 1 |
| 28 | 46031030000 THROTTLE VALVE SPRING VM24 | THROTTLE VALVE SPRING VM24 | 1 | — | Obsolete | View Details |
| 31 | 46031081000 BRACKET FOR BREATHER HOSE | BRACKET FOR BREATHER HOSE | 1 | — | Obsolete | View Details |
| 33 | 46131017000 ADJUSTING SCREW MIKUNI | ADJUSTING SCREW MIKUNI | 1 | $11.65 | Available | 1 |
| 34 | 45031015000 SPRING | SPRING | 1 | $6.15 | Available | 1 |
| 35 | 46131032000 WASHER ADJUSTING SCREW | WASHER ADJUSTING SCREW | 1 | $2.99 | Available | 1 |
| 36 | 46131033000 O-RING ADJUSTING SCREW | O-RING ADJUSTING SCREW | 1 | $3.99 | Available | 1 |
| 42 | 44011076100 CABLE TIE 100/2,5MM BLACK | CABLE TIE 100/2,5MM BLACK | — | $1.99 | Available | 1 |
