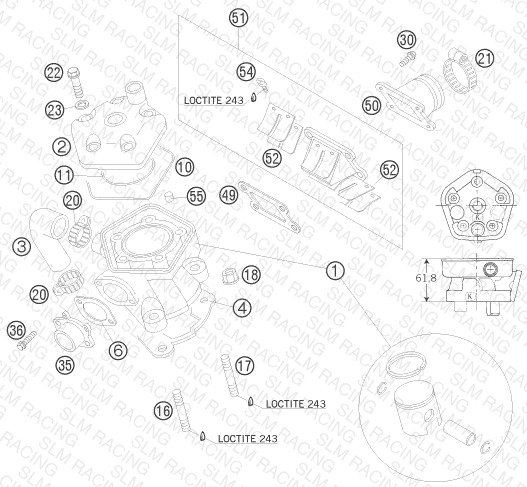

CYLINDER
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46030005600 CYLINDER W.PISTON 45MM 65SX 03 | CYLINDER W.PISTON 45MM 65SX 03 | 1 | — | Check availability | View Details |
| 2 | 46030006700 CYLINDERHEAD 65 SX 2003 | CYLINDERHEAD 65 SX 2003 | 1 | — | Check availability | View Details |
| 3 | 46035027000 PRE-FORM.HOSE CYL.-CLUTCH COV. | PRE-FORM.HOSE CYL.-CLUTCH COV. | 1 | — | Check availability | |
| 4 | 46030035020 CYLINDER BASE GASKET 0,2 MM | CYLINDER BASE GASKET 0,2 MM | 0 | — | Check availability | |
| 4 | 46030035040 CYLINDER BASE GASKET 0,4 MM | CYLINDER BASE GASKET 0,4 MM | 0 | — | Check availability | |
| 4 | 46030035050 CYLINDER BASE GASKET 0,5 MM | CYLINDER BASE GASKET 0,5 MM | 0 | — | Check availability | |
| 4 | 46030035060 CYLINDER BASE GASKET 0,6 MM | CYLINDER BASE GASKET 0,6 MM | 0 | — | Check availability | |
| 6 | 46030046000 EXHAUST GASKET 60/65 CCM | EXHAUST GASKET 60/65 CCM | 1 | — | Check availability | |
| 10 | 46030037000 O-RING 94,97X1,78 | O-RING 94,97X1,78 | 1 | — | Check availability | View Details |
| 11 | 46030036000 O-RING 53,7X1,78 VITON | O-RING 53,7X1,78 VITON | 1 | — | Check availability | View Details |
| 16 | 46030043000 STUD M8X41 | STUD M8X41 | 3 | — | Check availability | |
| 17 | 46030043100 STUD M8X44 | STUD M8X44 | 1 | — | Check availability | View Details |
| 18 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 4 | — | Check availability | |
| 20 | 10001020000 HOSE CLAMP GEMI 18-29 | HOSE CLAMP GEMI 18-29 | 2 | — | Check availability | View Details |
| 21 | 31001027000 HOSE CLAMP 32-52MM D5 | HOSE CLAMP 32-52MM D5 | 1 | — | Check availability | |
| 22 | 46030079100 CYLINDERHEADSCR.HH-M7X38 2003 | CYLINDERHEADSCR.HH-M7X38 2003 | 5 | — | Check availability | |
| 23 | 50230032010 CU-SEAL RING 7,3 X 12 X 0,5 | CU-SEAL RING 7,3 X 12 X 0,5 | 5 | — | Check availability | View Details |
| 30 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 4 | — | Check availability | View Details |
| 35 | 46036040100 EXHAUST FLANGE 65 SX 2002 | EXHAUST FLANGE 65 SX 2002 | 1 | — | Check availability | View Details |
| 36 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 2 | — | Check availability | View Details |
| 49 | 46030049000 INTAKE VALVE GASKET | INTAKE VALVE GASKET | 1 | — | Check availability | View Details |
| 50 | 46030050000 INTAKE FLANGE | INTAKE FLANGE | 1 | — | Check availability | View Details |
| 51 | 46030051144 MEMBRANE HOUSING CPL.65SX 2001 | MEMBRANE HOUSING CPL.65SX 2001 | 1 | — | Check availability | View Details |
| 52 | 46030052000 MEMBRANE LOOSE 60/65 CCM | MEMBRANE LOOSE 60/65 CCM | 2 | — | Check availability | View Details |
| 54 | 0985030063 FLAT HEAD SCREW DIN7985-M 3X6 | FLAT HEAD SCREW DIN7985-M 3X6 | 4 | — | Check availability | |
| 55 | 45130023000 DOWEL 7X9X10 | DOWEL 7X9X10 | 2 | — | Check availability | View Details |
