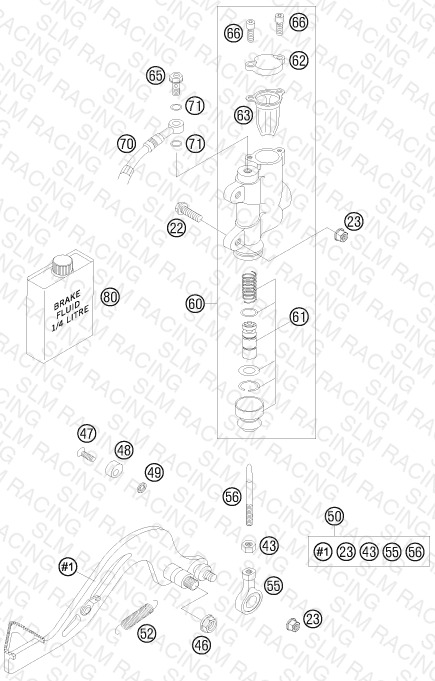

REAR BRAKE CONTROL
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 22 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | — | Check availability | |
| 23 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 3 | — | Check availability | |
| 43 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 46 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 1 | — | Check availability | |
| 47 | 0991060203 FLAT H.SCREW DIN7991-M6X20 | FLAT H.SCREW DIN7991-M6X20 | 1 | — | Check availability | View Details |
| 48 | 58303063000 BRAKE LEVER STOP '93 | BRAKE LEVER STOP '93 | 1 | — | Check availability | |
| 49 | 0797060003 TOOTH LOCK WASH. DIN6797-A 6,4 | TOOTH LOCK WASH. DIN6797-A 6,4 | 1 | — | Check availability | |
| 50 | 46003060233 BRAKE PEDAL LEVER CPL 2000 | BRAKE PEDAL LEVER CPL 2000 | 1 | — | Check availability | View Details |
| 52 | 54603062000 RETURN SPRING FOR BRAKELEVER | RETURN SPRING FOR BRAKELEVER | 1 | — | Check availability | View Details |
| 55 | 54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV. | SWIVEL HEAD M6 FOOT BRAKE LEV. | 1 | — | Check availability | |
| 56 | 54603068000 PRESSURE ROD ALU 250 '90 | PRESSURE ROD ALU 250 '90 | 1 | — | Check availability | |
| 60 | 46113060000 REAR BRAKE CYL. 50+65 04 | REAR BRAKE CYL. 50+65 04 | 1 | — | Check availability | |
| 61 | 47013061000 REP. SET PISTON REAR D=11 2003 | REP. SET PISTON REAR D=11 2003 | 1 | — | Check availability | |
| 62 | 47013062000 CYLINDER COVER REAR 85 SX 03 | CYLINDER COVER REAR 85 SX 03 | 1 | — | Check availability | |
| 63 | 47013063000 GASKET CYLINDER COVER REAR 03 | GASKET CYLINDER COVER REAR 03 | 1 | — | Check availability | |
| 65 | 46113325000 HOLLOW SCREW M6 | HOLLOW SCREW M6 | 1 | — | Check availability | |
| 66 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 2 | — | Check availability | |
| 70 | 46113070000 BRAKE HOSE REAR 65 SX 04 | BRAKE HOSE REAR 65 SX 04 | 1 | — | Check availability | |
| 71 | 0770060019 O-ring 6.00X1.00 FORMULA | O-ring 6.00X1.00 FORMULA | 2 | — | Check availability | |
| 80 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | — | Check availability |
