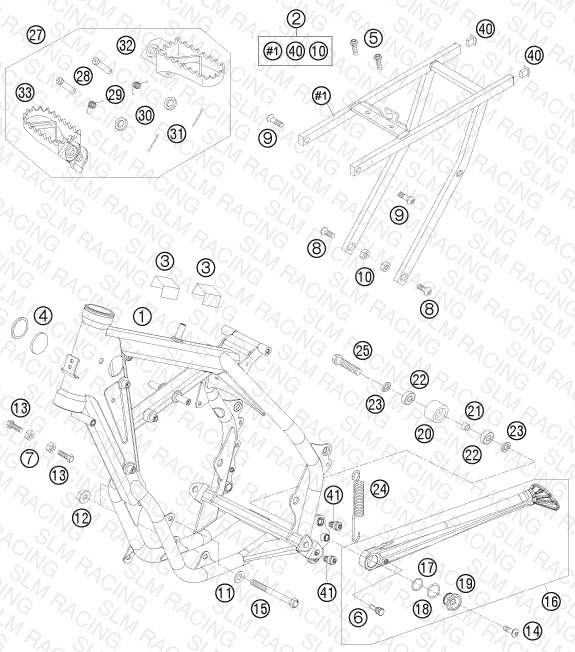

FRAME
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 4610300133330 FRAME 65 XC ''MF8R'' bl. | FRAME 65 XC ''MF8R'' bl. | 1 | — | Obsolete | View Details |
| 2 | 46103002044 SUB FRAME 65 SX 2002 | SUB FRAME 65 SX 2002 | 1 | $251.99 | Out of Stock | Notify Me |
| 3 | 58711054050 METAMOLL FOR BATTERY BRACKET | METAMOLL FOR BATTERY BRACKET | 2 | $2.99 | Available | 2 |
| 4 | 54606004000 PLUG 37MM | PLUG 37MM | 2 | $2.99 | Available | 2 |
| 5 | 0017060203 EJOT PT SCREW K60X20 WS=6 | EJOT PT SCREW K60X20 WS=6 | 2 | $2.99 | Available | 2 |
| 6 | 50303023152 BOLT SIDE ST.SPRING M5 EGS'98 | BOLT SIDE ST.SPRING M5 EGS'98 | 1 | $6.81 | Available | 1 |
| 7 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 8 | 54610052000 SPROCKET SCREW-AH M8X20 WS=6 | SPROCKET SCREW-AH M8X20 WS=6 | 2 | $2.99 | Available | 2 |
| 9 | 54510052100 SPROCKET SCREW-AH M8X26 WS=6 | SPROCKET SCREW-AH M8X26 WS=6 | 6 | $3.99 | Available | 6 |
| 10 | 0934080006 HEXAGON NUT DIN 934 M8 | HEXAGON NUT DIN 934 M8 | 2 | $2.99 | Available | 2 |
| 11 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 1 | $1.99 | Available | 1 |
| 12 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 3 | $3.99 | Available | 3 |
| 13 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | $3.99 | Available | 2 |
| 14 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 | COUNTER-SUNK SCREW ISA45 M8X26 | 6 | $3.99 | Available | 6 |
| 15 | 0931080805 HH SCREW DIN 931 M8X80 10.9 | HH SCREW DIN 931 M8X80 10.9 | 2 | $1.99 | Available | 2 |
| 16 | 46103023044 SIDE STAND CPL. 65 XC 08 | SIDE STAND CPL. 65 XC 08 | 1 | — | Obsolete | View Details |
| 17 | 0770125015 O-RING 12,5X1,5 NBR | O-RING 12,5X1,5 NBR | 1 | $2.99 | Available | 1 |
| 18 | 0770180020 o-ring 18.00x2.00 NBR70 | o-ring 18.00x2.00 NBR70 | 1 | $2.99 | Available | 1 |
| 18 | 50203053000 CHAIN ROLL D=30MM | CHAIN ROLL D=30MM | 1 | $7.91 | Available | 1 |
| 19 | 78003023080 SIDE STAND BUSHING EXC USA 08 | SIDE STAND BUSHING EXC USA 08 | 1 | $18.99 | Available | 1 |
| 20 | 50203053000 CHAIN ROLL D=30MM | CHAIN ROLL D=30MM | 1 | $7.91 | Available | 1 |
| 21 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 1 | $3.99 | Available | 1 |
| 22 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | $25.18 | Available | 2 |
| 23 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | $2.99 | Available | 2 |
| 24 | 50303024000 SIDESTAND SPRING 125-380EXC'98 | SIDESTAND SPRING 125-380EXC'98 | 1 | $7.69 | Available | 1 |
| 25 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | $3.62 | Available | 2 |
| 27 | 4610304013390A FOOTPEG L.+R. CPL. 65 SX 03 | FOOTPEG L.+R. CPL. 65 SX 03 | — | — | Obsolete | View Details |
| 28 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 29 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 30 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 31 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 32 | 5460304010090 FOOT PED L/S SILVER '98 | FOOT PED L/S SILVER '98 | 1 | — | Obsolete | View Details |
| 33 | 59003041050 FOOT PED R/S EXC SILVER 2000 | FOOT PED R/S EXC SILVER 2000 | 1 | $50.26 | Available | 1 |
| 40 | 50303002182 PLUG-IN CAP SW14 99 | PLUG-IN CAP SW14 99 | 2 | — | Obsolete | View Details |
| 41 | 78003023082 SIDE STAND STOP SCREW M10x30 | SIDE STAND STOP SCREW M10x30 | 2 | $4.99 | Available | 2 |
