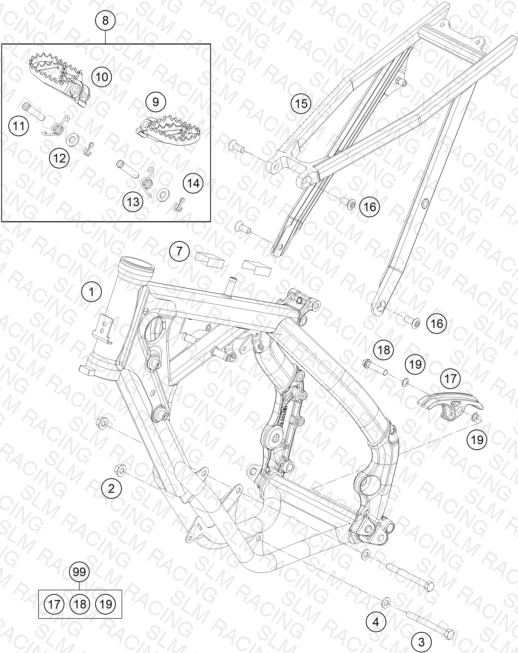

FRAME
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46203001300BE FRAME ''462O3'' ANTHRAZIT | FRAME ''462O3'' ANTHRAZIT | 1 | — | Obsolete | View Details |
| 2 | 06923080003 Hex. nut DIN EN 1661 M8 WS13 | Hex. nut DIN EN 1661 M8 WS13 | 6 | $2.99 | Available | 6 |
| 3 | 0931080805S HH SCREW DIN931 M8X80 SS | HH SCREW DIN931 M8X80 SS | 2 | $5.98 | Available | 2 |
| 4 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 1 | $1.99 | Available | 1 |
| 7 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 | ADH. FOIL TRANSP. 80X80 MM 04 | 2 | $2.99 | Available | 2 |
| 8 | 47103040033 FOOTREST CPL. 14 | FOOTREST CPL. 14 | 1 | $129.57 | Available | 1 |
| 9 | 47103040000 FOOTREST L/S | FOOTREST L/S | 1 | $51.58 | Available | 1 |
| 10 | 47103041000 FOOTREST R/S | FOOTREST R/S | 1 | $50.26 | Available | 1 |
| 11 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 12 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 13 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 14 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 15 | 46203002000 SUB FRAME 65 SX 2009 | SUB FRAME 65 SX 2009 | 1 | $250.46 | Available | 1 |
| 16 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 2 | $2.99 | Available | 2 |
| 17 | 77303053000 Chain sliding piece, bottom | Chain sliding piece, bottom | 1 | $11.10 | Available | 1 |
| 18 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 10 | $4.83 | Available | 10 |
| 19 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | $2.99 | Available | 2 |
| 99 | 77303053110 CHAIN SLIDING KIT BELOW 09-15 | CHAIN SLIDING KIT BELOW 09-15 | 1 | $15.61 | Available | 1 |
