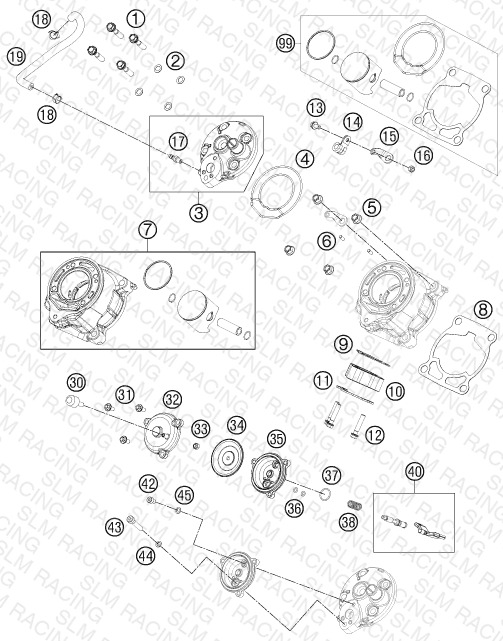

CYLINDER, CYLINDER HEAD
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50330079000 CYL. HEAD BOLT M 7X30 WS=10 | CYL. HEAD BOLT M 7X30 WS=10 | 6 | $3.99 | Available | 6 |
| 2 | 0603070121 CU-SEAL RING DIN7603- 7,3X12X1 | CU-SEAL RING DIN7603- 7,3X12X1 | 6 | $1.99 | Available | 6 |
| 3 | 46230006000 CYLINDER HEAD | CYLINDER HEAD | 1 | $170.25 | Available | 1 |
| 4 | 45230036000 CYLINDER HEAD GASKET | CYLINDER HEAD GASKET | 1 | $4.99 | Available | 1 |
| 5 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | $9.23 | Available | 1 |
| 6 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 7 | 46230038000 CYLINDER + PISTON | CYLINDER + PISTON | 1 | $577.49 | Available | 1 |
| 8 | 46230035020 CYLINDER BASE GASKET 0,2 MM | CYLINDER BASE GASKET 0,2 MM | — | $7.58 | Available | 1 |
| 8 | 46230035040 CYLINDER BASE GASKET 0,4 MM | CYLINDER BASE GASKET 0,4 MM | — | $7.58 | Available | 1 |
| 8 | 46230035050 CYLINDER BASE GASKET 0,5 MM | CYLINDER BASE GASKET 0,5 MM | — | $7.69 | Available | 1 |
| 8 | 46230035060 CYLINDER BASE GASKET 0,6MM | CYLINDER BASE GASKET 0,6MM | — | $8.13 | Available | 1 |
| 9 | 46205004000 EXHAUST PIPE FLANGE GASKET | EXHAUST PIPE FLANGE GASKET | 1 | $9.89 | Available | 1 |
| 10 | 46205003000 EXHAUST FLANGE | EXHAUST FLANGE | 1 | $28.37 | Available | 1 |
| 11 | 46205003050 BRACKET FOR SPRINGHOLDER | BRACKET FOR SPRINGHOLDER | 1 | $18.03 | Available | 1 |
| 12 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 13 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 1 | $1.99 | Available | 1 |
| 14 | 45001070000 BRAKE CABLE CLAMP RSGU 9/12 | BRAKE CABLE CLAMP RSGU 9/12 | 1 | $6.15 | Available | 1 |
| 15 | 46232060050 RETAINING PLATE CLUTCHHOSE | RETAINING PLATE CLUTCHHOSE | 1 | — | Obsolete | View Details |
| 16 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 2 | $2.99 | Available | 2 |
| 17 | 58336020190 VACUUM CONECTION M6/3MM '97 | VACUUM CONECTION M6/3MM '97 | 1 | $6.15 | Available | 1 |
| 18 | 45031005000 YDNAC-CLAMP FUEL HOSE (8MM) | YDNAC-CLAMP FUEL HOSE (8MM) | 2 | $1.99 | Available | 2 |
| 19 | 45237014000 HOSE | HOSE | 1 | — | Obsolete | View Details |
| 30 | 46237036044 VENTILATION CPL. | VENTILATION CPL. | 1 | $13.08 | Available | 1 |
| 31 | 0014050163 HH COLLAR SCREW M 5X16 WS=6 | HH COLLAR SCREW M 5X16 WS=6 | 2 | $2.99 | Available | 2 |
| 32 | 46237035000 CLOSING COVER | CLOSING COVER | 1 | $18.36 | Available | 1 |
| 34 | 46237013000 MEMBRANE | MEMBRANE | 1 | $51.47 | Available | 1 |
| 35 | 46237011000 FLANGE EXHAUST CONTROL | FLANGE EXHAUST CONTROL | 1 | $36.29 | Available | 1 |
| 36 | 0770030015 O-RING 3,00X1,50 NBR 70 | O-RING 3,00X1,50 NBR 70 | 2 | $2.99 | Available | 2 |
| 37 | 0770150151 O-RING 15,00X1,50 VITON | O-RING 15,00X1,50 VITON | 1 | $3.99 | Available | 1 |
| 38 | 46237074100 ADJ. SPRING - EXHAUST CONTROL | ADJ. SPRING - EXHAUST CONTROL | 1 | $3.99 | Available | 1 |
| 40 | 46237020144 CONTROL SLIDE CPL. | CONTROL SLIDE CPL. | 1 | $76.77 | Available | 1 |
| 42 | 0912050083 SHCS DIN 912 M5x8 | SHCS DIN 912 M5x8 | 1 | $1.99 | Available | 1 |
| 43 | 0012060303 AH SCREW DIN6912 M6X30 8.8 | AH SCREW DIN6912 M6X30 8.8 | 1 | $1.99 | Available | 1 |
| 44 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 45 | 0603050901 COPPERT GASKET 5X9X1 | COPPERT GASKET 5X9X1 | 1 | $2.99 | Available | 1 |
| 99 | 00050000202 PISTON KIT GR.I 65 SX/TC | PISTON KIT GR.I 65 SX/TC | — | $205.91 | Available | 1 |
| 99 | 00050000203 PISTON KIT GR.II 65 SX/TC | PISTON KIT GR.II 65 SX/TC | — | $205.91 | Available | 1 |
