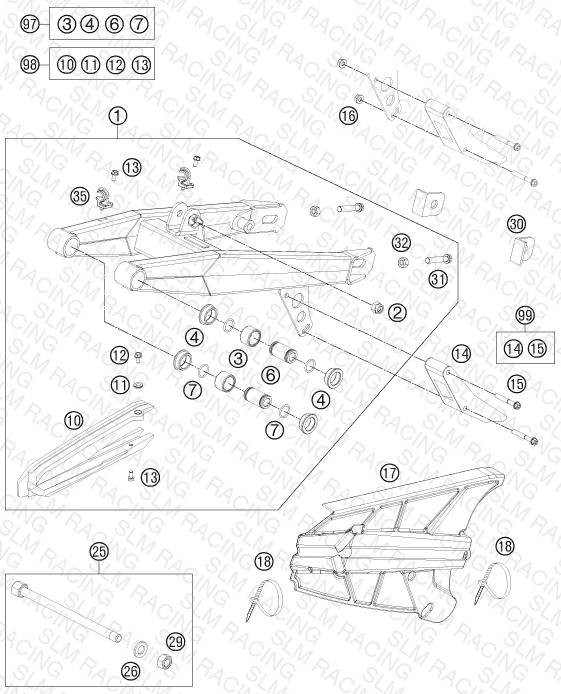

SWING ARM
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46104030144 SWING ARM CPL. 65 SX 2008 | SWING ARM CPL. 65 SX 2008 | 1 | — | Obsolete | View Details |
| 2 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 3 | 54603097000 Needle bushing HK 2016 / 20x26 | Needle bushing HK 2016 / 20x26 | 4 | $17.70 | Available | 4 |
| 4 | 46004030070 Spacer bushing 20X26X30X9.7 | Spacer bushing 20X26X30X9.7 | 4 | $3.99 | Available | 4 |
| 6 | 46004030071 Bearing bush 12x20x36.5 | Bearing bush 12x20x36.5 | 2 | $21.00 | Available | 2 |
| 7 | 0770160021 O-ring 16x2 Viton 75 | O-ring 16x2 Viton 75 | 4 | $3.99 | Available | 4 |
| 10 | 46104066000 CHAIN SLID. GUARD FRO. 65SX 02 | CHAIN SLID. GUARD FRO. 65SX 02 | 1 | $22.10 | Available | 1 |
| 11 | 46104066050 BUSH FOR CHAINSLIDER GUARD 02 | BUSH FOR CHAINSLIDER GUARD 02 | 2 | $9.78 | Available | 2 |
| 12 | 0010050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 2 | $2.99 | Available | 2 |
| 13 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K | EJOT SPIRAL SCREW SF M5X10-K | 2 | $2.99 | Available | 2 |
| 14 | 46007066000 CHAIN GUIDE REAR 60/65 '98 | CHAIN GUIDE REAR 60/65 '98 | 1 | $16.49 | Available | 1 |
| 15 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 16 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 1 | $2.99 | Available | 1 |
| 17 | 46104061000 CHAIN GUARD 08 | CHAIN GUARD 08 | 1 | $16.49 | Out of Stock | Notify Me |
| 18 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 3 | $2.99 | Available | 3 |
| 25 | 46204037033 SWINGARM BOLT CPL. 201MM | SWINGARM BOLT CPL. 201MM | 1 | $54.66 | Available | 1 |
| 26 | 0125120003 FLAT WASHER DIN0125-A13 | FLAT WASHER DIN0125-A13 | 2 | $1.99 | Available | 2 |
| 29 | 0934120103 Nut M12x1 h10 WAF19 DIN 934 | Nut M12x1 h10 WAF19 DIN 934 | 1 | $2.99 | Available | 1 |
| 30 | 46010083000 CHAIN ADJUSTER 60/65 '98 | CHAIN ADJUSTER 60/65 '98 | 2 | $16.49 | Available | 2 |
| 31 | 50203030090 HH SCREW M8X40 WS=10 | HH SCREW M8X40 WS=10 | 2 | $4.99 | Available | 2 |
| 32 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 35 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE'96 | RETAIN.CLAMP FOR BRAKE HOSE'96 | 2 | $2.99 | Available | 2 |
| 97 | 45204230010 SWINGARM REP. KIT 50/65 SX | SWINGARM REP. KIT 50/65 SX | 1 | $77.43 | Available | 1 |
| 98 | 46104066010 CHAIN GUARD KIT 09-14 | CHAIN GUARD KIT 09-14 | 1 | $29.25 | Available | 1 |
| 99 | 46007066010 CHAIN GUIDE KIT REAR 09-14 | CHAIN GUIDE KIT REAR 09-14 | 1 | $18.47 | Available | 1 |
