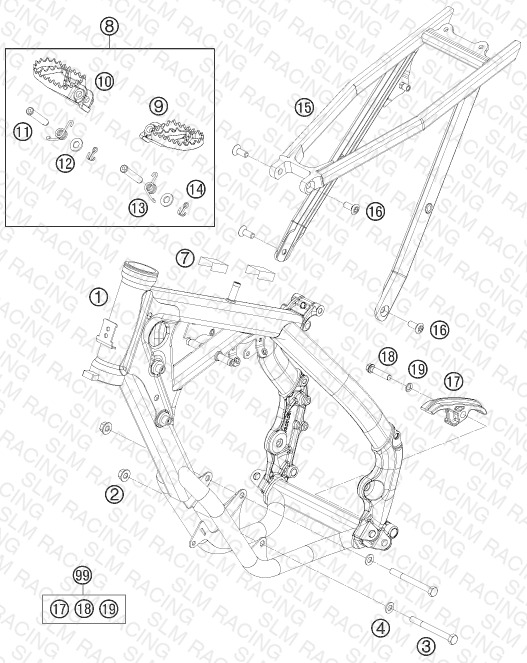

FRAME

Parts (18)

#	Part Number	Description	Qty	Price	Status
1	4620300124433 FRAME ''462L3''	FRAME ''462L3''	1	—	Obsolete	View Details
2	54310086200 Self locking nut M8 10.9	Self locking nut M8 10.9	3	$3.99	Available	3
3	0931080805 HH SCREW DIN 931 M8X80 10.9	HH SCREW DIN 931 M8X80 10.9	2	$1.99	Available	2
4	0125080003 washer DIN 125 A -8.4	washer DIN 125 A -8.4	1	$1.99	Available	1
7	50307012000 ADH. FOIL TRANSP. 80X80 MM 04	ADH. FOIL TRANSP. 80X80 MM 04	2	$2.99	Available	2
8	4700304003390 FOOTPEG L.+R. CPL. 85 SX 03	FOOTPEG L.+R. CPL. 85 SX 03	1	$129.57	Available	1
9	59003040050 FOOT PED L/S EXC SILVER 00	FOOT PED L/S EXC SILVER 00	1	$51.58	Available	1
10	59003041050 FOOT PED R/S EXC SILVER 2000	FOOT PED R/S EXC SILVER 2000	1	$50.26	Available	1
11	54803044000 PIN FOR FOOT PED 51.5X9.8 MM	PIN FOR FOOT PED 51.5X9.8 MM	2	$14.62	Available	2
12	0125100003 washer DIN 125 A 10.5	washer DIN 125 A 10.5	2	$2.99	Available	2
13	54603041000 FOOTREST SPRING L/S & R/S	FOOTREST SPRING L/S & R/S	2	$6.15	Available	2
14	0094032253 PIN DIN0094-3,2X25 STEEL	PIN DIN0094-3,2X25 STEEL	2	$1.99	Available	2
15	46203002000 SUB FRAME 65 SX 2009	SUB FRAME 65 SX 2009	1	$250.46	Available	1
16	0019080206S FLAT HEAD SCREW M. ISA45 M8X20	FLAT HEAD SCREW M. ISA45 M8X20	2	$2.99	Available	2
17	77303053000 Chain sliding piece, bottom	Chain sliding piece, bottom	1	$11.10	Available	1
18	0025080356 HH collar screw M8x35 TX40	HH collar screw M8x35 TX40	10	$4.83	Available	10
19	36003014000 LOCK WASHER 8MM	LOCK WASHER 8MM	2	$2.99	Available	2
99	77303053110 CHAIN SLIDING KIT BELOW 09-15	CHAIN SLIDING KIT BELOW 09-15	1	$15.61	Available	1
