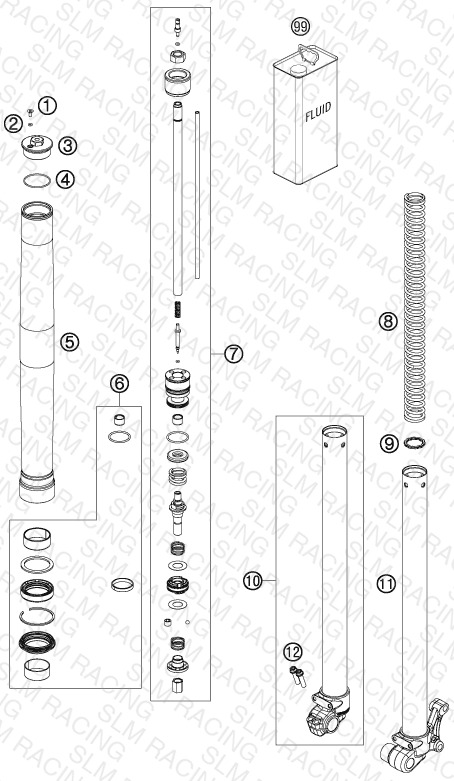

FRONT FORK DISASSEMBLED
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 48600481 Cross countersunk head screw M | Cross countersunk head screw M | 2 | $2.41 | Available | 2 |
| 2 | 48600046 O-ring 3x1,5 NBR70 | O-ring 3x1,5 NBR70 | 2 | $1.99 | Available | 2 |
| 3 | 35480496S SCREW CAP M38X1,5 ADJ. REB | SCREW CAP M38X1,5 ADJ. REB | 1 | — | Obsolete | View Details |
| 3 | 35480496S1 SCREW CAP M38X1,5 ADJ. COM | SCREW CAP M38X1,5 ADJ. COM | 1 | — | Obsolete | View Details |
| 4 | 46180581 O-ring 35x1,5 NBR70 yellow | O-ring 35x1,5 NBR70 yellow | 2 | $2.41 | Available | 2 |
| 5 | 35480472 Fork outer tube 36x465 dt44 db | Fork outer tube 36x465 dt44 db | 2 | $248.59 | Available | 2 |
| 6 | R703 REPAIR KIT 50SX 2012 | REPAIR KIT 50SX 2012 | 1 | $103.61 | Available | 1 |
| 7 | 35480477S PISTON ROD L/S CPL. | PISTON ROD L/S CPL. | 1 | — | Obsolete | View Details |
| 7 | 35480477S3 PISTON ROD R/S CPL. | PISTON ROD R/S CPL. | 1 | — | Obsolete | View Details |
| 8 | 95010044S SPRING 2,8N/MM D3,6 SET | SPRING 2,8N/MM D3,6 SET | 1 | $153.99 | Available | 1 |
| 8 | 95010056S SPRING 2,6 N/MM SET | SPRING 2,6 N/MM SET | — | $153.99 | Available | 1 |
| 8 | 95010057S SPRING 3,0 N/MM SET | SPRING 3,0 N/MM SET | — | $153.99 | Available | 1 |
| 9 | 35480497 Washer 22x30x2,5 | Washer 22x30x2,5 | — | $1.20 | Available | 1 |
| 10 | 35480455S2 AXLE CLAMP KTM 65SXR/S.CPL. | AXLE CLAMP KTM 65SXR/S.CPL. | 1 | $384.55 | Available | 1 |
| 11 | 35480466S2 AXLE CLAMP KTM 65SX L/S CPL. | AXLE CLAMP KTM 65SX L/S CPL. | 1 | — | Obsolete | View Details |
| 12 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | $3.99 | Available | 4 |
| 99 | 48600765 FORK OIL SAE5 | FORK OIL SAE5 | 1 | — | Obsolete | View Details |
