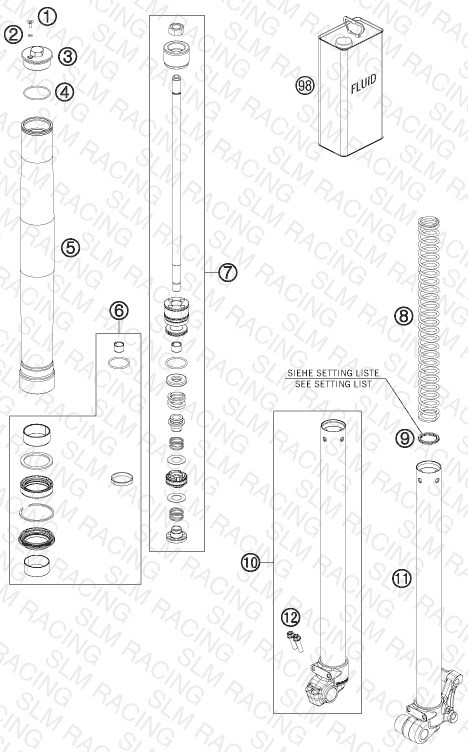

FRONT FORK DISASSEMBLED
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 48600481 Cross countersunk head screw M | Cross countersunk head screw M | 2 | $2.41 | Available | 2 |
| 2 | 48600046 O-ring 3x1,5 NBR70 | O-ring 3x1,5 NBR70 | 2 | $1.99 | Available | 2 |
| 3 | 35480459 Screw cap M38x1,5 | Screw cap M38x1,5 | 2 | $26.76 | Out of Stock | Notify Me |
| 4 | 46180581 O-ring 35x1,5 NBR70 yellow | O-ring 35x1,5 NBR70 yellow | 2 | $2.41 | Available | 2 |
| 5 | 35480453 OUTER TUBE L=425 | OUTER TUBE L=425 | 2 | $201.48 | Out of Stock | Notify Me |
| 6 | R703 REPAIR KIT 50SX 2012 | REPAIR KIT 50SX 2012 | 1 | $103.70 | Obsolete | View Details |
| 7 | 35480462S1 PISTON ROD 50SX CPL. | PISTON ROD 50SX CPL. | 2 | $171.79 | Out of Stock | Notify Me |
| 8 | 95010055S SPRING 1,8 N/MM SET | SPRING 1,8 N/MM SET | 0 | $149.99 | Available | 1 |
| 8 | 95010051S SPRING 2.0N/MM SET D=3.1MM | SPRING 2.0N/MM SET D=3.1MM | 2 | $149.99 | Available | 2 |
| 8 | 95010052S SPRING 2,2 N/MM SET | SPRING 2,2 N/MM SET | 0 | $149.99 | Available | 1 |
| 9 | 35480497 Washer 22x30x2,5 | Washer 22x30x2,5 | 0 | $1.20 | Available | 1 |
| 10 | 35480455S1 AXLE CLAMP R/S CPL. W. TUBE | AXLE CLAMP R/S CPL. W. TUBE | 1 | $247.89 | Obsolete | View Details |
| 11 | 35480456S1 AXLE CLAMP L/S CPL. W. TUBE | AXLE CLAMP L/S CPL. W. TUBE | 1 | $384.55 | Available | 1 |
| 12 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 2 | $3.99 | Available | 2 |
| 98 | 48600765 FORK OIL SAE5 | FORK OIL SAE5 | 1 | — | Check availability |
