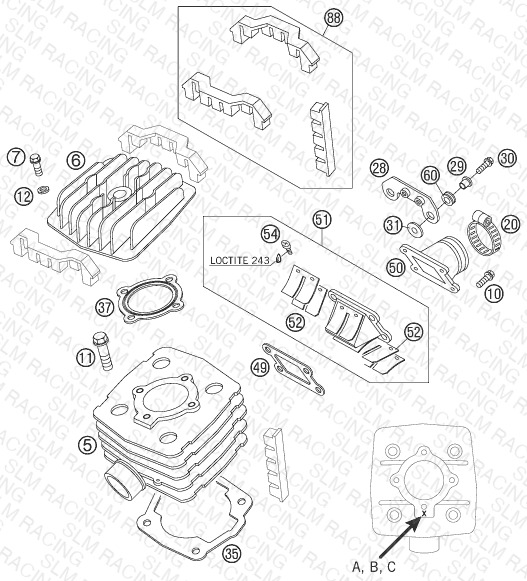

CYLINDER, CYLINDER HEAD
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | 45130505100 A CYLINDER 39,5MM ''A'' 50 08 | CYLINDER 39,5MM ''A'' 50 08 | 0 | — | Check availability | View Details |
| 5 | 45130505100 B CYLINDER 39,5MM ''B'' 50 2008 | CYLINDER 39,5MM ''B'' 50 2008 | 0 | — | Check availability | View Details |
| 5 | 45130505100 C CYLINDER 39,5MM ''C'' 50 2008 | CYLINDER 39,5MM ''C'' 50 2008 | 0 | — | Check availability | View Details |
| 6 | 45130506100 CYLINDER HEAD 50 GS 2002 | CYLINDER HEAD 50 GS 2002 | 1 | — | Check availability | |
| 7 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 4 | — | Check availability | View Details |
| 10 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 2 | — | Check availability | View Details |
| 11 | 0015080203 HH COLLAR SCREW M 8X20 WS=10 | HH COLLAR SCREW M 8X20 WS=10 | 4 | — | Check availability | View Details |
| 12 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 4 | — | Check availability | |
| 20 | 10001120000 Hose clamp 25-40 SGT 4 | Hose clamp 25-40 SGT 4 | 1 | — | Check availability | |
| 28 | 45139028000 BRACKET IGNITI. COIL 50LC 2001 | BRACKET IGNITI. COIL 50LC 2001 | 1 | — | Check availability | View Details |
| 29 | 45139128000 COLLAR BUSHING 6,3X8X7,5 | COLLAR BUSHING 6,3X8X7,5 | 2 | — | Check availability | View Details |
| 30 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 2 | — | Check availability | View Details |
| 31 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 2 | — | Check availability | |
| 35 | 46030035020 CYLINDER BASE GASKET 0,2 MM | CYLINDER BASE GASKET 0,2 MM | 0 | — | Check availability | |
| 35 | 46030035050 CYLINDER BASE GASKET 0,5 MM | CYLINDER BASE GASKET 0,5 MM | 0 | — | Check availability | |
| 37 | 45130537000 CYLINDER HEAD GASKET 50 AC 02 | CYLINDER HEAD GASKET 50 AC 02 | 1 | — | Check availability | View Details |
| 49 | 46030049000 INTAKE VALVE GASKET | INTAKE VALVE GASKET | 1 | — | Check availability | View Details |
| 50 | 45130050000 INLET MANIFOLD 50CCM LC 2001 | INLET MANIFOLD 50CCM LC 2001 | 1 | — | Check availability | |
| 51 | 46030051144 MEMBRANE HOUSING CPL.65SX 2001 | MEMBRANE HOUSING CPL.65SX 2001 | 1 | — | Check availability | View Details |
| 52 | 46030052000 MEMBRANE LOOSE 60/65 CCM | MEMBRANE LOOSE 60/65 CCM | 2 | — | Check availability | View Details |
| 54 | 0985030063 FLAT HEAD SCREW DIN7985-M 3X6 | FLAT HEAD SCREW DIN7985-M 3X6 | 4 | — | Check availability | |
| 60 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 2 | — | Check availability | |
| 88 | 45130588000 DAMPING RUBBER-SET 2002 | DAMPING RUBBER-SET 2002 | 1 | — | Check availability |
