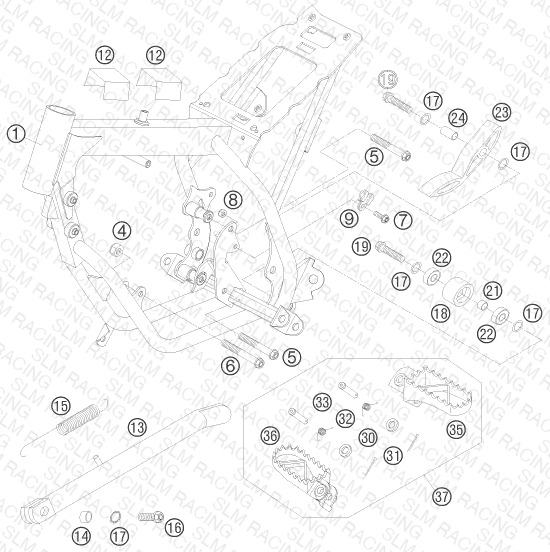

FRAME
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 4510300150030 FRAME ADVENTURE GS ''MF3R''bl. | FRAME ADVENTURE GS ''MF3R''bl. | 1 | — | Check availability | View Details |
| 4 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 1 | — | Check availability | |
| 5 | 0025080606 HH COLLAR SCREW M8x60 TX40 | HH COLLAR SCREW M8x60 TX40 | 2 | — | Check availability | |
| 6 | 0025080656 HH collar screw M8x65 TX40 | HH collar screw M8x65 TX40 | 1 | — | Check availability | |
| 7 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 1 | — | Check availability | |
| 8 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 1 | — | Check availability | |
| 9 | 45001070000 BRAKE CABLE CLAMP RSGU 9/12 | BRAKE CABLE CLAMP RSGU 9/12 | 1 | — | Check availability | |
| 12 | 58711054050 METAMOLL FOR BATTERY BRACKET | METAMOLL FOR BATTERY BRACKET | 2 | — | Check availability | |
| 13 | 4510302310090 SIDE STAND L=270MM SILVER 02 | SIDE STAND L=270MM SILVER 02 | 1 | — | Check availability | View Details |
| 14 | 45103023250 BUSHING FOR SIDE STAND 02 | BUSHING FOR SIDE STAND 02 | 1 | — | Check availability | |
| 15 | 51003021000 SIDESTAND SPRING LONG | SIDESTAND SPRING LONG | 1 | — | Check availability | |
| 16 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 1 | — | Check availability | |
| 17 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 5 | — | Check availability | |
| 18 | 50203053000 CHAIN ROLL D=30MM | CHAIN ROLL D=30MM | 1 | — | Check availability | |
| 19 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | — | Check availability | |
| 21 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 1 | — | Check availability | |
| 22 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | — | Check availability | |
| 23 | 51103053000 CHAIN SLIDING PIECE BELOW '97 | CHAIN SLIDING PIECE BELOW '97 | 1 | — | Check availability | |
| 24 | 51103053051 BUSHING 8,2X10X20 | BUSHING 8,2X10X20 | 1 | — | Check availability | |
| 30 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 31 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 32 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | — | Check availability | |
| 33 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | — | Check availability | |
| 35 | 5460304000090 FOOT REST L/S SILVER | FOOT REST L/S SILVER | 1 | — | Check availability | View Details |
| 36 | 5460314000090 FOOT REST R/S SILVER '98 | FOOT REST R/S SILVER '98 | 1 | — | Check availability | View Details |
| 37 | 4510304013390A FOOTPEG L.+R. CPL. MINI 03 | FOOTPEG L.+R. CPL. MINI 03 | 0 | — | Check availability |
