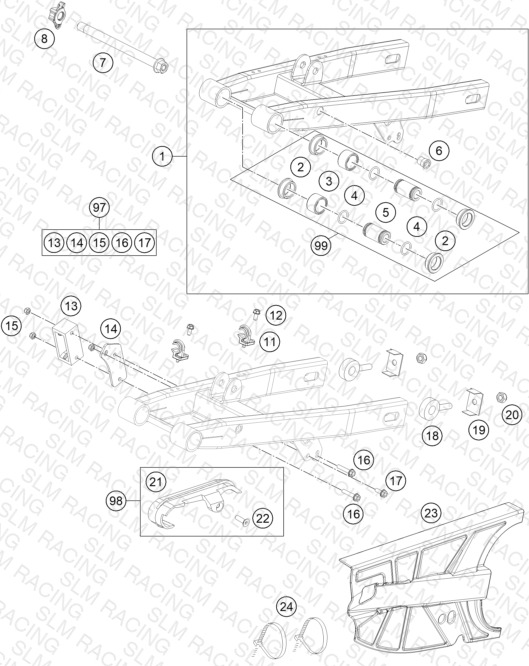

SWING ARM
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 45204030033 SWING ARM CPL. 50SX 09(MB9S) | SWING ARM CPL. 50SX 09(MB9S) | 1 | — | Check availability | View Details |
| 2 | 46004030070 Spacer bushing 20X26X30X9.7 | Spacer bushing 20X26X30X9.7 | 4 | — | Check availability | |
| 3 | 54603097000 Needle bushing HK 2016 / 20x26 | Needle bushing HK 2016 / 20x26 | 2 | — | Check availability | |
| 4 | 0770160021 O-ring 16x2 Viton 75 | O-ring 16x2 Viton 75 | 4 | — | Check availability | |
| 5 | 46004030071 Bearing bush 12x20x36.5 | Bearing bush 12x20x36.5 | 2 | — | Check availability | |
| 6 | 55003139900 BLIND RIVET THREAD M6 STE. 4MM | BLIND RIVET THREAD M6 STE. 4MM | 1 | — | Check availability | |
| 7 | 45103014144 SWING ARM BOLT CPL. 2004 | SWING ARM BOLT CPL. 2004 | 1 | — | Check availability | View Details |
| 8 | 45404038000 Nut with anti-rotation lock | Nut with anti-rotation lock | 1 | — | Check availability | |
| 11 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE'96 | RETAIN.CLAMP FOR BRAKE HOSE'96 | 2 | — | Check availability | |
| 12 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K | EJOT SPIRAL SCREW SF M5X10-K | 2 | — | Check availability | |
| 13 | 45004070000 CHAIN GUIDE REAR | CHAIN GUIDE REAR | 1 | — | Check availability | |
| 14 | 45104170000 BRACKET FOR CHAIN GUARD 02 | BRACKET FOR CHAIN GUARD 02 | 1 | — | Check availability | |
| 15 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 3 | — | Check availability | |
| 16 | 0025050306 HH COLLAR SCREW M5X30 TX30 | HH COLLAR SCREW M5X30 TX30 | 2 | — | Check availability | |
| 17 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 1 | — | Check availability | |
| 18 | 45010083000 CHAIN ADJUSTER | CHAIN ADJUSTER | 2 | — | Check availability | |
| 19 | 45010083060 SUPPORTING BRACKET | SUPPORTING BRACKET | 2 | — | Check availability | |
| 20 | 0985080003 SELF LOCKING NUT DIN0985-M 8 | SELF LOCKING NUT DIN0985-M 8 | 2 | — | Check availability | |
| 21 | 45204066000 CHAIN SLIDING GUARD | CHAIN SLIDING GUARD | 1 | — | Check availability | |
| 22 | 0991060202 Flat head screw DIN7991 M6X20 | Flat head screw DIN7991 M6X20 | 1 | — | Check availability | |
| 23 | 45104061000 CHAINGUARD JUNOIR 08 | CHAINGUARD JUNOIR 08 | 1 | — | Check availability | |
| 24 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 2 | — | Check availability | |
| 97 | 45104070044 CHAIN GUIDE KIT MINI 04-11 | CHAIN GUIDE KIT MINI 04-11 | 1 | — | Check availability | |
| 98 | 45204066010 CHAIN GUARD KIT 50 SX | CHAIN GUARD KIT 50 SX | 1 | — | Check availability | |
| 99 | 45204230010 SWINGARM REP. KIT 50/65 SX | SWINGARM REP. KIT 50/65 SX | 1 | — | Check availability | View Details |
