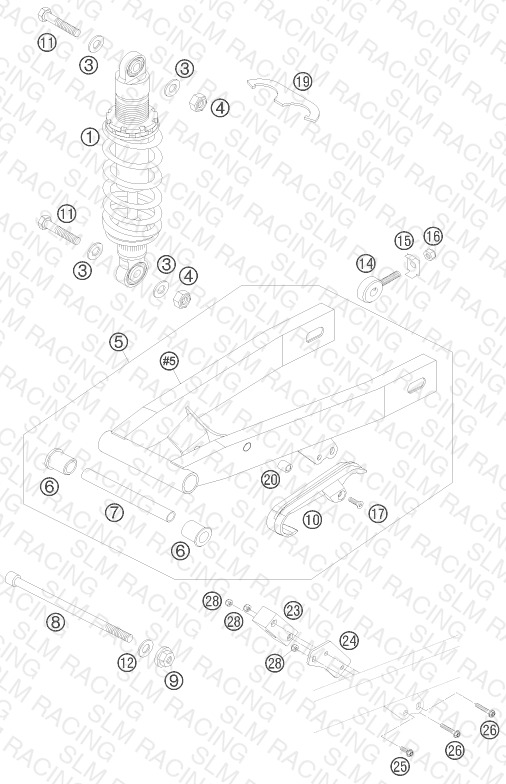

SWING ARM
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 03189D01 MONOSHOCK 50 SX JUNIOR 08 | MONOSHOCK 50 SX JUNIOR 08 | 1 | — | Check availability | View Details |
| 3 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 4 | — | Check availability | |
| 4 | 0982100003 SELF LOCK.NUT DIN0982-M10 HIGH | SELF LOCK.NUT DIN0982-M10 HIGH | 2 | — | Check availability | |
| 5 | 45104030044 SWINGARM CPL. JUN. ADV.+LC 02 | SWINGARM CPL. JUN. ADV.+LC 02 | 1 | — | Check availability | View Details |
| 6 | 45004031000 BUSHING BOX L=30 MM | BUSHING BOX L=30 MM | 2 | — | Check availability | |
| 7 | 45004039000 SPACING TUBE 10X13X140 MM | SPACING TUBE 10X13X140 MM | 1 | — | Check availability | View Details |
| 8 | 45103014000 SWING ARM BOLT M10X158,5 02 | SWING ARM BOLT M10X158,5 02 | 1 | — | Check availability | |
| 9 | 49009082000 flanged hex nut DIN 6927 M10 W | flanged hex nut DIN 6927 M10 W | 1 | — | Check availability | |
| 10 | 45104066000 CHAIN SLID. GUARD FRO. MINI 02 | CHAIN SLID. GUARD FRO. MINI 02 | 1 | — | Check availability | View Details |
| 11 | 0931100453 HH SCREW DIN0931-M10X45 | HH SCREW DIN0931-M10X45 | 2 | — | Check availability | |
| 12 | 31004001100 WASHER 10,5 X 21 X 3 | WASHER 10,5 X 21 X 3 | 1 | — | Check availability | View Details |
| 14 | 45010083000 CHAIN ADJUSTER | CHAIN ADJUSTER | 2 | — | Check availability | |
| 15 | 45010083060 SUPPORTING BRACKET | SUPPORTING BRACKET | 2 | — | Check availability | |
| 16 | 0985080003 SELF LOCKING NUT DIN0985-M 8 | SELF LOCKING NUT DIN0985-M 8 | 2 | — | Check availability | |
| 17 | 0991060203 FLAT H.SCREW DIN7991-M6X20 | FLAT H.SCREW DIN7991-M6X20 | 1 | — | Check availability | View Details |
| 19 | 45004010090 HOOK WRENCH 50 SXR | HOOK WRENCH 50 SXR | 1 | — | Check availability | View Details |
| 20 | 55003139900 BLIND RIVET THREAD M6 STE. 4MM | BLIND RIVET THREAD M6 STE. 4MM | 1 | — | Check availability | |
| 23 | 45004070000 CHAIN GUIDE REAR | CHAIN GUIDE REAR | 1 | — | Check availability | |
| 24 | 45104170000 BRACKET FOR CHAIN GUARD 02 | BRACKET FOR CHAIN GUARD 02 | 1 | — | Check availability | |
| 25 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 1 | — | Check availability | |
| 26 | 0025050306 HH COLLAR SCREW M5X30 TX30 | HH COLLAR SCREW M5X30 TX30 | 2 | — | Check availability | |
| 28 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 3 | — | Check availability |
