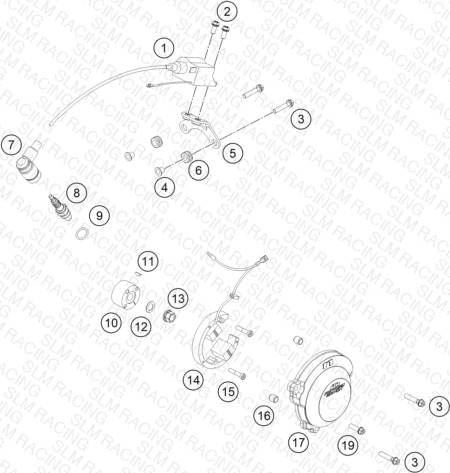

IGNITION SYSTEM
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 45239006100 IGNITION COIL | IGNITION COIL | 1 | $138.26 | Available | 1 |
| 2 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 3 | $3.99 | Available | 3 |
| 3 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 4 | 45239060050 COLLAR BUSHING 6,3X8X13X9,5 | COLLAR BUSHING 6,3X8X13X9,5 | 2 | $6.15 | Available | 2 |
| 5 | 45239010000 IGNIT. COIL RETAIN. PLATE CPL. | IGNIT. COIL RETAIN. PLATE CPL. | 1 | $23.75 | Backorder — Restocking | 1 |
| 6 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 2 | $2.99 | Available | 2 |
| 7 | 46239090000 SPARK PLUG CONNECTOR | SPARK PLUG CONNECTOR | 1 | $40.14 | Available | 1 |
| 8 | 45239093000 SPARK PLUG | SPARK PLUG | 1 | $8.24 | Available | 1 |
| 9 | 0770012030 O-RING 12,00X3,0 VITON 75 | O-RING 12,00X3,0 VITON 75 | 1 | $3.99 | Available | 1 |
| 10 | 45139005100 FLYWEEL ROTOR 50 2004 | FLYWEEL ROTOR 50 2004 | 1 | $79.96 | Available | 1 |
| 11 | 0888025030 WOODRUFF KEY DIN6888-2,5X3 | WOODRUFF KEY DIN6888-2,5X3 | 1 | $4.99 | Available | 1 |
| 12 | 45132020000 WASHER 10,4X16,8X0,4 | WASHER 10,4X16,8X0,4 | 1 | $4.99 | Available | 1 |
| 13 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | $2.99 | Available | 2 |
| 14 | 45139004000 FLYWHEEL STATOR 50CCM LC 2001 | FLYWHEEL STATOR 50CCM LC 2001 | 1 | $162.35 | Available | 1 |
| 15 | 0012050253 AH SCREW DIN6912 M5X25 | AH SCREW DIN6912 M5X25 | 2 | $1.99 | Available | 2 |
| 16 | 45230024000 DOWEL 9,8X7X5.5 | DOWEL 9,8X7X5.5 | 2 | $3.99 | Available | 2 |
| 17 | 45330302000 Factory ignition cover | Factory ignition cover | 1 | $188.99 | Available | 1 |
| 19 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 6 | $3.99 | Available | 6 |
