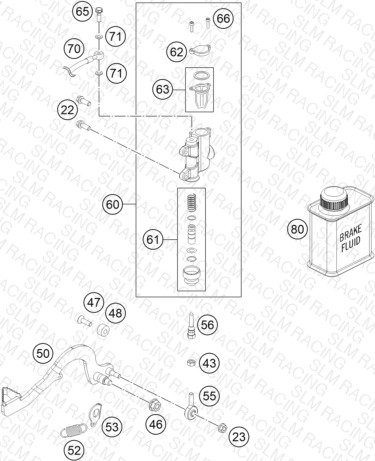

REAR BRAKE CONTROL
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 22 | 59009062019 SPECIAL SCREW M6X19 WS=8 10.9 | SPECIAL SCREW M6X19 WS=8 10.9 | 1 | $2.99 | Available | 1 |
| 23 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 1 | $2.99 | Available | 1 |
| 43 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 46 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 3 | $3.99 | Available | 3 |
| 47 | 0991060202 Flat head screw DIN7991 M6X20 | Flat head screw DIN7991 M6X20 | 6 | $2.99 | Available | 6 |
| 48 | 45203063000 BRAKE LEVER STOP | BRAKE LEVER STOP | 1 | $32.55 | Available | 1 |
| 50 | 45213050000 FOOT BRAKE LEVER | FOOT BRAKE LEVER | 1 | $113.49 | Backorder — Restocking | 1 |
| 52 | 54603062100 RETURN SPRING FOR BRAKE LEVER | RETURN SPRING FOR BRAKE LEVER | 1 | $7.69 | Available | 1 |
| 53 | 45213053000 LOCK WASHER 50 SX | LOCK WASHER 50 SX | 1 | $7.58 | Available | 1 |
| 55 | 46213055000 Heim joint KA6 INNOX | Heim joint KA6 INNOX | 1 | $51.36 | Available | 1 |
| 56 | 46213056000 PUSH ROD | PUSH ROD | 1 | $14.84 | Available | 1 |
| 60 | 46113060000 REAR BRAKE CYL. 50+65 04 | REAR BRAKE CYL. 50+65 04 | 1 | $178.96 | Available | 1 |
| 61 | 47013061000 REP. SET PISTON REAR D=11 2003 | REP. SET PISTON REAR D=11 2003 | — | $49.60 | Available | 1 |
| 62 | 47013062000 CYLINDER COVER REAR 85 SX 03 | CYLINDER COVER REAR 85 SX 03 | 1 | $10.44 | Available | 1 |
| 63 | 47013063000 GASKET CYLINDER COVER REAR 03 | GASKET CYLINDER COVER REAR 03 | 1 | $12.64 | Available | 1 |
| 65 | 46113325000 HOLLOW SCREW M6 | HOLLOW SCREW M6 | 1 | $23.09 | Available | 1 |
| 66 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 2 | $2.99 | Available | 2 |
| 70 | 45113170000 BRAKE HOSE REAR 50 LC 04 | BRAKE HOSE REAR 50 LC 04 | 1 | $74.46 | Available | 1 |
| 71 | 0770060019 O-ring 6.00X1.00 FORMULA | O-ring 6.00X1.00 FORMULA | 2 | $2.99 | Available | 2 |
| 80 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | $13.99 | Available | 1 |
