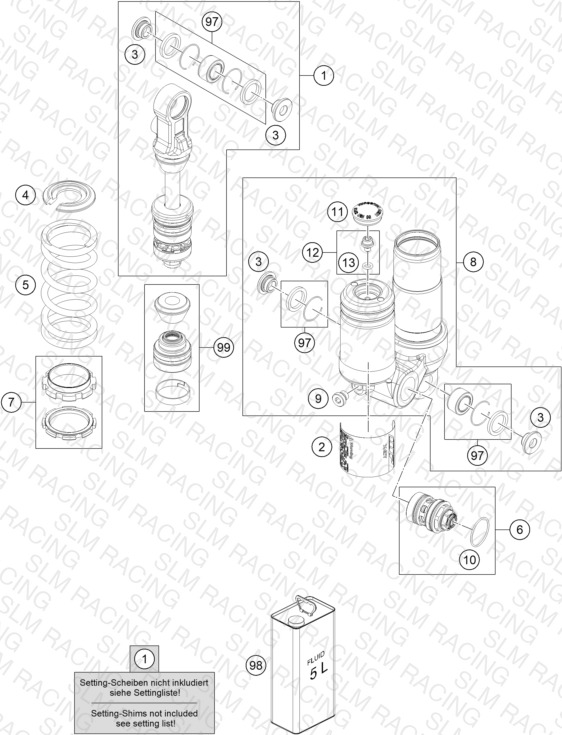

SHOCK ABSORBER DISASSEMBLED
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 36120781S17 bottom part cpl. | bottom part cpl. | 1 | $409.96 | Available | 1 |
| 2 | 52000263 sticker XACT 90x40 | sticker XACT 90x40 | 1 | $31.45 | Available | 1 |
| 3 | 46180009 Distance bush 10x15/18/24,5x9, | Distance bush 10x15/18/24,5x9, | 4 | $4.83 | Available | 4 |
| 4 | 36120386 Spring retainer 27x57x2 | Spring retainer 27x57x2 | 1 | $31.78 | Available | 1 |
| 5 | 93010217S SHOCK SPRING 35N/MM - 130MM WH | SHOCK SPRING 35N/MM - 130MM WH | — | $153.99 | Available | 1 |
| 5 | 93010218S SHOCK SPRING 30N/MM - 130MM WH | SHOCK SPRING 30N/MM - 130MM WH | 1 | $153.99 | Available | 1 |
| 5 | 93010219S SHOCK SPRING 40N/MM - 130MM WH | SHOCK SPRING 40N/MM - 130MM WH | — | $153.99 | Available | 1 |
| 5 | 93010227 Spring (47) 25-130,0 shock whi | Spring (47) 25-130,0 shock whi | — | $153.99 | Available | 1 |
| 6 | 50181101S38 compression cpl. | compression cpl. | 1 | $109.55 | Available | 1 |
| 7 | 36120418S ADJUSTING NUT CPL. | ADJUSTING NUT CPL. | 1 | $41.35 | Available | 1 |
| 8 | 36120858S2 Top part cmpl. | Top part cmpl. | 1 | $472.99 | Available | 1 |
| 9 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | $2.85 | Available | 1 |
| 10 | 50180217 O-ring 27x1,5 Viton70 green IS | O-ring 27x1,5 Viton70 green IS | 1 | $2.41 | Available | 1 |
| 11 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | $3.62 | Available | 1 |
| 12 | 36120151S PLUG SCREW M5X6 CPL. | PLUG SCREW M5X6 CPL. | 1 | $4.83 | Available | 1 |
| 13 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | $0.76 | Available | 1 |
| 97 | R12012 Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 1 | $42.01 | Available | 1 |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | $175.99 | Available | 1 |
| 99 | RP10003 REP. KIT MONOSHOCK MINI 17 | REP. KIT MONOSHOCK MINI 17 | 1 | $97.01 | Available | 1 |
