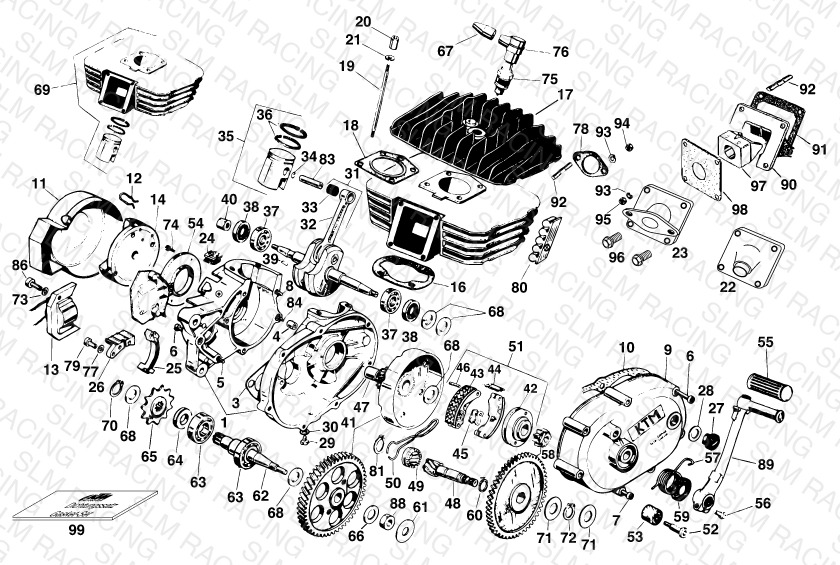

ENGINE CASE
Parts (99)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 45030000044 ENGINE CASE CPL. '97 | ENGINE CASE CPL. '97 | 1 | $225.74 | Obsolete | View Details |
| 3 | 45030039000 ENGINE CASE GASKET | ENGINE CASE GASKET | 1 | $4.19 | Obsolete | View Details |
| 4 | 45030023000 TENSION PIN 14X10X8 | TENSION PIN 14X10X8 | 2 | — | Check availability | |
| 5 | 0912060404 AH SCREW DIN0912-M 6X40 A2 | AH SCREW DIN0912-M 6X40 A2 | 1 | $2.99 | Available | 1 |
| 6 | 0912060453 AH SCREW DIN0912-M 6X45 | AH SCREW DIN0912-M 6X45 | 4 | $2.99 | Available | 4 |
| 7 | 0912060503 AH SCREW DIN0912-M 6X50 | AH SCREW DIN0912-M 6X50 | 5 | $1.39 | Obsolete | View Details |
| 8 | 0912060553 AH SCREW DIN0912-M 6X55 | AH SCREW DIN0912-M 6X55 | 2 | $3.99 | Available | 2 |
| 9 | 45030001000 * CLUTCH COVER | * CLUTCH COVER | 1 | — | Check availability | |
| 10 | 45030025000 GASKET CLUTCH COVER | GASKET CLUTCH COVER | 1 | $4.59 | Obsolete | View Details |
| 11 | 45030002000 * IGNITION COVER | * IGNITION COVER | 1 | — | Check availability | |
| 12 | 45030092000 * RETAINING SPRING | * RETAINING SPRING | 2 | — | Check availability | |
| 13 | 45039006000 * IGNITION COIL CPL. | * IGNITION COIL CPL. | 1 | — | Check availability | |
| 14 | 45039005000 FLYWHEEL | FLYWHEEL | 1 | $217.28 | Obsolete | View Details |
| 16 | 45030035800 * CYL. BASE GASKET | * CYL. BASE GASKET | 1 | — | Check availability | |
| 17 | 45030006500 CYLINDER HEAD | CYLINDER HEAD | 1 | — | Check availability | |
| 18 | 36330036000 * CYL. HEAD GASKET | * CYL. HEAD GASKET | 1 | — | Check availability | |
| 19 | 36330042000 STUD BOLT M6X112-25/15 | STUD BOLT M6X112-25/15 | 4 | — | Check availability | |
| 20 | 45030079000 HH-NUT M6 36MM HIGH WS=12 | HH-NUT M6 36MM HIGH WS=12 | 4 | $5.55 | Obsolete | View Details |
| 21 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 22 | 45030050100 INTAKE FLANGE VM18 PRO JUNIOR | INTAKE FLANGE VM18 PRO JUNIOR | 1 | $26.19 | Obsolete | View Details |
| 22 | 45030050300 INTAKE F.VM14/16 PROJUN.USA''6 | INTAKE F.VM14/16 PROJUN.USA''6 | 1 | $26.49 | Obsolete | View Details |
| 23 | 45030050900 INTAKE FLANGE VM20 PRO SENIOR | INTAKE FLANGE VM20 PRO SENIOR | 1 | $27.83 | Obsolete | View Details |
| 24 | 45030091000 RUBBER GASKET | RUBBER GASKET | 1 | $1.99 | Obsolete | View Details |
| 25 | 45030095000 * RUBBER FOR FLYWHEEL | * RUBBER FOR FLYWHEEL | 1 | — | Check availability | |
| 26 | 45030047000 * SECURING GUIDE | * SECURING GUIDE | 1 | — | Check availability | |
| 27 | 15130020000 OIL LEVEL CONTR. PLUG PVCM14 | OIL LEVEL CONTR. PLUG PVCM14 | 1 | $4.96 | Obsolete | View Details |
| 28 | 15130021000 SEAL RING 14,2X20X1 | SEAL RING 14,2X20X1 | 1 | $1.09 | Obsolete | View Details |
| 29 | 0933080103 HH SCREW DIN0933-M 8X10 | HH SCREW DIN0933-M 8X10 | 1 | $1.99 | Available | 1 |
| 30 | 45038017000 SEAL RING 8X14X1 AI | SEAL RING 8X14X1 AI | 1 | $6.15 | Available | 1 |
| 31 | 45030018500 CRANKSHAFT STROKE 41,7MM '98 | CRANKSHAFT STROKE 41,7MM '98 | 1 | $418.49 | Obsolete | View Details |
| 32 | 45030015500 CON. ROD REPAIR S5GS '98 | CON. ROD REPAIR S5GS '98 | 1 | $194.31 | Obsolete | View Details |
| 33 | 45030034000 * NEEDLE CAGE 12X15X15 | * NEEDLE CAGE 12X15X15 | 1 | — | Check availability | |
| 34 | 45030074000 * CIRCLIP | * CIRCLIP | 2 | — | Check availability | |
| 35 | 45030007800 A PISTON CPL. ''A'' D=39MM | PISTON CPL. ''A'' D=39MM | 1 | $183.39 | Obsolete | View Details |
| 35 | 45030007800 B * PISTON CPL. "B" D=39MM | * PISTON CPL. "B" D=39MM | 1 | — | Check availability | |
| 35 | 45030007800 C PISTON CPL. "C" D=39MM | PISTON CPL. "C" D=39MM | 1 | — | Check availability | |
| 35 | 45030007800 D * PISTON CPL. "D" D=39MM | * PISTON CPL. "D" D=39MM | 1 | — | Check availability | |
| 36 | 45030030800 PISTON RINGS CPL. | PISTON RINGS CPL. | 1 | $40.89 | Obsolete | View Details |
| 37 | 0625062031 BALL BEARING 6203 TN9.C3 | BALL BEARING 6203 TN9.C3 | 2 | $20.79 | Obsolete | View Details |
| 38 | 15130086000 * RADIAL SEAL RING 17X35X8 | * RADIAL SEAL RING 17X35X8 | 2 | — | Check availability | |
| 39 | 0888025030 WOODRUFF KEY DIN6888-2,5X3 | WOODRUFF KEY DIN6888-2,5X3 | 1 | $4.99 | Backorder — Late December 2026 | 1 |
| 40 | 16030028000 * HH-NUT M8X14, WS=15 | * HH-NUT M8X14, WS=15 | 1 | — | Check availability | |
| 41 | 45032001500 CLUTCH HUB 52-Z W.PRIM.15-Z | CLUTCH HUB 52-Z W.PRIM.15-Z | 1 | $228.93 | Obsolete | View Details |
| 42 | 45032002000 INNER CLUTCH HUB | INNER CLUTCH HUB | 1 | — | Check availability | |
| 43 | 16032011000 BUSHING SLEEVE | BUSHING SLEEVE | 2 | — | Check availability | |
| 44 | 45032005500 * CLUTCH SPRING REINFORCED | * CLUTCH SPRING REINFORCED | 2 | — | Check availability | |
| 45 | 45032008000 JOINT FOR BLOCKS | JOINT FOR BLOCKS | 2 | $7.09 | Obsolete | View Details |
| 46 | 45032045000 ROLLER 3X13,8 | ROLLER 3X13,8 | 4 | $1.07 | Obsolete | View Details |
| 47 | 16032095000 * BUSHING 15X18X18 | * BUSHING 15X18X18 | 1 | — | Check availability | |
| 48 | 45033050000 STARTING SHAFT | STARTING SHAFT | 1 | $80.35 | Obsolete | View Details |
| 49 | 45033052000 * KICKST. RATCHET | * KICKST. RATCHET | 1 | — | Check availability | |
| 50 | 45033056000 SPRING | SPRING | 1 | $4.19 | Obsolete | View Details |
| 51 | 45032002544 CLUTCH HUB CPL. REINFORCED | CLUTCH HUB CPL. REINFORCED | 1 | — | Check availability | |
| 52 | 16233039000 STOP SCREW M8 | STOP SCREW M8 | 1 | — | Check availability | |
| 53 | 16233040000 RUBBER 10X26X18 | RUBBER 10X26X18 | 1 | — | Check availability | |
| 54 | 45039003000 * GROUND PLATE IGNITION COIL | * GROUND PLATE IGNITION COIL | 1 | — | Check availability | |
| 55 | 45033076000 * KICKSTARTER RUBBER | * KICKSTARTER RUBBER | 1 | — | Check availability | |
| 56 | 0933070253 HH SCREW DIN0933-M 7X25 | HH SCREW DIN0933-M 7X25 | 1 | $2.09 | Out of Stock | Notify Me |
| 57 | 45033054000 * KICKSTARTER SPRING | * KICKSTARTER SPRING | 1 | — | Check availability | |
| 58 | 45033051000 KICKSTARTER SPROCKETS | KICKSTARTER SPROCKETS | 1 | $226.79 | Obsolete | View Details |
| 59 | 45033077000 PLASTIC CAP KICKSTARTER | PLASTIC CAP KICKSTARTER | 1 | $5.17 | Obsolete | View Details |
| 60 | 0770012020 O-RING 12X 2 NBR 70 | O-RING 12X 2 NBR 70 | 1 | — | Check availability | |
| 61 | 45033078000 * WASHER 8,4X25X0,4 | * WASHER 8,4X25X0,4 | 1 | — | Check availability | |
| 62 | 45033002000 COUNTER SHAFT | COUNTER SHAFT | 1 | $71.15 | Obsolete | View Details |
| 63 | 0625062027 BALL BEARING 6202 2RS1 C3 | BALL BEARING 6202 2RS1 C3 | 2 | $28.70 | Obsolete | View Details |
| 64 | 15133028000 * RADIAL SEAL RING 15X24X5 | * RADIAL SEAL RING 15X24X5 | 1 | — | Check availability | |
| 65 | 45033029800 * SPROCKET 10-T | * SPROCKET 10-T | 1 | — | Check availability | |
| 66 | 15133031000 WASHER 12,2X20X1,8 | WASHER 12,2X20X1,8 | 1 | $1.25 | Obsolete | View Details |
| 67 | 45039008000 RUBBER CAP | RUBBER CAP | 1 | — | Check availability | |
| 68 | 45033022000 * WASHER 15X22X0,4 | * WASHER 15X22X0,4 | 5 | — | Check availability | |
| 69 | 45030009800 CYLINDER + PISTON | CYLINDER + PISTON | 1 | $519.42 | Obsolete | View Details |
| 70 | 36333096000 CIRCLIP 14X1,2 | CIRCLIP 14X1,2 | 1 | $2.14 | Obsolete | View Details |
| 71 | 45033023000 WASHER 16X25X0,5 | WASHER 16X25X0,5 | 2 | $1.80 | Obsolete | View Details |
| 72 | 0471160150 CIRCLIP DIN0471-16X1 | CIRCLIP DIN0471-16X1 | 1 | $1.18 | Obsolete | View Details |
| 73 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 2 | $1.99 | Available | 2 |
| 74 | 45030090000 SCREW M4X10 | SCREW M4X10 | 3 | $2.99 | Available | 3 |
| 75 | 45039093004 SPARK PLUG BOSCH W 4 AC | SPARK PLUG BOSCH W 4 AC | 1 | $10.29 | Obsolete | View Details |
| 76 | 45039090000 * SPARK PLUG CONNECTOR | * SPARK PLUG CONNECTOR | 1 | — | Check availability | |
| 77 | 0797050003 TOOTH LOCK WASH. DIN6797-J 5,3 | TOOTH LOCK WASH. DIN6797-J 5,3 | 1 | $0.36 | Obsolete | View Details |
| 78 | 45030046800 * EXHAUST GASKET | * EXHAUST GASKET | 1 | — | Check availability | |
| 79 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 1 | $2.99 | Available | 1 |
| 80 | 36330056000 ANTIVIBRATION RUBBER | ANTIVIBRATION RUBBER | 4 | $9.69 | Obsolete | View Details |
| 81 | 45033024000 CIRCLIP 17,5X1,2 | CIRCLIP 17,5X1,2 | 1 | $1.08 | Obsolete | View Details |
| 83 | 15130033000 * PISTON PIN 8X12X31,4 | * PISTON PIN 8X12X31,4 | 1 | — | Check availability | |
| 84 | 0912060603 AH SCREW DIN0921-M 6X60 | AH SCREW DIN0921-M 6X60 | 1 | $2.09 | Obsolete | View Details |
| 86 | 0912050203 AH SCREW DIN0912-M 5X20 | AH SCREW DIN0912-M 5X20 | 1 | $1.20 | Available | 1 |
| 88 | 15133032000 HH-NUT M12X1,25 6MM HIGH | HH-NUT M12X1,25 6MM HIGH | 1 | $3.38 | Obsolete | View Details |
| 89 | 45033070000 * STARTING LEVER | * STARTING LEVER | 1 | — | Check availability | |
| 90 | 45030051800 REED VALVE HOUSING S5-GS | REED VALVE HOUSING S5-GS | 1 | — | Check availability | |
| 91 | 45030057800 GASKET MEMBRAN HOUSING | GASKET MEMBRAN HOUSING | 1 | $1.59 | Obsolete | View Details |
| 92 | 16030057000 STUD BOLT M6X33-11/16 | STUD BOLT M6X33-11/16 | 6 | — | Check availability | |
| 93 | 0127060003 SPRING RING DIN0127-B 6 | SPRING RING DIN0127-B 6 | 6 | $0.59 | Obsolete | View Details |
| 94 | 51010086000 SELF LOCKING NUT M 6 COPPER | SELF LOCKING NUT M 6 COPPER | 2 | $1.89 | Obsolete | View Details |
| 95 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 96 | 0015080163 HH COLLAR SCREW M 8X16 WS=10 | HH COLLAR SCREW M 8X16 WS=10 | 1 | $1.47 | Obsolete | View Details |
| 97 | 45030054100 *REED VALVE ELEMENTD=18,5MM'99 | *REED VALVE ELEMENTD=18,5MM'99 | 1 | — | Check availability | |
| 98 | 45030049900 INTAKE FLANGE GASKET D=22,5MM | INTAKE FLANGE GASKET D=22,5MM | 1 | $1.39 | Obsolete | View Details |
| 99 | 45030099100 GASKET SET SEAL RINGS | GASKET SET SEAL RINGS | 1 | $42.09 | Obsolete | View Details |
| 99 | 45030099800 * GASKET SET GASKETS | * GASKET SET GASKETS | 1 | — | Check availability |
