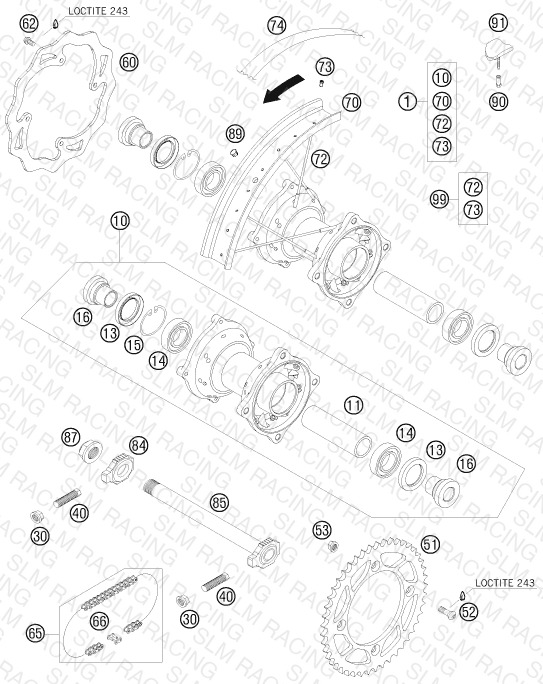

REAR WHEEL
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 47010001544 REAR WHEEL SP 85 SX 16'' 06 | REAR WHEEL SP 85 SX 16'' 06 | 1 | $610.39 | Obsolete | View Details |
| 66 | 47010166000 CONNECTING LINK 85 SX | CONNECTING LINK 85 SX | 1 | $8.24 | Available | 1 |
| 70 | 47010070200 RIM REAR AL4 16X1,85-32 03 | RIM REAR AL4 16X1,85-32 03 | 1 | — | Check availability | |
| 10 | 4701001004491 REAR WHEEL HUB CPL. 85 SX 06 | REAR WHEEL HUB CPL. 85 SX 06 | 1 | $262.29 | Obsolete | View Details |
| 11 | 47010011000 BEARING SPACER TUBE 85 SX 03 | BEARING SPACER TUBE 85 SX 03 | 1 | $19.84 | Obsolete | View Details |
| 13 | 0760324771 Radial shaft seal 32X47X7 BSL | Radial shaft seal 32X47X7 BSL | 2 | $15.72 | Available | 2 |
| 14 | 0625060058 Grooved ball bear.6005 DDU2CG2 | Grooved ball bear.6005 DDU2CG2 | 2 | $21.55 | Available | 2 |
| 15 | 0472047175 CIRCLIP DIN0472-47X1,75 | CIRCLIP DIN0472-47X1,75 | 1 | $3.99 | Available | 1 |
| 16 | 54610016000 BUSHING FOR HUB | BUSHING FOR HUB | 2 | $23.39 | Obsolete | View Details |
| 30 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | $2.99 | Available | 2 |
| 40 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | $6.15 | Available | 2 |
| 51 | 47010051044 REAR SPROCKET 44-T 85 SX 03 | REAR SPROCKET 44-T 85 SX 03 | 0 | $69.25 | Obsolete | View Details |
| 51 | 47010051045 REAR SPROCKET 45-T 85 SX 03 | REAR SPROCKET 45-T 85 SX 03 | 0 | $67.19 | Obsolete | View Details |
| 51 | 47010051046 REAR SPROCKET 46-T 85 SX 03 | REAR SPROCKET 46-T 85 SX 03 | 0 | $69.25 | Obsolete | View Details |
| 51 | 47010051047 REAR SPROCKET 47-T 85 SX 03 | REAR SPROCKET 47-T 85 SX 03 | 0 | $69.25 | Obsolete | View Details |
| 51 | 47010051048 REAR SPROCKET 48-T 85 SX 03 | REAR SPROCKET 48-T 85 SX 03 | 0 | $69.25 | Obsolete | View Details |
| 51 | 47010051049 REAR SPROCKET 49-T 85 SX 03 | REAR SPROCKET 49-T 85 SX 03 | 1 | $69.25 | Obsolete | View Details |
| 51 | 47010051050 REAR SPROCKET 50-T 85 SX 03 | REAR SPROCKET 50-T 85 SX 03 | 0 | $69.25 | Obsolete | View Details |
| 51 | 47010051051 REAR SPROCKET 51-T 85 SX 06 | REAR SPROCKET 51-T 85 SX 06 | 0 | $69.26 | Obsolete | View Details |
| 52 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 | COUNTER-SUNK SCREW ISA45 M8X26 | 4 | $3.99 | Available | 4 |
| 53 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 4 | $3.99 | Available | 4 |
| 60 | 47010060300 BRAKE DISC REAR D=200MM 06 | BRAKE DISC REAR D=200MM 06 | 1 | $88.68 | Obsolete | View Details |
| 65 | 47010165124 CHAIN 124 ROLLS 85 SX | CHAIN 124 ROLLS 85 SX | 1 | $113.07 | Available | 1 |
| 62 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 | SPECIAL SCREW M6X16 WS=8 10.9 | 4 | $2.99 | Available | 4 |
| 72 | 47010072171 SPOKE REAR 16'' 4/3,5/4-17103 | SPOKE REAR 16'' 4/3,5/4-17103 | 32 | $2.32 | Obsolete | View Details |
| 73 | 50309072000 SPOKE NIPPLE M4,5X0,75 8X21 | SPOKE NIPPLE M4,5X0,75 8X21 | 32 | $1.08 | Obsolete | View Details |
| 74 | 47010073200 Tube protector 85 SX 16" | Tube protector 85 SX 16" | 1 | $8.68 | Available | 1 |
| 84 | 50310084000 Chain tension adjuster, right | Chain tension adjuster, right | 1 | $24.30 | Available | 1 |
| 85 | 47010085044 AXLE REAR CPL. 85 SX 2003 | AXLE REAR CPL. 85 SX 2003 | 1 | $74.57 | Available | 1 |
| 87 | 50310099000 Hexagon nut M20x1.5 | Hexagon nut M20x1.5 | 1 | $13.30 | Available | 1 |
| 89 | 55003135000 PLUG FOR RIM | PLUG FOR RIM | 0 | $2.99 | Available | 1 |
| 90 | 50310090050 NUT FOR WHEEL HOLDER '96 | NUT FOR WHEEL HOLDER '96 | 1 | $3.87 | Obsolete | View Details |
| 91 | 51009100100 RIM LOCK VM1 (1,60'') | RIM LOCK VM1 (1,60'') FOR 14-15" | 1 | $19.31 | Obsolete | View Details |
| 99 | 00050000909 SPOKE KIT REAR ''16'' | SPOKE KIT REAR ''16'' | 0 | $115.05 | Available | 1 |
