CYLINDER
Parts (15)

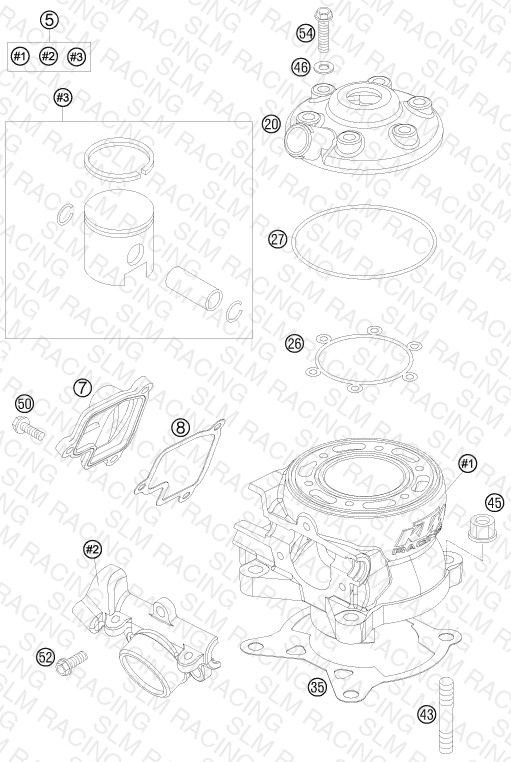

| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | 47530038000 CYLINDER, PISTON, FLANGE | CYLINDER, PISTON, FLANGE | 1 | $807.73 | Obsolete | View Details |
| 7 | 47037007000 CONTROL COVER 85 SX 2003 | CONTROL COVER 85 SX 2003 | 1 | $45.31 | Available | 1 |
| 8 | 47037008000 GASKET FOR CONTROL COVER 2003 | GASKET FOR CONTROL COVER 2003 | 1 | $4.83 | Obsolete | View Details |
| 20 | 47530006000 CYLINDER HEAD 105 SX 2004 | CYLINDER HEAD 105 SX 2004 | 1 | $154.11 | Obsolete | View Details |
| 26 | 47530037000 SEAL RING SILICONE 105 SX 2004 | SEAL RING SILICONE 105 SX 2004 | 1 | $15.39 | Available | 1 |
| 27 | 0770820020 O-RING 82X2 SILICONE | O-RING 82X2 SILICONE | 1 | $13.30 | Available | 1 |
| 35 | 47030035020 CYLINDER BASE GASKET 0,20MM | CYLINDER BASE GASKET 0,20MM | 0 | $9.56 | Available | 1 |
| 35 | 47030035030 CYLINDER BASE GASKET 0,30MM | CYLINDER BASE GASKET 0,30MM | 0 | $9.56 | Available | 1 |
| 35 | 47030035000 CYLINDER BASE GASKET 0,50MM | CYLINDER BASE GASKET 0,50MM | 0 | $9.56 | Available | 1 |
| 43 | 0835080240 STUD DIN 0835-M 8X24 | STUD DIN 0835-M 8X24 | 4 | $3.99 | Available | 4 |
| 45 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 4 | $9.23 | Available | 4 |
| 46 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 6 | $2.99 | Available | 6 |
| 50 | 0015050123 HH COLLAR SCREW M 5X12 WS=8 | HH COLLAR SCREW M 5X12 WS=8 | 3 | $0.83 | Obsolete | View Details |
| 52 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $1.12 | Obsolete | View Details |
| 54 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 6 | $1.03 | Obsolete | View Details |
