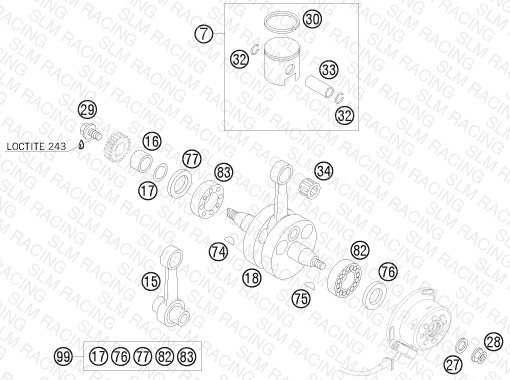

CRANKSHAFT, PISTON
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7 | 47530007000 I PISTON I CPL. 105 SX 52MM 04 | PISTON I CPL. 105 SX 52MM 04 | 1 | $188.64 | Available | |
| 7 | 47530007000 II PISTON II CPL. 105 SX 52MM 04 | PISTON II CPL. 105 SX 52MM 04 | 1 | $188.64 | Available | |
| 15 | 47030015100 CON. ROD. REP. KIT 85 SX '06 | CON. ROD. REP. KIT 85 SX '06 | 1 | $344.29 | Available | 1 |
| 16 | 47030016000 SPACER SLEEVE 85 SX 2003 | SPACER SLEEVE 85 SX 2003 | 1 | — | Obsolete | View Details |
| 17 | 0770020180 O-RING 18,77X1,78 NBR 70 | O-RING 18,77X1,78 NBR 70 | 1 | $1.99 | Available | 1 |
| 18 | 47030018100 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | $558.24 | Available | 1 |
| 27 | 50230029012 LOCKING RING VSK 12 | LOCKING RING VSK 12 | 1 | $2.99 | Available | 1 |
| 28 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | $2.99 | Available | 1 |
| 29 | 47032019000 HH SCREW W. COLLAR M10X1,25X20 | HH SCREW W. COLLAR M10X1,25X20 | 1 | $21.77 | Available | 1 |
| 30 | 47530030000 PISTON RING 105 SX 2004 | PISTON RING 105 SX 2004 | 1 | — | Obsolete | View Details |
| 32 | 47030074000 WIRE LOCK RING 85 SX 2003 | WIRE LOCK RING 85 SX 2003 | 2 | $2.99 | Available | 2 |
| 33 | 47530033000 PISTON BOLT 105 SX 2004 | PISTON BOLT 105 SX 2004 | 1 | — | Obsolete | View Details |
| 34 | 47030034000 NEEDLE BEARING KBK 14X18X17 03 | NEEDLE BEARING KBK 14X18X17 03 | 1 | $39.59 | Available | 1 |
| 74 | 0888040050 woodruff key DIN 6888 4x5x13 | woodruff key DIN 6888 4x5x13 | 1 | $4.99 | Available | 1 |
| 75 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 76 | 47030076100 SEAL SHAFT RING 20X35X6 BTSL | SEAL SHAFT RING 20X35X6 BTSL | 1 | $25.29 | Available | 1 |
| 77 | 0760304261 OIL SEAL | OIL SEAL | 1 | $19.35 | Available | 1 |
| 82 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | $87.55 | Available | 1 |
| 83 | 47030083000 BALL BEARING 22X52X15 | BALL BEARING 22X52X15 | 1 | $33.76 | Available | 1 |
| 99 | 00050002307 CRANKSHAFT REP. KIT 85/105 SX | CRANKSHAFT REP. KIT 85/105 SX | — | $107.02 | Available | 1 |
