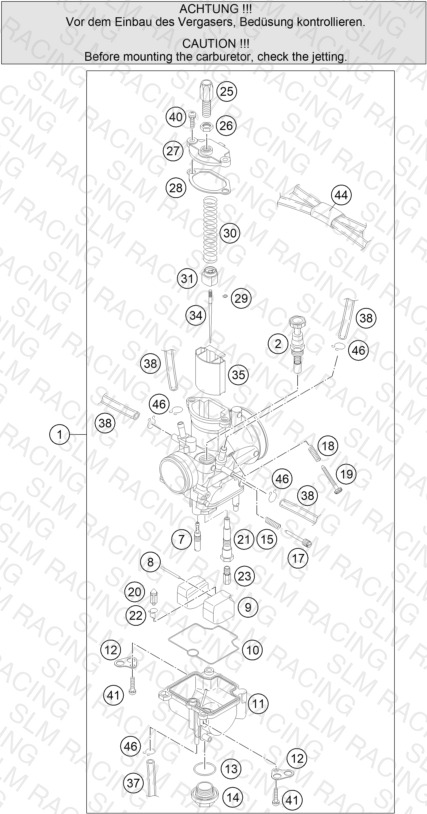

CARBURETOR
Parts (48)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 47031001000 CARBURETOR KEIHIN PWK 28 2003 | CARBURETOR KEIHIN PWK 28 2003 | 1 | $486.74 | Available | 1 |
| 2 | 54631245000 STARTER PISTON CPL. | STARTER PISTON CPL. | 1 | $105.81 | Available | 1 |
| 7 | 54531607038 IDLE JET 38 KEIHIN | IDLE JET 38 KEIHIN | — | $14.95 | Available | 1 |
| 7 | 54531607040 IDLE JET 40 KEIHIN | IDLE JET 40 KEIHIN | — | $14.84 | Available | 1 |
| 7 | 54531607042 IDLE JET 42 KEIHIN | IDLE JET 42 KEIHIN | — | $14.95 | Available | 1 |
| 7 | 54531607045 IDLE JET 45 KEIHIN | IDLE JET 45 KEIHIN | — | $14.73 | Available | 1 |
| 7 | 54531607048 IDLE JET 48 KEIHIN | IDLE JET 48 KEIHIN | — | $14.84 | Available | 1 |
| 7 | 54531607050 IDLE JET 50 KEIHIN | IDLE JET 50 KEIHIN | — | $14.73 | Available | 1 |
| 8 | 57331008000 ARM PIN FLOAT | ARM PIN FLOAT | 1 | $2.99 | Available | 1 |
| 9 | 47031009000 FLOAT CPL. PWK28 03 | FLOAT CPL. PWK28 03 | 1 | $55.10 | Available | 1 |
| 10 | 47031010000 FLOAT CHAMBER GASKET | FLOAT CHAMBER GASKET | 1 | $9.56 | Available | 1 |
| 11 | 47031011000 FLOAT CHAMBER PWK28 03 | FLOAT CHAMBER PWK28 03 | 1 | $84.69 | Available | 1 |
| 12 | 54531612100 RETAINING PLATE FOR BLEEDER | RETAINING PLATE FOR BLEEDER | 2 | $3.99 | Available | 2 |
| 13 | 0770180230 O-RING 18,00X2,30 NBR 70 | O-RING 18,00X2,30 NBR 70 | 1 | $3.99 | Available | 1 |
| 14 | 54531699000 PLUG M 18X1 | PLUG M 18X1 | 1 | $23.64 | Available | 1 |
| 15 | 54531615000 SPRING FOR ADJUSTMENT SCREW | SPRING FOR ADJUSTMENT SCREW | 1 | $3.99 | Available | 1 |
| 17 | 54531617000 ADJUSTMENT SCREW | ADJUSTMENT SCREW | 1 | $10.00 | Available | 1 |
| 18 | 54631118000 SPRING | SPRING | 1 | $11.54 | Available | 1 |
| 19 | 54631219100 ADJUSTMENT SCREW M 5 | ADJUSTMENT SCREW M 5 | 1 | $14.99 | Available | 1 |
| 20 | 47031020000 FLOAT NEEDLE CPL. | FLOAT NEEDLE CPL. | 1 | $32.55 | Available | 1 |
| 21 | 47031021000 NEEDLE JET | NEEDLE JET | 1 | $39.48 | Available | 1 |
| 22 | 47031022000 CLIP FOR FLOAT VALVE | CLIP FOR FLOAT VALVE | 1 | $4.99 | Available | 1 |
| 23 | 54531623115 MAIN JET 115 KEIHIN | MAIN JET 115 KEIHIN | — | $14.95 | Available | 1 |
| 23 | 54531623118 MAIN JET 118 KEIHIN | MAIN JET 118 KEIHIN | — | $14.84 | Available | 1 |
| 23 | 54531623120 MAIN JET 120 KEIHIN | MAIN JET 120 KEIHIN | — | $16.05 | Available | 1 |
| 23 | 54531623122 MAIN JET 122 KEIHIN | MAIN JET 122 KEIHIN | — | $15.83 | Available | 1 |
| 23 | 54531623125 MAIN JET 125 KEIHIN | MAIN JET 125 KEIHIN | — | $15.17 | Available | 1 |
| 23 | 54531623128 MAIN JET 128 KEIHIN | MAIN JET 128 KEIHIN | — | $14.84 | Available | 1 |
| 23 | 54531623130 MAIN JET 130 KEIHIN | MAIN JET 130 KEIHIN | — | $14.95 | Available | 1 |
| 23 | 54531623132 MAIN JET 132 KEIHIN | MAIN JET 132 KEIHIN | — | $14.84 | Available | 1 |
| 23 | 54531623135 MAIN JET 135 KEIHIN | MAIN JET 135 KEIHIN | — | $13.74 | Available | 1 |
| 25 | 54531625000 ADJUSTMENT SCREW M 6X0,75 | ADJUSTMENT SCREW M 6X0,75 | 1 | $9.45 | Available | 1 |
| 26 | 52031126000 HEXAGON NUT M 6X0,75 DIN0439 | HEXAGON NUT M 6X0,75 DIN0439 | 1 | $9.89 | Available | 1 |
| 27 | 47031027000 CARBURETOR COVER PWK28 03 | CARBURETOR COVER PWK28 03 | 1 | $35.08 | Available | 1 |
| 28 | 47031028000 CARBURETOR COVER GASKET PWK28 | CARBURETOR COVER GASKET PWK28 | 1 | $7.36 | Available | 1 |
| 29 | 54531629000 CLIP FOR JET NEEDLE | CLIP FOR JET NEEDLE | 1 | $3.99 | Available | 1 |
| 30 | 47031030000 THROTTLE VALVE SPRING | THROTTLE VALVE SPRING | 1 | $11.98 | Available | 1 |
| 31 | 47031031000 SPRING CAP | SPRING CAP | 1 | $8.90 | Available | 1 |
| 34 | 47031034000 JET NEEDLE N5HG KEIHIN | JET NEEDLE N5HG KEIHIN | 1 | $17.81 | Available | 1 |
| 34 | 47031034100 JET NEEDLE N5HF KEIHIN | JET NEEDLE N5HF KEIHIN | — | $18.47 | Available | 1 |
| 34 | 47031034200 JET NEEDLE N5HH KEIHIN | JET NEEDLE N5HH KEIHIN | — | $18.58 | Available | 1 |
| 35 | 47031035000 THROTTLE VALVE 3,5 | THROTTLE VALVE 3,5 | 1 | $225.27 | Available | 1 |
| 37 | 52031137001 PVC-HOSE 3X5MM | PVC-HOSE 3X5MM | — | $6.15 | Available | 1 |
| 38 | 31007007101 PVC-HOSE 4X6MM | PVC-HOSE 4X6MM | — | $4.99 | Available | 1 |
| 40 | 0016040163 HH COLLAR SCREW M 4X16 WS=6 | HH COLLAR SCREW M 4X16 WS=6 | 4 | $2.99 | Available | 4 |
| 41 | 0985040163 FLAT HEAD SCREW DIN7985-M 4X16 | FLAT HEAD SCREW DIN7985-M 4X16 | 2 | $2.99 | Available | 2 |
| 44 | 47031084000 PLASTIC-CLIP | PLASTIC-CLIP | 1 | — | Obsolete | View Details |
| 46 | 54531696000 Clamp 6mm | Clamp 6mm | 5 | $3.99 | Available | 5 |
