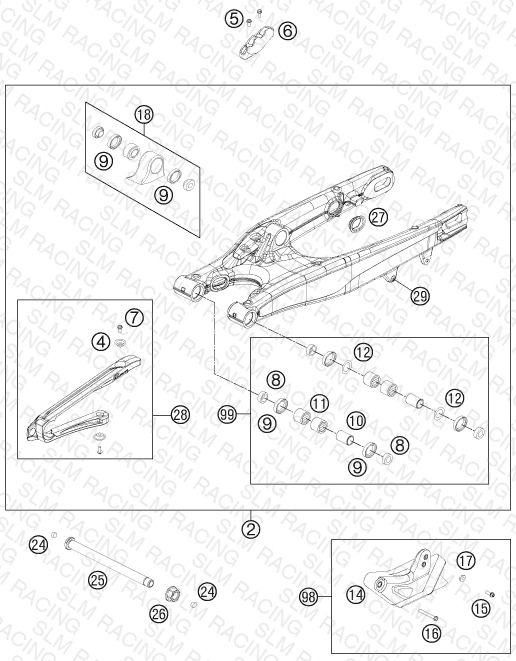

SWING ARM
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 51504030044 SWING ARM CPL. PDS 2011 | SWING ARM CPL. PDS 2011 | 1 | — | Obsolete | View Details |
| 4 | 77304066050 chain slider bushing | chain slider bushing | 2 | $1.99 | Available | 2 |
| 5 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K | EJOT SPIRAL SCREW SF M5X10-K | 2 | $2.99 | Available | 2 |
| 6 | 77313047000 BRAKE HOSE GUIDE LOWER 07 | BRAKE HOSE GUIDE LOWER 07 | 1 | $6.15 | Available | 1 |
| 7 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 | SPECIAL SCREW M6X13 WS=8 10.9 | 6 | $2.99 | Available | 6 |
| 8 | 54804034000 Bucket f. shaft seal ring 03 | Bucket f. shaft seal ring 03 | 4 | $15.83 | Available | 4 |
| 9 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 10 | 54804032000 BUSHING SLEEVE F. SWING ARM 03 | BUSHING SLEEVE F. SWING ARM 03 | 2 | $12.86 | Available | 2 |
| 11 | 58033097000 NEEDLE BEARING HK 2216 | NEEDLE BEARING HK 2216 | 4 | $16.49 | Available | 4 |
| 12 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 14 | 77304070100 CHAIN GUIDE REAR CPL. 07 | CHAIN GUIDE REAR CPL. 07 | 1 | $61.73 | Out of Stock | Notify Me |
| 15 | 59009062019 SPECIAL SCREW M6X19 WS=8 10.9 | SPECIAL SCREW M6X19 WS=8 10.9 | 1 | $2.99 | Available | 1 |
| 16 | 0025060456 HH COLLAR SCREW M6X45 TX30 | HH COLLAR SCREW M6X45 TX30 | 1 | $2.99 | Available | 1 |
| 17 | 77304070130 BUSH. F. CHAIN FAIL. PROT. 07 | BUSH. F. CHAIN FAIL. PROT. 07 | 1 | $3.99 | Available | 1 |
| 18 | 50304090144 PIVOT BEARING+BUSH. PDS '11 | PIVOT BEARING+BUSH. PDS '11 | 1 | $76.11 | Available | 1 |
| 24 | 55009086000 PLUG SFL13 | PLUG SFL13 | 2 | $2.99 | Available | 2 |
| 25 | 77304037000 SWINGARM BOLT M16X1,5 07 | SWINGARM BOLT M16X1,5 07 | 1 | $66.65 | Available | 1 |
| 26 | 54804038000 Nut with flange M16X1,5 WS=19 | Nut with flange M16X1,5 WS=19 | 1 | $2.99 | Available | 1 |
| 27 | 77204041000 Locking cap swingarm | Locking cap swingarm | 4 | $4.99 | Available | 4 |
| 28 | 51504066044 CHAIN SLIDING GUARD KIT 11-15 | CHAIN SLIDING GUARD KIT 11-15 | — | $33.10 | Available | 1 |
| 29 | 54603055051 PRESS IN NUT M6 STEEL ZINC | PRESS IN NUT M6 STEEL ZINC | 1 | $2.99 | Available | 1 |
| 98 | 77304070210 CHAIN GUIDE KIT REAR 07-13 | CHAIN GUIDE KIT REAR 07-13 | — | $55.32 | Out of Stock | Notify Me |
| 99 | 54804230210 SWINGARM REPAIR KIT 05-15 | SWINGARM REPAIR KIT 05-15 | — | $100.97 | Available | 1 |
