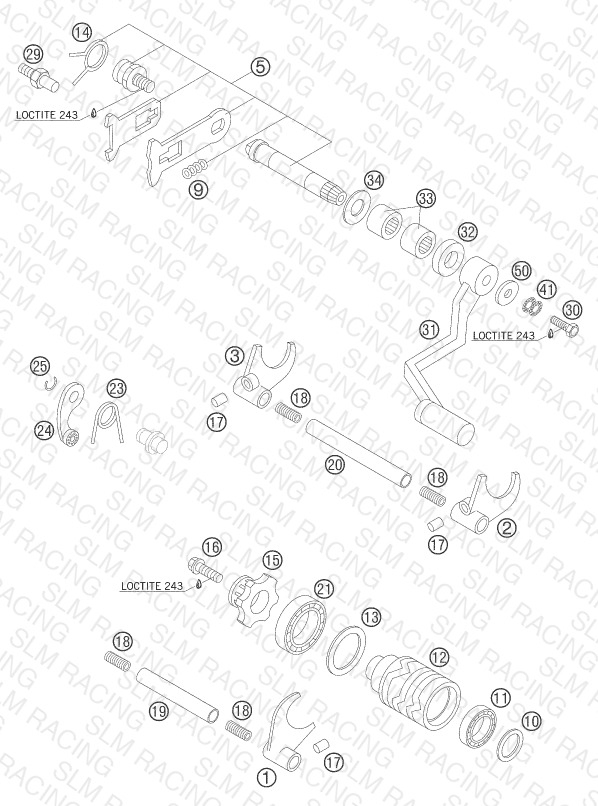

SHIFTING MECHANISM
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 47034002000 SHIFT FORK 2ND/3RD GEAR 2003 | SHIFT FORK 2ND/3RD GEAR 2003 | 1 | — | Check availability | |
| 3 | 47034003000 SHIFT FORK 1ST/4TH GEAR 2003 | SHIFT FORK 1ST/4TH GEAR 2003 | 1 | — | Check availability | |
| 5 | 47034005044 SHIFTING SHAFT CPL. 85 SX 2003 | SHIFTING SHAFT CPL. 85 SX 2003 | 1 | — | Check availability | |
| 9 | 46034009000 PRESSURE SPRING SLIDER PLATE | PRESSURE SPRING SLIDER PLATE | 1 | — | Check availability | |
| 10 | 47034091000 WASHER 15X20X0,5 | WASHER 15X20X0,5 | 1 | — | Check availability | |
| 11 | 0625069020 BALL BEARING 6902 15X28X7 | BALL BEARING 6902 15X28X7 | 1 | — | Check availability | |
| 12 | 47034012000 SHIFT ROLLER 85 SX 2003 | SHIFT ROLLER 85 SX 2003 | 1 | — | Check availability | |
| 13 | 47034092000 WASHER 25X32X0,5 | WASHER 25X32X0,5 | 1 | — | Check availability | |
| 14 | 46034014000 RETURN SPRING | RETURN SPRING | 1 | — | Check availability | |
| 15 | 47034015000 SHIFT LOCATION DRUM 85 SX 2003 | SHIFT LOCATION DRUM 85 SX 2003 | 1 | — | Check availability | |
| 16 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 1 | — | Check availability | View Details |
| 17 | 0402061200 NEEDLE ROLLER DIN5402 NRB 6X12 | NEEDLE ROLLER DIN5402 NRB 6X12 | 3 | — | Check availability | |
| 18 | 46034019052 SPRING SHIFT RAIL 2001 | SPRING SHIFT RAIL 2001 | 4 | — | Check availability | |
| 19 | 47034019000 SHIFTING RAIL 85 SX 2003 | SHIFTING RAIL 85 SX 2003 | 1 | — | Check availability | |
| 20 | 46034020100 SHIFT RAIL 2001 | SHIFT RAIL 2001 | 1 | — | Check availability | |
| 21 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | — | Check availability | |
| 23 | 46034023100 LOCKING LEVER SPRING 2001 | LOCKING LEVER SPRING 2001 | 1 | — | Check availability | |
| 24 | 46034024100 LOCKING LEVER CPL. 65 SX 2002 | LOCKING LEVER CPL. 65 SX 2002 | 1 | — | Check availability | |
| 25 | 0471100010 CIRCLIP DIN0471-10X1 | CIRCLIP DIN0471-10X1 | 1 | — | Check availability | |
| 29 | 47034029000 ARRESTER FOR SPRING 2003 | ARRESTER FOR SPRING 2003 | 1 | — | Check availability | |
| 1 | 47034001000 SHIFT FORK 5TH/6TH GEAR 2003 | SHIFT FORK 5TH/6TH GEAR 2003 | 1 | — | Check availability | |
| 30 | 0933060205 HH SCREW DIN933 M6x20 10.9 | HH SCREW DIN933 M6x20 10.9 | 1 | — | Check availability | |
| 31 | 47034031000 SHIFT LEVER 85 SX 2003 | SHIFT LEVER 85 SX 2003 | 1 | — | Check availability | |
| 32 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | — | Check availability | |
| 33 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | — | Check availability | |
| 34 | 47033043000 STOP DISC 15X25X0,5 | STOP DISC 15X25X0,5 | 1 | — | Check availability | |
| 41 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 1 | — | Check availability | |
| 50 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | — | Check availability |
