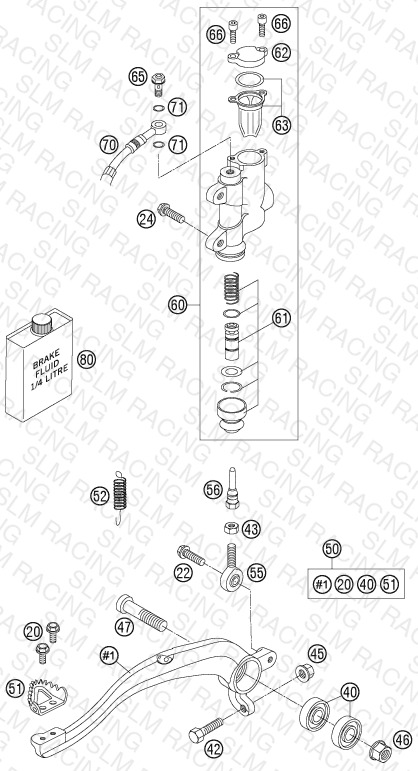

REAR BRAKE CONTROL
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 20 | 0015050123 HH COLLAR SCREW M 5X12 WS=8 | HH COLLAR SCREW M 5X12 WS=8 | 2 | — | Check availability | View Details |
| 22 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 1 | — | Check availability | View Details |
| 24 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 2 | — | Check availability | View Details |
| 40 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 2 | — | Check availability | |
| 42 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 1 | — | Check availability | |
| 43 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 45 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | — | Check availability | |
| 46 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | — | Check availability | View Details |
| 47 | 0912100406 AH SCREW DIN6912 M10X40 10.9 | AH SCREW DIN6912 M10X40 10.9 | 1 | — | Check availability | View Details |
| 50 | 47013050044 FOOT BRAKE LEVER CPL. 85 SX 03 | FOOT BRAKE LEVER CPL. 85 SX 03 | 1 | — | Check availability | |
| 51 | 54813051000 STEP PLATE FOR BRAKE LEVER | STEP PLATE FOR BRAKE LEVER | 1 | — | Check availability | |
| 52 | 54603062000 RETURN SPRING FOR BRAKELEVER | RETURN SPRING FOR BRAKELEVER | 1 | — | Check availability | View Details |
| 55 | 54813055000 SWIVEL HEAD KA6 03 | SWIVEL HEAD KA6 03 | 1 | — | Check availability | View Details |
| 56 | 47013056100 PRESSURE ROD 85 SX 06 | PRESSURE ROD 85 SX 06 | 1 | — | Check availability | |
| 60 | 47013060200 FOOT BRAKE CYL.R. CPL. D=11 05 | FOOT BRAKE CYL.R. CPL. D=11 05 | 1 | — | Check availability | View Details |
| 60 | 47013060300 FOOTBRAKECYL.R. CPL. D=12 05 | FOOTBRAKECYL.R. CPL. D=12 05 | 0 | — | Check availability | View Details |
| 61 | 47013061000 REP. SET PISTON REAR D=11 2003 | REP. SET PISTON REAR D=11 2003 | 1 | — | Check availability | |
| 61 | 47013061100 Rep.set piston, rear D=12 2004 | Rep.set piston, rear D=12 2004 | 0 | — | Check availability | |
| 62 | 47013062000 CYLINDER COVER REAR 85 SX 03 | CYLINDER COVER REAR 85 SX 03 | 1 | — | Check availability | |
| 63 | 47013063000 GASKET CYLINDER COVER REAR 03 | GASKET CYLINDER COVER REAR 03 | 1 | — | Check availability | |
| 65 | 47013025000 Hollow screw, brake cylinder 0 | Hollow screw, brake cylinder 0 | 1 | — | Check availability | |
| 66 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 2 | — | Check availability | |
| 70 | 47013070000 BRAKE HOSE REAR 85 SX 03 | BRAKE HOSE REAR 85 SX 03 | 1 | — | Check availability | |
| 71 | 0770080019 O-RING 8,00X1,00 FORMULA | O-RING 8,00X1,00 FORMULA | 2 | — | Check availability | |
| 80 | 306054 BRAKE FLUID DOT 4.0 | BRAKE FLUID DOT 4.0 | 1 | — | Check availability |
