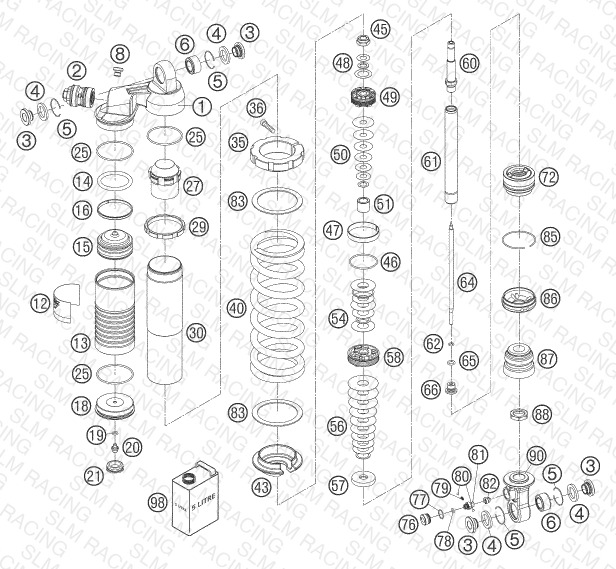

SHOCK ABSORBER DISASSEMBLED
Parts (84)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46180348 SHOCK ABSORBER TOP H40 135DEG. | SHOCK ABSORBER TOP H40 135DEG. | 1 | — | Check availability | View Details |
| 2 | 50180213S6 Compression cpl. | Compression cpl. | 1 | — | Check availability | |
| 3 | 46180007 Distance bush 12x15/18/24,5x10 | Distance bush 12x15/18/24,5x10 | 4 | — | Check availability | |
| 4 | 46180003 Seal ring 19,5x26x3 | Seal ring 19,5x26x3 | 4 | — | Check availability | |
| 5 | 50180168 Round-wire snap ring 25x1 | Round-wire snap ring 25x1 | 4 | — | Check availability | |
| 6 | 50180005 Ball joint bearing 15x25x13 | Ball joint bearing 15x25x13 | 2 | — | Check availability | |
| 8 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | — | Check availability | |
| 12 | 52000014 STICKER WP 35X55 | STICKER WP 35X55 | 1 | — | Check availability | View Details |
| 13 | 50180266 RES. SCREW L=113,5 D=52 BLACK | RES. SCREW L=113,5 D=52 BLACK | 1 | — | Check availability | View Details |
| 14 | 46180014 O-ring 41x5 Viton75 | O-ring 41x5 Viton75 | 1 | — | Check availability | |
| 15 | 46180002 Piston 52mm reservoir | Piston 52mm reservoir | 1 | — | Check availability | |
| 16 | 46180015 Pistonring 47,5x50,5x3,9 | Pistonring 47,5x50,5x3,9 | 1 | — | Check availability | |
| 18 | 50180344 RESERVOIR CAP D=58 | RESERVOIR CAP D=58 | 1 | — | Check availability | View Details |
| 19 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | — | Check availability | View Details |
| 20 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | — | Check availability | |
| 21 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | — | Check availability | |
| 25 | 46810016 O-ring 48x2 NBR70 siliconized | O-ring 48x2 NBR70 siliconized | 3 | — | Check availability | |
| 27 | 46180340 SLEEVE D=48 | SLEEVE D=48 | 1 | — | Check availability | |
| 29 | 46180352 LOCK WASHER M52X1,5 | LOCK WASHER M52X1,5 | 1 | — | Check availability | View Details |
| 30 | 46180345 TUBE M52X1,5 | TUBE M52X1,5 | 1 | — | Check availability | |
| 35 | 46180353 SPRING RETAINER M52X1,5 | SPRING RETAINER M52X1,5 | 1 | — | Check availability | View Details |
| 36 | 0912050253 AH SCREW DIN0912-M 5X25 | AH SCREW DIN0912-M 5X25 | 1 | — | Check availability | |
| 40 | 91010273 Mainspring (59) 35-215 damper | Mainspring (59) 35-215 damper | 1 | — | Check availability | |
| 56 | 46810521 SHIM 12X32X0,15 | SHIM 12X32X0,15 | 1 | — | Check availability | |
| 43 | 46180349 Spring retainer 28x56x15 | Spring retainer 28x56x15 | 1 | — | Check availability | |
| 45 | 46180356 PISTON ROD NUT M10X1 | PISTON ROD NUT M10X1 | 1 | — | Check availability | |
| 46 | 46810035 O-ring 37x,82x1,78 Viton70 gre | O-ring 37x,82x1,78 Viton70 gre | 1 | — | Check availability | |
| 47 | 46811206 Piston ring 43,95x45,95x8 | Piston ring 43,95x45,95x8 | 1 | — | Check availability | |
| 48 | 36120349 SHIM 10X19X0,30 | SHIM 10X19X0,30 | 1 | — | Check availability | |
| 48 | 50180032 Shim 16x25x0,25 | Shim 16x25x0,25 | 1 | — | Check availability | |
| 48 | 50180395 Washer 10x16x1 | Washer 10x16x1 | 1 | — | Check availability | |
| 49 | 14460016 Piston 10,05x35,5x13,7 3,5/5,5 | Piston 10,05x35,5x13,7 3,5/5,5 | 1 | — | Check availability | |
| 50 | 36120312 SHIM 10X16X0,30 | SHIM 10X16X0,30 | 1 | — | Check availability | |
| 50 | 36120334 SHIM 10X21X0,20 | SHIM 10X21X0,20 | 1 | — | Check availability | |
| 50 | 36120335 SHIM 10X23X0,20 | SHIM 10X23X0,20 | 1 | — | Check availability | |
| 50 | 36120336 SHIM 10X25X0,20 | SHIM 10X25X0,20 | 1 | — | Check availability | |
| 50 | 36120337 SHIM 10X27X0,20 | SHIM 10X27X0,20 | 3 | — | Check availability | |
| 50 | 36120338 SHIM 10X29X0,20 | SHIM 10X29X0,20 | 1 | — | Check availability | |
| 50 | 36120339 SHIM 10X31X0,20 | SHIM 10X31X0,20 | 1 | — | Check availability | |
| 51 | 46180339 SEPARATION BUSH 17X12X18 | SEPARATION BUSH 17X12X18 | 1 | — | Check availability | View Details |
| 54 | 46810496 SHIM 12X36X0,20 | SHIM 12X36X0,20 | 2 | — | Check availability | |
| 54 | 46810519 SHIM 12X28X0,15 | SHIM 12X28X0,15 | 1 | — | Check availability | |
| 54 | 46810495 SHIM 12X34X0,20 | SHIM 12X34X0,20 | 1 | — | Check availability | |
| 54 | 46810494 SHIM 12X32X0,20 | SHIM 12X32X0,20 | 1 | — | Check availability | |
| 54 | 46810493 SHIM 12X30X0,20 | SHIM 12X30X0,20 | 1 | — | Check availability | |
| 54 | 46810492 SHIM 12X28X0,20 | SHIM 12X28X0,20 | 1 | — | Check availability | |
| 54 | 46810637 Shim 12x17x0,30 | Shim 12x17x0,30 | 1 | — | Check availability | |
| 56 | 46810492 SHIM 12X28X0,20 | SHIM 12X28X0,20 | 1 | — | Check availability | |
| 56 | 46810493 SHIM 12X30X0,20 | SHIM 12X30X0,20 | 1 | — | Check availability | |
| 56 | 46810494 SHIM 12X32X0,20 | SHIM 12X32X0,20 | 1 | — | Check availability | |
| 56 | 46810520 SHIM 12X30X0,15 | SHIM 12X30X0,15 | 1 | — | Check availability | |
| 56 | 46810522 SHIM 12X34X0,15 | SHIM 12X34X0,15 | 1 | — | Check availability | |
| 56 | 46810523 SHIM 12X36X0,15 | SHIM 12X36X0,15 | 1 | — | Check availability | |
| 56 | 46810524 SHIM 12X38X0,15 | SHIM 12X38X0,15 | 1 | — | Check availability | |
| 56 | 46810525 SHIM 12X40X0,15 | SHIM 12X40X0,15 | 7 | — | Check availability | |
| 56 | 46810637 Shim 12x17x0,30 | Shim 12x17x0,30 | 1 | — | Check availability | |
| 57 | 46180179 REBOUND DISC H=0 | REBOUND DISC H=0 | 0 | — | Check availability | |
| 57 | 46180337 Rebound disc 12x34x7 h4 | Rebound disc 12x34x7 h4 | 1 | — | Check availability | |
| 58 | 46180441 PISTON 5X4,5X/6X6 | PISTON 5X4,5X/6X6 | 1 | — | Check availability | View Details |
| 60 | 46180343 TAP PISTON ROD D=13,5 | TAP PISTON ROD D=13,5 | 1 | — | Check availability | |
| 61 | 46180342 SPINDEL D=18 LC=159 | SPINDEL D=18 LC=159 | 1 | — | Check availability | View Details |
| 62 | 50180397 O-ring 5x1,5 Viton70 | O-ring 5x1,5 Viton70 | 1 | — | Check availability | View Details |
| 64 | 46180346 NEEDLE REBOUND L=169 | NEEDLE REBOUND L=169 | 1 | — | Check availability | View Details |
| 65 | 46180018 O-RING NBR 7,5X2 | O-RING NBR 7,5X2 | 1 | — | Check availability | |
| 66 | 46180350 NEEDLE GUIDE | NEEDLE GUIDE | 1 | — | Check availability | View Details |
| 72 | 46180341S ADAPTOR CPL. D=46 H=28 D=38 | ADAPTOR CPL. D=46 H=28 D=38 | 1 | — | Check availability | View Details |
| 76 | 46180355 RESERVOIR CAP M16X1 | RESERVOIR CAP M16X1 | 1 | — | Check availability | View Details |
| 77 | 46180013 O-ring 12x1 NBR70 | O-ring 12x1 NBR70 | 1 | — | Check availability | |
| 78 | 50180222 O-ring 4x1,5 NBR70 | O-ring 4x1,5 NBR70 | 1 | — | Check availability | |
| 40 | 91010201 Mainspring (59) 45-215 damper | Mainspring (59) 45-215 damper | 0 | — | Check availability | |
| 40 | 91010272 SPRING 215 30 N/MM D=9,00 ORAN | SPRING 215 30 N/MM D=9,00 ORAN | 0 | — | Check availability | |
| 40 | 91010274S SPRING 215 40 N/MM D=9,50 ORG | SPRING 215 40 N/MM D=9,50 ORG | 0 | — | Check availability | View Details |
| 79 | 48600028 Spring (1,7) l7,9 | Spring (1,7) l7,9 | 1 | — | Check availability | |
| 80 | 40540603 Steel ball d3 | Steel ball d3 | 2 | — | Check availability | |
| 81 | 46180006 Adjustment screw slot rebound | Adjustment screw slot rebound | 1 | — | Check availability | |
| 82 | 46180016 Adjustment screw slot rebound | Adjustment screw slot rebound | 1 | — | Check availability | View Details |
| 83 | 50180410 Washer 58,6x73,6x1,5 | Washer 58,6x73,6x1,5 | 2 | — | Check availability | |
| 85 | 46810010 Round-wire snap ring 49x1,5 | Round-wire snap ring 49x1,5 | 1 | — | Check availability | |
| 86 | 46180338 Cover 46,12x6,2 h15,7 | Cover 46,12x6,2 h15,7 | 1 | — | Check availability | |
| 87 | 50180276 Rubber pad 17,2x45,2x40 black | Rubber pad 17,2x45,2x40 black | 1 | — | Check availability | |
| 88 | 50180283 HH locking nut M18x1 h5 WAF24 | HH locking nut M18x1 h5 WAF24 | 1 | — | Check availability | View Details |
| 90 | 46180347 SHOCK ABSORBER BOT. KGW L=54,5 | SHOCK ABSORBER BOT. KGW L=54,5 | 1 | — | Check availability | View Details |
| 98 | 50180466S1 SHOCK ABSORBER FLUID 5 LT 05 | SHOCK ABSORBER FLUID 5 LT 05 | 1 | — | Check availability | View Details |
| 54 | 46810518 SHIM 12X26X0,15 | SHIM 12X26X0,15 | 1 | — | Check availability |
