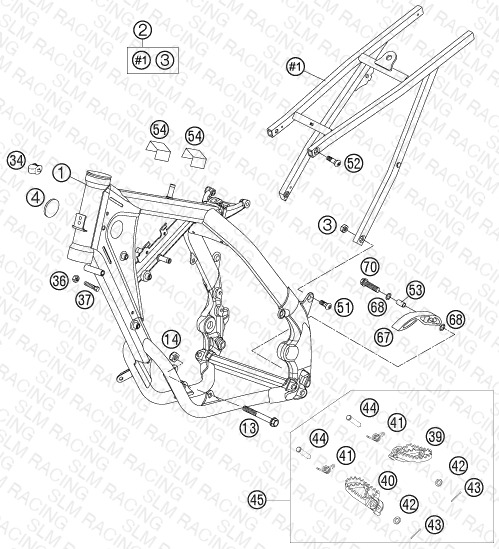

FRAME
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 4700300120030 FRAME CPL. 85 SX ''AA06'' | FRAME CPL. 85 SX ''AA06'' | 1 | — | Obsolete | View Details |
| 2 | 47003002144 SUB FRAME 85 SX 06 | SUB FRAME 85 SX 06 | 1 | — | Obsolete | View Details |
| 3 | 0934080006 HEXAGON NUT DIN 934 M8 | HEXAGON NUT DIN 934 M8 | 2 | $2.99 | Available | 2 |
| 4 | 54606004000 PLUG 37MM | PLUG 37MM | 2 | $2.99 | Available | 2 |
| 13 | 47003013000 ENGINE BRACKET SCREW 85 SX | ENGINE BRACKET SCREW 85 SX | 2 | $9.89 | Available | 2 |
| 14 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 34 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | $4.99 | Available | 1 |
| 36 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 37 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | $3.99 | Available | 2 |
| 39 | 59003040050 FOOT PED L/S EXC SILVER 00 | FOOT PED L/S EXC SILVER 00 | 1 | $51.58 | Available | 1 |
| 40 | 59003041050 FOOT PED R/S EXC SILVER 2000 | FOOT PED R/S EXC SILVER 2000 | 1 | $50.26 | Available | 1 |
| 41 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 42 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 43 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 44 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 45 | 4700304003390 FOOTPEG L.+R. CPL. 85 SX 03 | FOOTPEG L.+R. CPL. 85 SX 03 | 1 | $129.57 | Available | 1 |
| 51 | 54610052000 SPROCKET SCREW-AH M8X20 WS=6 | SPROCKET SCREW-AH M8X20 WS=6 | 2 | $2.99 | Available | 2 |
| 52 | 54510052100 SPROCKET SCREW-AH M8X26 WS=6 | SPROCKET SCREW-AH M8X26 WS=6 | 6 | $3.99 | Available | 6 |
| 53 | 51103053051 BUSHING 8,2X10X20 | BUSHING 8,2X10X20 | 1 | $4.99 | Available | 1 |
| 54 | 58711054050 METAMOLL FOR BATTERY BRACKET | METAMOLL FOR BATTERY BRACKET | 2 | $2.99 | Available | 2 |
| 67 | 51103053000 CHAIN SLIDING PIECE BELOW '97 | CHAIN SLIDING PIECE BELOW '97 | 1 | $10.77 | Available | 1 |
| 68 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | $2.99 | Available | 2 |
| 70 | 0015080303 HH COLLAR SCREW M 8X30 WS=10 | HH COLLAR SCREW M 8X30 WS=10 | 2 | $3.62 | Available | 2 |
