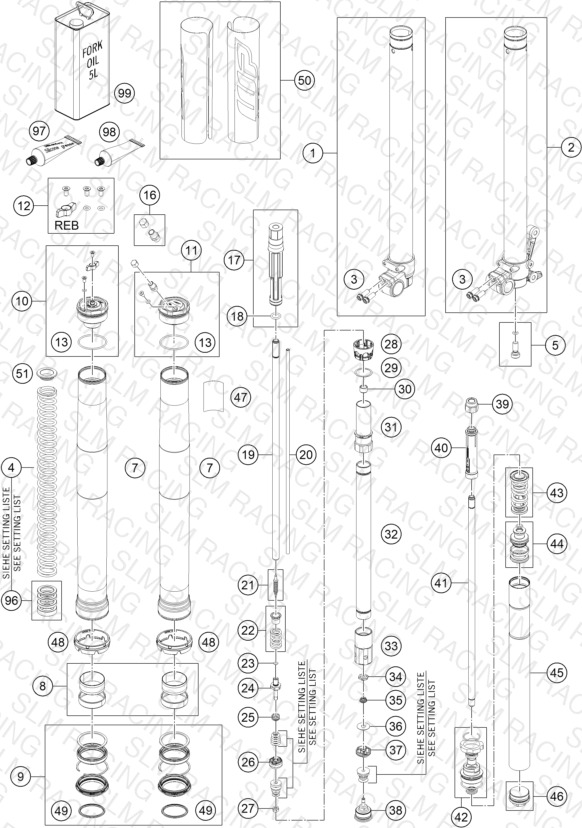

FRONT FORK DISASSEMBLED
Parts (52)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | S534300005S0000 Inner tupe right cpl. | Inner tupe right cpl. | 1 | — | Out of Stock | Notify Me |
| 2 | S534300001S0000 inner tupe left cpl. | inner tupe left cpl. | 1 | — | Available | |
| 3 | 0025080206 HH collar screw M8x20 | HH collar screw M8x20 | 4 | $2.99 | Available | 4 |
| 4 | 95010054 Mainspring (38,5) 4,8-415 fork | Mainspring (38,5) 4,8-415 fork | 1 | — | Obsolete | View Details |
| 5 | S218700000S0000 HS screw M10x23 cpl. | HS screw M10x23 cpl. | 1 | $20.01 | Available | 1 |
| 7 | 43570982 Fork outer tube 44.13x510 dt49 | Fork outer tube 44.13x510 dt49 | 2 | $266.52 | Available | 2 |
| 8 | R14042T GUIDE BUSHING SET | GUIDE BUSHING SET | 1 | $40.03 | Available | 1 |
| 9 | R516T Fork sealing kit 43mm | Fork sealing kit 43mm | 1 | $86.67 | Available | 1 |
| 10 | 43570928S2 Screw cap M46x1,5 cpl. | Screw cap M46x1,5 cpl. | 1 | $116.19 | Available | 1 |
| 11 | 43570927S screw cap M46x1,5 Luft cpl. | screw cap M46x1,5 Luft cpl. | 1 | $98.22 | Available | 1 |
| 12 | RP10021T Adjuster Kit screw cap | Adjuster Kit screw cap | — | $6.70 | Available | 1 |
| 13 | 43570023 O-ring 41x2 NBR70 siliconized | O-ring 41x2 NBR70 siliconized | 2 | $15.94 | Available | 2 |
| 16 | 48601494ST Schrader valve M8x1 cmpl. | Schrader valve M8x1 cmpl. | 1 | $29.39 | Available | 1 |
| 17 | 43570860S Stop 12.4x28.6x167 cmpl. | Stop 12.4x28.6x167 cmpl. | 1 | $80.18 | Available | 1 |
| 18 | 04500003 O-ring 11x2,5 NBR70 PTFE yello | O-ring 11x2,5 NBR70 PTFE yello | 1 | $1.20 | Available | 1 |
| 19 | 48601822 Piston rod 12x483 | Piston rod 12x483 | 1 | $245.07 | Out of Stock | Notify Me |
| 20 | 43570941 Adjustment tube 6x453,6 | Adjustment tube 6x453,6 | 1 | $6.15 | Out of Stock | Notify Me |
| 21 | 48600277S Needle 4,5x43,6 cpl. | Needle 4,5x43,6 cpl. | 1 | $10.55 | Available | 1 |
| 22 | 48600578S Spring (13,9) 37-32 rebound cp | Spring (13,9) 37-32 rebound cp | 1 | $4.83 | Available | 1 |
| 23 | 48600299 O-ring 6x1,2 NBR70 | O-ring 6x1,2 NBR70 | 4 | $1.20 | Available | 4 |
| 24 | 48600576 Tap 6x46 rebound | Tap 6x46 rebound | 2 | $14.99 | Available | 2 |
| 25 | 35480377 Spring (11,7) 1,5-8 valve | Spring (11,7) 1,5-8 valve | 2 | $2.41 | Available | 2 |
| 26 | 48602002S Midvalve piston assembly d23 | Midvalve piston assembly d23 | 1 | $21.66 | Available | 1 |
| 27 | 40540486 Nut M6x0,5 h6,5 WAF10 rebound | Nut M6x0,5 h6,5 WAF10 rebound | 2 | $4.83 | Available | 2 |
| 28 | 43570808 Spring retainer 27,3x59,6x26,5 | Spring retainer 27,3x59,6x26,5 | 1 | $12.20 | Out of Stock | Notify Me |
| 29 | 48601702 Shim 27,5x33x0,3 | Shim 27,5x33x0,3 | 1 | $12.64 | Available | 1 |
| 30 | 48600430 Guide bushing 12x14x10 | Guide bushing 12x14x10 | 2 | $7.58 | Available | 2 |
| 31 | 48601619 Screw sleeve M27x0,8 | Screw sleeve M27x0,8 | 1 | $32.64 | Available | 1 |
| 32 | 48600870 Tube 23x330 | Tube 23x330 | 2 | $86.01 | Available | 2 |
| 33 | 48601935 Adapter 23x28x64 | Adapter 23x28x64 | 1 | $26.39 | Available | 1 |
| 34 | 48600163 Nut valve M6x0,5 h6,5 WAF17 | Nut valve M6x0,5 h6,5 WAF17 | 2 | $3.62 | Available | 2 |
| 35 | 48600202 Spring (8,5) l6,5 valve | Spring (8,5) l6,5 valve | 2 | $2.41 | Available | 2 |
| 36 | 48600061 Shim 8x24x0,40 | Shim 8x24x0,40 | 2 | $2.41 | Available | 2 |
| 37 | 48601934S Piston 6x27,3x9 compression cp | Piston 6x27,3x9 compression cp | 1 | $15.83 | Available | 1 |
| 38 | 48600586S3 Compression, cmpl. | Compression, cmpl. | 1 | $44.32 | Available | 1 |
| 39 | 43570859 Lock nut M12x1 h20 WAF22 | Lock nut M12x1 h20 WAF22 | 1 | $27.82 | Available | 1 |
| 40 | S83880000600000 Stop 12,2x25x106,5 | Stop 12,2x25x106,5 | 1 | $5.69 | Available | 1 |
| 41 | S50120000000000 Piston rod 12x470 | Piston rod 12x470 | 1 | $40.91 | Available | 1 |
| 42 | 48601452S2 Screw sleeve M35,5x0,8 | Screw sleeve M35,5x0,8 | 1 | $75.12 | Available | 1 |
| 43 | 48601820S1 Spring (22) 60-30 rebound cpl. | Spring (22) 60-30 rebound cpl. | 1 | $53.89 | Available | 1 |
| 44 | 43570844S Piston 5x34x31,5 mainpiston Fr | Piston 5x34x31,5 mainpiston Fr | 1 | $77.98 | Available | 1 |
| 45 | 48601571S2 Tube incl. mounting 410mm air | Tube incl. mounting 410mm air | 1 | $270.48 | Available | 1 |
| 46 | 43570845S Adapter M10xM35,5x0,8x25 cpl. | Adapter M10xM35,5x0,8x25 cpl. | 1 | $32.99 | Available | 1 |
| 47 | 52000371 Sticker warning 63x41 | Sticker warning 63x41 | 1 | $8.79 | Available | 1 |
| 48 | 43570915 Fork protection ring 55,1mm | Fork protection ring 55,1mm | 2 | $3.62 | Available | 2 |
| 49 | 43570926 Stroke indicator d43 red | Stroke indicator d43 red | 2 | $4.83 | Available | 2 |
| 50 | 52000229SET Sticker XAXT AER OC 161x214 | Sticker XAXT AER OC 161x214 | 1 | $34.99 | Available | 1 |
| 51 | 43570869 Spring retainer 26,2x40,5x2 | Spring retainer 26,2x40,5x2 | 1 | — | Obsolete | View Details |
| 96 | RP80005 spacer kit fork | spacer kit fork | — | $11.76 | Available | 1 |
| 97 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | — | $40.69 | Available | 1 |
| 98 | 00062010053 special grease AER Fork 400g | special grease AER Fork 400g | — | $99.54 | Available | 1 |
| 99 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | 1 | $175.99 | Available | 1 |
