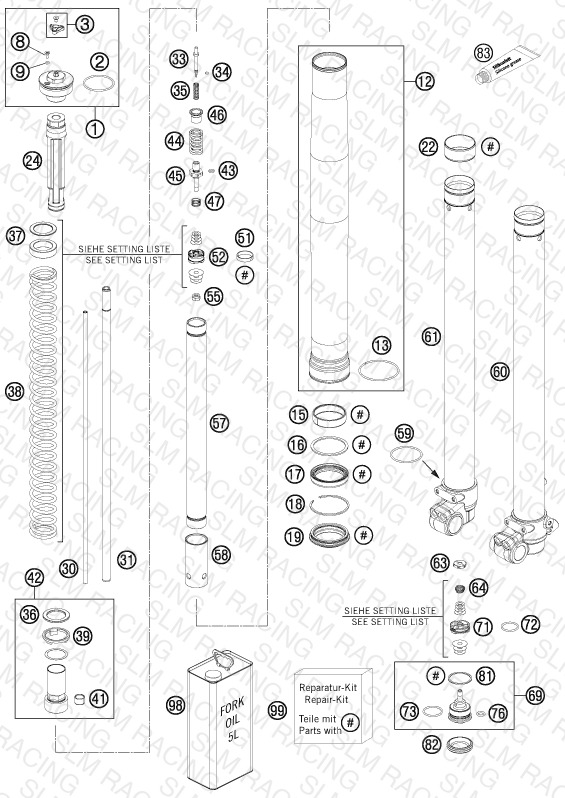

FRONT FORK DISASSEMBLED

← →

Parts (54)

#	Part Number	Description	Qty	Price	Status
1	43570395S1 Screw cap M46x1,5 cpl.	Screw cap M46x1,5 cpl.	2	$423.60	Available	2
2	46811042 O-ring 40x2 NBR70 black	O-ring 40x2 NBR70 black	2	$2.41	Available	2
3	48600812S ADJUSTING KNOB + SCREW	ADJUSTING KNOB + SCREW	2	$6.15	Available	2
8	48600481 Cross countersunk head screw M	Cross countersunk head screw M	2	$2.41	Available	2
9	48600046 O-ring 3x1,5 NBR70	O-ring 3x1,5 NBR70	2	$1.99	Available	2
12	43570614E Fork outer tube 44,14x510 dt49	Fork outer tube 44,14x510 dt49	2	$297.64	Available	2
13	43570099 Round-wire snap ring 53x2	Round-wire snap ring 53x2	2	$31.12	Available	2
15	43570618 Guide bushing 43x47x12	Guide bushing 43x47x12	2	$13.74	Available	2
16	43570092 Supportwasher 45x52,5x1,5	Supportwasher 45x52,5x1,5	2	$23.64	Available	2
17	43570201 Seal ring 43x52,9x9,5	Seal ring 43x52,9x9,5	2	$19.57	Available	2
18	43570008 Snap ring SB53x1,5 acc drawing	Snap ring SB53x1,5 acc drawing	2	$3.62	Available	2
19	43570202 Dirtscarper NOK 43mm	Dirtscarper NOK 43mm	2	$19.68	Available	2
22	43570617 Guide bushing 42x44x20	Guide bushing 42x44x20	2	$13.41	Backorder — Restocking	2
24	43570396S1 STOP L135 D28,6 D12 CPL.	STOP L135 D28,6 D12 CPL.	2	—	Obsolete	View Details
30	48600695 Adjustment tube 6x442	Adjustment tube 6x442	2	$23.09	Out of Stock	Notify Me
31	48600694 Piston rod 12x476	Piston rod 12x476	2	—	Obsolete	View Details
33	48600277 Needle 4,5x43,6	Needle 4,5x43,6	2	$6.48	Available	2
34	48600298 O-ring 2x1,5 NBR70	O-ring 2x1,5 NBR70	2	$1.20	Available	2
35	48600444 Spring (5,4) 4-23 rebound	Spring (5,4) 4-23 rebound	2	$3.62	Available	2
36	43570133 Preload bush 26,5x38x2,5	Preload bush 26,5x38x2,5	2	$3.62	Available	2
37	43570134 Preload bush 26x35x4	Preload bush 26x35x4	2	$3.62	Available	2
37	43570135 Preload bush 26x38x10	Preload bush 26x38x10	2	$4.83	Available	2
37	43570136 Preload bush 26,5x38x1,5	Preload bush 26,5x38x1,5	2	$3.62	Available	2
38	95010049S SPRING 4,4 N/MM SET	SPRING 4,4 N/MM SET	—	$171.59	Available	1
38	95010050S SPRING 4,6 N/MM SET	SPRING 4,6 N/MM SET	1	$171.59	Available	1
38	95010054S SPRING 4,8 N/MM SET	SPRING 4,8 N/MM SET	—	$171.59	Available	1
39	43570131 Spring retainer 33,5x38,2x3	Spring retainer 33,5x38,2x3	2	$21.22	Available	2
41	48600430 Guide bushing 12x14x10	Guide bushing 12x14x10	2	$7.58	Available	2
42	48600830S2 SCREW SLEEVE M27X0,8 CPL.	SCREW SLEEVE M27X0,8 CPL.	2	$42.56	Available	2
43	48600299 O-ring 6x1,2 NBR70	O-ring 6x1,2 NBR70	4	$1.20	Available	4
44	48600511 Spring (13,9) 17-32 rebound	Spring (13,9) 17-32 rebound	2	—	Obsolete	View Details
45	48600513 TAP REBOUND 07	TAP REBOUND 07	2	$18.80	Available	2
46	48600525 Spring retainer 12,3x19x1,25 r	Spring retainer 12,3x19x1,25 r	2	$2.41	Available	2
47	48600382 Spring (11,4) 0,4-8 valve	Spring (11,4) 0,4-8 valve	2	$2.41	Available	2
51	48600455 Piston ring 21x23x5	Piston ring 21x23x5	2	$5.29	Available	2
52	48600575 Piston 6,07x22,7x13	Piston 6,07x22,7x13	2	$17.37	Available	2
55	40540486 Nut M6x0,5 h6,5 WAF10 rebound	Nut M6x0,5 h6,5 WAF10 rebound	2	$4.83	Available	2
57	48600870 Tube 23x330	Tube 23x330	2	$86.01	Available	2
58	48600764 Adapter 23x28x70	Adapter 23x28x70	2	$26.28	Available	2
59	43570023 O-ring 41x2 NBR70 siliconized	O-ring 41x2 NBR70 siliconized	2	$15.94	Available	2
60	43570559S1 AXLE CLAMP L/S + TUBE CPL.	AXLE CLAMP L/S + TUBE CPL.	1	$462.65	Available	1
61	43570558S1 AXLE CLAMP R/S + TUBE CPL.	AXLE CLAMP R/S + TUBE CPL.	1	$729.84	Out of Stock	Notify Me
63	48600163 Nut valve M6x0,5 h6,5 WAF17	Nut valve M6x0,5 h6,5 WAF17	2	$3.62	Available	2
64	48600202 Spring (8,5) l6,5 valve	Spring (8,5) l6,5 valve	2	$2.41	Available	2
69	48600586E Tap compression kpl.	Tap compression kpl.	2	$44.32	Available	2
71	48600047 Piston 6x27,8x9 compression	Piston 6x27,8x9 compression	2	$11.54	Available	2
72	46811499 O-ring 21x2 NBR70	O-ring 21x2 NBR70	4	$1.20	Available	4
73	35480320 O-ring 24x2 NBR70	O-ring 24x2 NBR70	2	$1.20	Available	2
76	48600049 O-ring 8x2 NBR70	O-ring 8x2 NBR70	2	$1.20	Available	2
81	48600004 Copper disc 29,5x33,5x1	Copper disc 29,5x33,5x1	2	$4.83	Available	2
82	48600141 Rubber cap 35x10 NBR80	Rubber cap 35x10 NBR80	2	$4.83	Available	2
83	T511 SILICONE GREASE F. DUST STRI	SILICONE GREASE F. DUST STRI	1	$40.69	Available	1
98	48601166S1 Fork Fluid Viscosity 4.0 5L	Fork Fluid Viscosity 4.0 5L	1	$175.99	Available	1
99	R511 REPAIR-KIT	REPAIR-KIT	1	$162.90	Available	1
