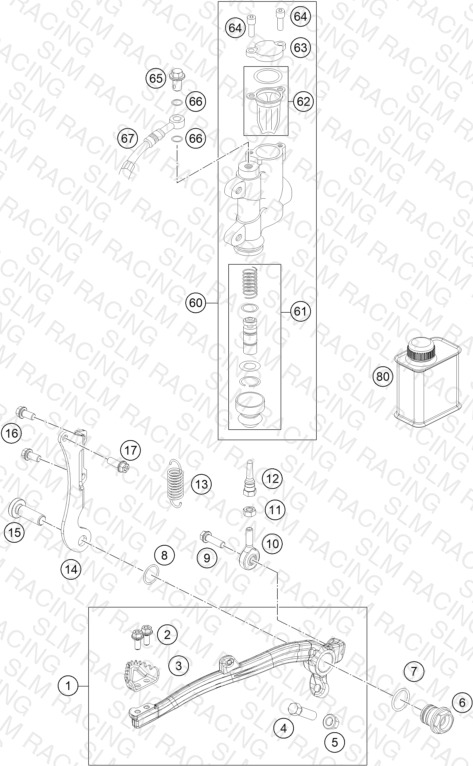

REAR BRAKE CONTROL
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 72013050044 FOOT BRAKE LEVER CPL. 12 | FOOT BRAKE LEVER CPL. 12 | 1 | $110.65 | Available | 1 |
| 2 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 1 | $3.99 | Available | 1 |
| 3 | 54813051000 STEP PLATE FOR BRAKE LEVER | STEP PLATE FOR BRAKE LEVER | 1 | $12.97 | Available | 1 |
| 4 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | $3.99 | Available | 2 |
| 5 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | $9.23 | Available | 1 |
| 6 | 72013053000 NUT FOOT BRAKE LEVER SW19 '12 | NUT FOOT BRAKE LEVER SW19 '12 | 1 | $35.85 | Available | 1 |
| 7 | 0770180020 o-ring 18.00x2.00 NBR70 | o-ring 18.00x2.00 NBR70 | 1 | $2.99 | Available | 1 |
| 8 | 0770125015 O-RING 12,5X1,5 NBR | O-RING 12,5X1,5 NBR | 1 | $2.99 | Available | 1 |
| 9 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $2.99 | Available | 1 |
| 10 | 54813055000 SWIVEL HEAD KA6 03 | SWIVEL HEAD KA6 03 | 1 | $23.42 | Available | 1 |
| 11 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 12 | 46213056000 PUSH ROD | PUSH ROD | 1 | $14.84 | Available | 1 |
| 13 | 54603062000 RETURN SPRING FOR BRAKELEVER | RETURN SPRING FOR BRAKELEVER | 1 | $7.69 | Available | 1 |
| 14 | 72013065000 SUP. PLATE BRAKECYL. REAR 12 | SUP. PLATE BRAKECYL. REAR 12 | 1 | $20.78 | Available | 1 |
| 15 | 0035100309S AH collar screw M10x30 ISA45 | AH collar screw M10x30 ISA45 | 1 | $3.99 | Available | 1 |
| 16 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 3 | $3.99 | Available | 3 |
| 17 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 | SPECIAL SCREW M6X13 WS=8 10.9 | 6 | $2.99 | Available | 6 |
| 60 | 4701306030001S FOOT BRAKE CYL. REAR CPL. D=12 | FOOT BRAKE CYL. REAR CPL. D=12 | 1 | $222.52 | Available | 1 |
| 61 | 47013061100 Rep.set piston, rear D=12 2004 | Rep.set piston, rear D=12 2004 | 1 | $88.76 | Available | 1 |
| 62 | 47013063000 GASKET CYLINDER COVER REAR 03 | GASKET CYLINDER COVER REAR 03 | 1 | $12.64 | Available | 1 |
| 63 | 47013062000 CYLINDER COVER REAR 85 SX 03 | CYLINDER COVER REAR 85 SX 03 | 1 | $10.44 | Available | 1 |
| 64 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 2 | $2.99 | Available | 2 |
| 65 | 47013025000 Hollow screw, brake cylinder 0 | Hollow screw, brake cylinder 0 | 1 | $12.75 | Available | 1 |
| 66 | 0770080019 O-RING 8,00X1,00 FORMULA | O-RING 8,00X1,00 FORMULA | 2 | $2.99 | Available | 2 |
| 67 | 72513071000 BRAKE HOSE REAR L=638MM | BRAKE HOSE REAR L=638MM | 1 | $140.46 | Available | 1 |
| 80 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | $13.99 | Available | 1 |
