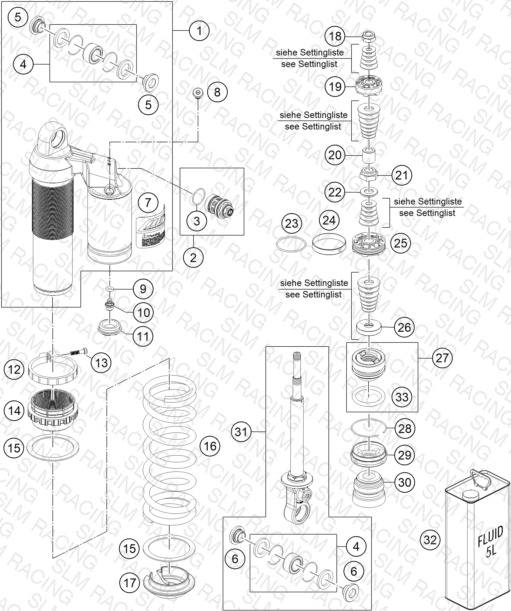

SHOCK ABSORBER DISASSEMBLED
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 18 | 46180356 PISTON ROD NUT M10X1 | PISTON ROD NUT M10X1 | 1 | — | Check availability | |
| 8 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | — | Check availability | |
| 9 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | — | Check availability | View Details |
| 10 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | — | Check availability | |
| 11 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | — | Check availability | |
| 12 | 46181014 Clamp d61 | Clamp d61 | 1 | — | Check availability | |
| 13 | 14460042 HS cylinder-head screw M5x20 D | HS cylinder-head screw M5x20 D | 1 | — | Check availability | View Details |
| 15 | 50180410 Washer 58,6x73,6x1,5 | Washer 58,6x73,6x1,5 | 2 | — | Check availability | |
| 17 | 46180349 Spring retainer 28x56x15 | Spring retainer 28x56x15 | 1 | — | Check availability | |
| 19 | 14460016 Piston 10,05x35,5x13,7 3,5/5,5 | Piston 10,05x35,5x13,7 3,5/5,5 | 1 | — | Check availability | |
| 20 | 46181016 Bush 10x17x10 | Bush 10x17x10 | 1 | — | Check availability | |
| 21 | 46810474 Piston rod nut M12x1 | Piston rod nut M12x1 | 1 | — | Check availability | |
| 22 | 46811258 Washer 12x24x2,5 | Washer 12x24x2,5 | 1 | — | Check availability | |
| 23 | 46810035 O-ring 37x,82x1,78 Viton70 gre | O-ring 37x,82x1,78 Viton70 gre | 1 | — | Check availability | |
| 24 | 46811206 Piston ring 43,95x45,95x8 | Piston ring 43,95x45,95x8 | 1 | — | Check availability | |
| 16 | 91010170S SPRING 55 N/MM | SPRING 55 N/MM | 0 | — | Check availability | |
| 14 | 46181013 Spring retainer M55x2x71x35 pl | Spring retainer M55x2x71x35 pl | 1 | — | Check availability | |
| 16 | 91010324S SPRING 55/63/71 N/MM SET | SPRING 55/63/71 N/MM SET | 1 | — | Check availability | |
| 16 | 91010323S SPRING 58/66/74 N/MM SET | SPRING 58/66/74 N/MM SET | 0 | — | Check availability | |
| 1 | 46181018S1 MONOSHOCK CASE CPL. | MONOSHOCK CASE CPL. | 1 | — | Check availability | |
| 2 | 50180213S20 DCC-COMPR.DAMP.CONTROL CPL. 13 | DCC-COMPR.DAMP.CONTROL CPL. 13 | 1 | — | Check availability | |
| 3 | 50180218 O-ring 25x1,5 Viton70 | O-ring 25x1,5 Viton70 | 1 | — | Check availability | |
| 5 | 46181105 Distance bush 12x15/18,5/24,5x | Distance bush 12x15/18,5/24,5x | 2 | — | Check availability | |
| 6 | 46180007 Distance bush 12x15/18/24,5x10 | Distance bush 12x15/18/24,5x10 | 2 | — | Check availability | |
| 7 | 52000087 Sticker WP warning 47x63 | Sticker WP warning 47x63 | 1 | — | Check availability | View Details |
| 25 | 46810560 Piston 12,05x45,5x12,6 4,5/7 | Piston 12,05x45,5x12,6 4,5/7 | 1 | — | Check availability | |
| 26 | 14460017 Rebound disc 12x35x4 h0 | Rebound disc 12x35x4 h0 | 1 | — | Check availability | |
| 27 | 46180669S Sealholder 46x28 cpl. | Sealholder 46x28 cpl. | 1 | — | Check availability | View Details |
| 28 | 46810010 Round-wire snap ring 49x1,5 | Round-wire snap ring 49x1,5 | 1 | — | Check availability | |
| 29 | 46180338 Cover 46,12x6,2 h15,7 | Cover 46,12x6,2 h15,7 | 1 | — | Check availability | |
| 30 | 50180276 Rubber pad 17,2x45,2x40 black | Rubber pad 17,2x45,2x40 black | 1 | — | Check availability | |
| 31 | 46181010S1 MONOSHOCK LOWER PART | MONOSHOCK LOWER PART | 1 | — | Check availability | |
| 32 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | — | Check availability | |
| 4 | R12012 Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 2 | — | Check availability | View Details |
| 33 | 14460004 O-ring 36x5 NBR70 | O-ring 36x5 NBR70 | 1 | — | Check availability |
