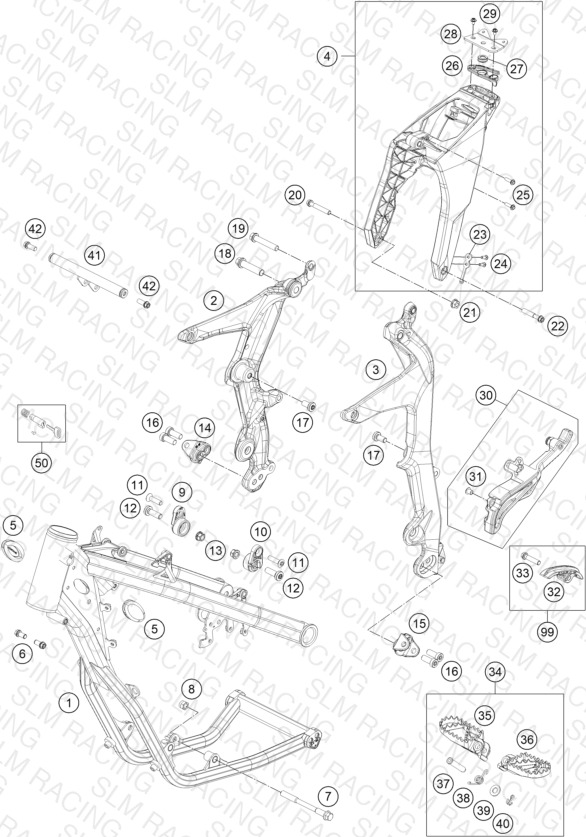

FRAME
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 7250300100004 FRAME ''725N1'' 20 | FRAME ''725N1'' 20 | 1 | — | Obsolete | View Details |
| 2 | 70003001152 CONNECTION BRACKET R/S 14 | CONNECTION BRACKET R/S 14 | 1 | $350.56 | Available | 1 |
| 3 | 70003101051 CONNECTION BRACKET L. VMT | CONNECTION BRACKET L. VMT | 1 | $388.40 | Available | 1 |
| 4 | 70003002033 SUBFRAME CPL. | SUBFRAME CPL. | 1 | $336.04 | Available | 1 |
| 5 | 58404041000 CLOSING COVER SWINGARM SM 03 | CLOSING COVER SWINGARM SM 03 | 2 | $8.24 | Available | 2 |
| 6 | 0025080166S HH collar screw M8x16 TX40 SL | HH collar screw M8x16 TX40 SL | 2 | $3.99 | Available | 2 |
| 7 | 59003013000 Enginebrac. screw M10X123 WS=1 | Enginebrac. screw M10X123 WS=1 | 2 | $11.10 | Available | 2 |
| 8 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 9 | 72007015000 FUEL TANK CARRIER R/S | FUEL TANK CARRIER R/S | 1 | $11.54 | Available | 1 |
| 10 | 72007014000 FUEL TANK CARRIER L/S | FUEL TANK CARRIER L/S | 1 | $11.54 | Available | 1 |
| 11 | 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 | COUNTER-SUNK SCREW ISA45 M8X30 | 1 | $1.99 | Available | 1 |
| 12 | 0035100309S AH collar screw M10x30 ISA45 | AH collar screw M10x30 ISA45 | 1 | $3.99 | Available | 1 |
| 13 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 14 | 70003039100 FOOTREST MOUNTING R/S '12 | FOOTREST MOUNTING R/S '12 | 1 | $53.34 | Available | 1 |
| 15 | 70003038100 FOOTREST MOUNTING L/S '12 | FOOTREST MOUNTING L/S '12 | 1 | $46.19 | Out of Stock | Notify Me |
| 16 | 0032100256S AH collar screw M10x25 ISA45 | AH collar screw M10x25 ISA45 | 2 | $4.99 | Available | 2 |
| 17 | 0035100209 AH collar screw M10x20 ISA45 | AH collar screw M10x20 ISA45 | 2 | $9.23 | Available | 2 |
| 18 | 70004016000 MONOSHOCK SCREW TOP M12X80 | MONOSHOCK SCREW TOP M12X80 | 1 | $34.64 | Available | 1 |
| 19 | 69004094000 HH COLLAR SCREW M10X56 WS13 08 | HH COLLAR SCREW M10X56 WS13 08 | 1 | $6.15 | Available | 1 |
| 20 | 0025080506 HH collar screw M8x50 TX40 | HH collar screw M8x50 TX40 | 4 | $3.62 | Available | 4 |
| 21 | 06923080003 Hex. nut DIN EN 1661 M8 WS13 | Hex. nut DIN EN 1661 M8 WS13 | 6 | $2.99 | Available | 6 |
| 22 | 0025080456 HH collar screw M8x45 TX40 | HH collar screw M8x45 TX40 | 1 | $4.99 | Available | 1 |
| 23 | 70003024050 SIDE STAND SPRING PLATE 12 | SIDE STAND SPRING PLATE 12 | 1 | $17.26 | Available | 1 |
| 24 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 2 | $2.99 | Available | 2 |
| 25 | 0016070253 PLASTIC SCREW K7X25 PT1447 | PLASTIC SCREW K7X25 PT1447 | 2 | $3.99 | Available | 2 |
| 26 | 70007039000 SEAT LOCKING MECHANISM | SEAT LOCKING MECHANISM | 1 | $18.14 | Available | 1 |
| 27 | 70007039060 BUSHING QUICK LOCK | BUSHING QUICK LOCK | 1 | $13.85 | Available | 1 |
| 28 | 70007039050 BRACKET QUICK LOCK | BRACKET QUICK LOCK | 1 | $38.38 | Available | 1 |
| 29 | 0024060106 HH COLLAR SCREW M6X10 TX30 | HH COLLAR SCREW M6X10 TX30 | 1 | $3.99 | Available | 1 |
| 30 | 72503096000 SPROCKET COVER CPL. | SPROCKET COVER CPL. | 1 | $33.65 | Available | 1 |
| 31 | 45239060050 COLLAR BUSHING 6,3X8X13X9,5 | COLLAR BUSHING 6,3X8X13X9,5 | 2 | $6.15 | Available | 2 |
| 32 | 70003053000 CHAIN SLIDING PIECE BELOW CPL. | CHAIN SLIDING PIECE BELOW CPL. | 1 | $6.15 | Available | 1 |
| 33 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 10 | $4.83 | Available | 10 |
| 34 | 78003040033 FOOTREST L/S + R/S CPL. 09 | FOOTREST L/S + R/S CPL. 09 | 1 | $136.50 | Available | 1 |
| 35 | 78003041050 FOOTREST R/S 08 | FOOTREST R/S 08 | 1 | $51.36 | Available | 1 |
| 36 | 78003040050 FOOTREST L/S 08 | FOOTREST L/S 08 | 1 | $51.36 | Available | 1 |
| 37 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 38 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 39 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 40 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 41 | 72503013000 ENGINE BRACKET | ENGINE BRACKET | 1 | — | Obsolete | View Details |
| 42 | 0025080206S HH collar screw M8x20 TX40 SL | HH collar screw M8x20 TX40 SL | 2 | $2.99 | Available | 2 |
| 50 | 78003035000 STEERING HEAD LOCK 08 | STEERING HEAD LOCK 08 | 1 | $24.63 | Available | 1 |
| 99 | 70003053010 CHAIN SLIDING KIT BELOW | CHAIN SLIDING KIT BELOW | — | $10.77 | Available | 1 |
