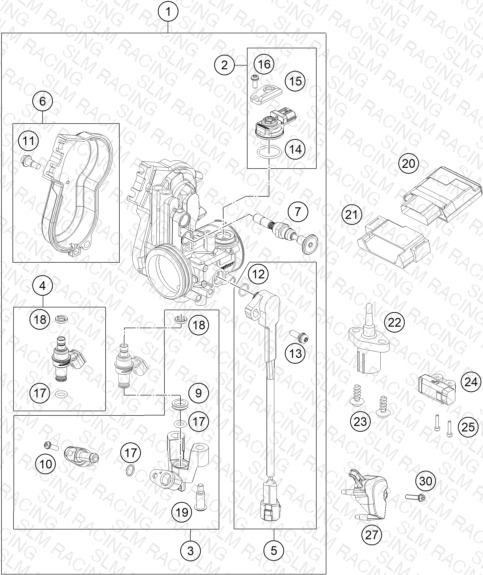

THROTTLE BODY
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 9 | 77741023030 SEAL RING | SEAL RING | 1 | — | Check availability | |
| 10 | 75041013010 SCREW SHOULDER | SCREW SHOULDER | 1 | — | Check availability | |
| 1 | 76441001000 THROTTLE BODY | THROTTLE BODY | 1 | — | Check availability | |
| 2 | 75041085044 MAP SENSOR CPL. 07 | MAP SENSOR CPL. 07 | 1 | — | Check availability | |
| 3 | 77741013044 FUEL RAIL CPL. | FUEL RAIL CPL. | 1 | — | Check availability | |
| 4 | 77741023044 INJECTOR KIT CPL. | INJECTOR KIT CPL. | 1 | — | Check availability | |
| 5 | 77741077044 TPS CPL. | TPS CPL. | 1 | — | Check availability | |
| 6 | 81241056044 THROTTLE COVER CPL. 09 | THROTTLE COVER CPL. 09 | 1 | — | Check availability | |
| 7 | 81241060000 STARTER VALVE COMP. | STARTER VALVE COMP. | 1 | — | Check availability | |
| 11 | 81241056020 SPECIAL SCREW AH | SPECIAL SCREW AH | 2 | — | Check availability | |
| 12 | 61041077010 O-RING THROTTLE POS. SENSOR | O-RING THROTTLE POS. SENSOR | 1 | — | Check availability | |
| 13 | 81241077030 SPECIAL SCREW | SPECIAL SCREW | 1 | — | Check availability | |
| 14 | 75041085010 O-RING | O-RING | 1 | — | Check availability | |
| 15 | 77741085020 PLATE | PLATE | 1 | — | Check availability | |
| 16 | 81241085030 SPECIAL SCREW | SPECIAL SCREW | 1 | — | Check availability | |
| 17 | 75041023020 O-RING 7,2x2,2 | O-RING 7,2x2,2 | 2 | — | Check availability | |
| 18 | 75041023010 SEAL RING | SEAL RING | 1 | — | Check availability | |
| 19 | 75041013060 SCREW SHOULDER | SCREW SHOULDER | 2 | — | Check availability | |
| 20 | 77741031000 ELECTRONIC CONTROL UNIT | ELECTRONIC CONTROL UNIT | 1 | — | Check availability | |
| 21 | 77741031050 RUBBER BRACKET ECU | RUBBER BRACKET ECU | 1 | — | Check availability | |
| 22 | 61041080000 AMBIENT-AIR TEMPERATURE SENSOR | AMBIENT-AIR TEMPERATURE SENSOR | 1 | — | Check availability | |
| 23 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 2 | — | Check availability | |
| 24 | 61041088000 ROLLOVER SENSOR 05 | ROLLOVER SENSOR 05 | 1 | — | Check availability | |
| 25 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | — | Check availability | |
| 27 | 77741077050 PROTECTION CAP TPS | PROTECTION CAP TPS | 1 | — | Check availability | |
| 30 | 0025050256 HH COLLAR SCREW M5X25 ISA30 | HH COLLAR SCREW M5X25 ISA30 | 1 | — | Check availability |
