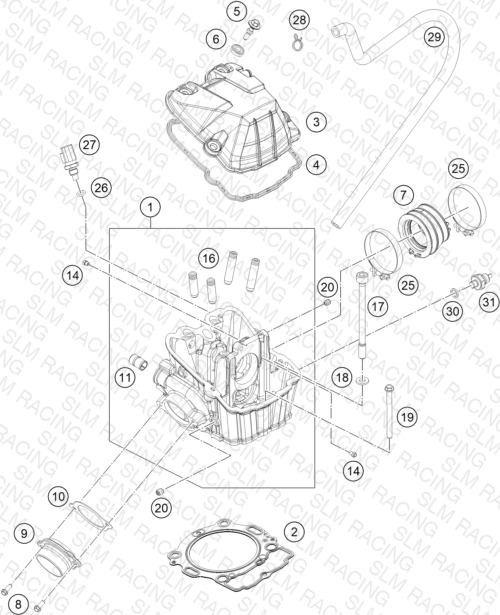

CYLINDER HEAD
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76436020000 CYLINDER HEAD CPL. | CYLINDER HEAD CPL. | 1 | — | Check availability | |
| 2 | 78930036010 CYLINDER HEAD GASKET S=1.0 | CYLINDER HEAD GASKET S=1.0 | 1 | — | Check availability | |
| 3 | 7803605200033 VALVE COVER BLACK MATT | VALVE COVER BLACK MATT | 1 | — | Check availability | |
| 4 | 78036053100 VALVE COVER GASKET | VALVE COVER GASKET | 1 | — | Check availability | |
| 5 | 78036054100 VALVE COVER SCREW | VALVE COVER SCREW | 4 | — | Check availability | |
| 6 | 75036052010 decoupling element | decoupling element | 4 | — | Check availability | |
| 7 | 76436044000 RUBBER BOOT | RUBBER BOOT | 1 | — | Check availability | |
| 8 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 2 | — | Check availability | |
| 9 | 76436039000 EXHAUST FLANGE | EXHAUST FLANGE | 1 | — | Check availability | |
| 10 | 78036041000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 1 | — | Check availability | View Details |
| 11 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | — | Check availability | |
| 14 | 60030063070 oil jet 70 M5 | oil jet 70 M5 | 2 | — | Check availability | |
| 16 | 76436025001 VALVE GUIDE INTAKE | VALVE GUIDE INTAKE | 4 | — | Check availability | |
| 17 | 78030044000 CYL. HEAD SCREW M10X1,25 L=125 | CYL. HEAD SCREW M10X1,25 L=125 | 4 | — | Check availability | View Details |
| 18 | 77336089010 washer 19x10.5x2.5 | washer 19x10.5x2.5 | 4 | — | Check availability | |
| 19 | 0025060706 HH COLLAR SCREW M6X70 TX30 | HH COLLAR SCREW M6X70 TX30 | 1 | — | Check availability | |
| 20 | 59030296000 SCREW PLUG | SCREW PLUG | 3 | — | Check availability | |
| 25 | 61236048000 hose clamp Gemi 66 | hose clamp Gemi 66 | 2 | — | Check availability | |
| 26 | 0770100020 o-ring 10.00x2.00 silicone | o-ring 10.00x2.00 silicone | 1 | — | Check availability | |
| 27 | 60011252000 TEMPERAT.-SENSOR WATER LC8 02 | TEMPERAT.-SENSOR WATER LC8 02 | 1 | — | Check availability | |
| 28 | 58431082300 CLAMP YDNAC 10173 (18MM) | CLAMP YDNAC 10173 (18MM) | 1 | — | Check availability | |
| 29 | 77330086100 ENGINE BREATHER TUBE | ENGINE BREATHER TUBE | 1 | — | Check availability | |
| 31 | 60038091100 OIL-PRESSURE SWITCH LC8 04 | OIL-PRESSURE SWITCH LC8 04 | 1 | — | Check availability | |
| 30 | 0603101420 COPPER GASKET 10,2X14X2 MM 01 | COPPER GASKET 10,2X14X2 MM 01 | 1 | — | Check availability |
