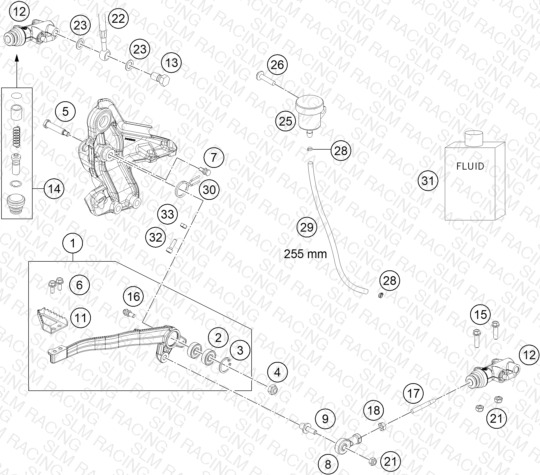

REAR BRAKE CONTROL
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76413150044 FOOT BRAKE LEVER CPL. | FOOT BRAKE LEVER CPL. | 1 | — | Check availability | |
| 2 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | — | Check availability | |
| 3 | 0472022100 CIRCLIP DIN0472-22X1 | CIRCLIP DIN0472-22X1 | 1 | — | Check availability | |
| 4 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 1 | — | Check availability | |
| 5 | 76413050030 BOLT | BOLT | 1 | — | Check availability | |
| 6 | 0015050123 HH COLLAR SCREW M 5X12 WS=8 | HH COLLAR SCREW M 5X12 WS=8 | 2 | — | Check availability | View Details |
| 8 | 54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV. | SWIVEL HEAD M6 FOOT BRAKE LEV. | 1 | — | Check availability | |
| 9 | 76413050020 THREADED BOLT | THREADED BOLT | 1 | — | Check availability | |
| 11 | 76213051010 BRAKE LEVER PEDAL LARGE RALLY | BRAKE LEVER PEDAL LARGE RALLY | 1 | — | Check availability | |
| 12 | 76213060000 FOOT BRAKE CYLINDER REAR | FOOT BRAKE CYLINDER REAR | 1 | — | Check availability | |
| 13 | 54813020100 banjo bolt M10x1x19 black | banjo bolt M10x1x19 black | 1 | — | Check availability | |
| 14 | 54513150000 REPAIR KIT PISTON 13MM | REPAIR KIT PISTON 13MM | 1 | — | Check availability | |
| 15 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 2 | — | Check availability | |
| 17 | 76203068000 PUSH ROD MAIN BRAKE CYLINDER | PUSH ROD MAIN BRAKE CYLINDER | 1 | — | Check availability | |
| 18 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 21 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 3 | — | Check availability | |
| 22 | 76213070000 BRAKE HOSE REAR | BRAKE HOSE REAR | 1 | — | Check availability | |
| 23 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | — | Check availability | |
| 24 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 4 | — | Check availability | |
| 25 | 54513030044 BRAKE FLUID RESERVOIR '89 | BRAKE FLUID RESERVOIR '89 | 1 | — | Check availability | |
| 26 | 0024060106 HH COLLAR SCREW M6X10 TX30 | HH COLLAR SCREW M6X10 TX30 | 2 | — | Check availability | |
| 28 | 58007017000 YDNAC-clamp 10101 (10.4MM) | YDNAC-clamp 10101 (10.4MM) | 2 | — | Check availability | |
| 29 | 76213061000 HOSE FOR BRAKE FLUID RESERVOIR | HOSE FOR BRAKE FLUID RESERVOIR | 1 | — | Check availability | |
| 31 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | — | Check availability | |
| 32 | 0025050256 HH COLLAR SCREW M5X25 ISA30 | HH COLLAR SCREW M5X25 ISA30 | 1 | — | Check availability | |
| 33 | 0934050003 HEXAGON NUT DIN0934-M 5 | HEXAGON NUT DIN0934-M 5 | 1 | — | Check availability | |
| 16 | 76413050110 STOP PIN | STOP PIN | 1 | — | Check availability | |
| 30 | 61234014000 RETURNSPRING 2MM | RETURNSPRING 2MM | 1 | — | Check availability | |
| 7 | 76413050010 Mechanical Stop | Mechanical Stop | 1 | — | Check availability |
